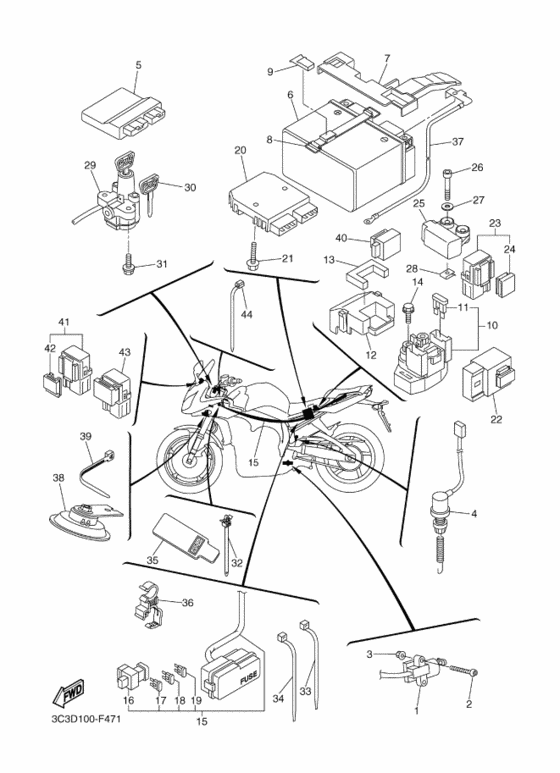

Electrical 2 Diagram Yamaha FZ1 FZ1 FAZER (S-TYPE)
- Year
- 2010
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 1CA4
- Sales region
- Europe (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZ1-S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VS-82566-61-00 Switch, Side Stand |
5VS-82566-61-00 |
from US $72.67 |
||
| replacement | |||||
|
1
|
1
5VS-82566-62-00 Switch, Side Stand |
5VS-82566-62-00 |
US $90.67 |
||
|
2
|
2
92012-05030-00 Bolt, Button Head |
92012-05030-00 |
from US $1.56 |
||
|
3
|
3
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
4
|
4
2D1-82530-00-00 Stop Switch Assy |
2D1-82530-00-00 |
from US $40.48 |
||
|
5
|
5
3C3-8591A-70-00 Engine Control Unit Assy |
3C3-8591A-70-00 |
from US $1,042.95 |
||
|
6
|
6
2D1-82100-00-00
Ytz14S Yuasa Batter
|
2D1-82100-00-00 |
— | ||
| replacement | |||||
|
6
|
6
YTZ-14S00-00-00 Bat Ytz14S (Ptz14S) Yu |
YTZ-14S00-00-00 |
US $332.87 |
||
|
7
|
7
2D1-82129-00-00 Cover, Battery |
2D1-82129-00-00 |
from US $9.07 |
||
|
8
|
8
2D1-82131-00-00 Band, Battery |
2D1-82131-00-00 |
from US $5.81 |
||
|
9
|
9
5YU-2162A-00-00 Hook |
5YU-2162A-00-00 |
from US $3.12 |
||
|
10
|
10
2C0-81940-00-00 Starter Relay Assy (Rc19-054) |
2C0-81940-00-00 |
from US $90.62 |
||
|
11
|
11
36Y-82151-00-00 Fuse (15A-Blue)15A-BL |
36Y-82151-00-00 |
from US $2.86 |
||
|
12
|
12
5SL-82119-10-00 Cover, Lead Wire |
5SL-82119-10-00 |
from US $4.39 |
||
|
13
|
13
2D1-82176-00-00 Damper |
2D1-82176-00-00 |
from US $1.84 |
||
|
14
|
14
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.36 |
||
|
15
|
15
3C3-82590-10-00 Wire Harness Assy |
3C3-82590-10-00 |
from US $517.88 |
||
|
16
|
16
5JW-82151-10-00 Fuse (50A)50A |
5JW-82151-10-00 |
from US $10.27 |
||
|
17
|
17
5JJ-82151-70-00 Fuse (25A-Bl)25A-BL |
5JJ-82151-70-00 |
from US $2.83 |
||
|
18
|
18
5JJ-82151-10-00 Fuse (15A-Bl)15A-BL |
5JJ-82151-10-00 |
US $3.05 |
||
| replacement | |||||
|
18
|
18
67F-82151-50-00 Fuse (15A)15A-BL |
67F-82151-50-00 |
from US $1.90 |
||
|
19
|
19
5JJ-82151-30-00
Fuse (10A-Bl)
10A-BL |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
19
|
19
67F-82151-40-00 Fuse (10A)10A-BL |
67F-82151-40-00 |
from US $1.90 |
||
|
20
|
20
1D7-81960-00-00
Rectifier & Regulator Assy
|
1D7-81960-00-00 |
— | ||
| replacement | |||||
|
20
|
20
1D7-81960-01-00 Rectifier & Regulator Assy |
1D7-81960-01-00 |
from US $242.47 |
||
|
21
|
21
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
| replacement | |||||
|
21
|
21
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
22
|
22
5VK-81950-40-00
Relay Assy (5Vk-40)
|
5VK-81950-40-00 |
— | ||
| replacements | |||||
|
22
|
22
5VK-81950-41-00 Relay Assy |
5VK-81950-41-00 |
from US $65.89 |
||
|
22
|
22
5VK-81950-42-00 RELAY ASSY |
5VK-81950-42-00 |
from US $52.99 |
||
|
23
|
23
5JJ-81950-20-00 Relay Assy (5JJ-20) |
5JJ-81950-20-00 |
from US $26.78 |
||
|
24
|
24
5JJ-81952-00-00 Holder, Relay |
5JJ-81952-00-00 |
from US $5.97 |
||
|
25
|
25
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
25
|
25
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
from US $93.26 |
||
|
26
|
26
91312-04025-00 Bolt |
91312-04025-00 |
from US $1.42 |
||
|
27
|
27
90201-04030-00 Washer, Plate |
90201-04030-00 |
from US $1.70 |
||
|
28
|
28
90183-04039-00 Nut, Spring |
90183-04039-00 |
from US $1.98 |
||
|
29
|
29
3C3-82501-10-00 Main Switch Steering Lock |
3C3-82501-10-00 |
from US $219.67 |
||
|
30
|
30
4BH-82511-09-00 Blank KeyAP |
4BH-82511-09-00 |
from US $12.35 |
||
|
31
|
31
90109-08195-00 Bolt |
90109-08195-00 |
from US $1.81 |
||
| replacement | |||||
|
31
|
31
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.81 |
||
|
32
|
32
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.39 |
||
| replacement | |||||
|
32
|
32
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
33
|
33
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
34
|
34
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
34
|
34
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
35
|
35
2D1-82589-00-00 Protecter, Wire Harness |
2D1-82589-00-00 |
US $11.05 |
||
|
36
|
36
90464-12012-00 Clamp |
90464-12012-00 |
from US $2.55 |
||
|
37
|
37
2D1-82116-00-00 Wire, Minus Lead |
2D1-82116-00-00 |
from US $24.51 |
||
|
38
|
38
2D1-83371-00-00 Horn |
2D1-83371-00-00 |
from US $42.69 |
||
|
39
|
39
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
40
|
40
4MY-83350-01-00 Flasher Relay Assy |
4MY-83350-01-00 |
from US $51.12 |
||
| replacements | |||||
|
40
|
40
4MY-83350-02-00 Flasher Relay Assy |
4MY-83350-02-00 |
from US $51.12 |
||
|
40
|
40
4MY-83350-03-00 Flasher Relay Assy |
4MY-83350-03-00 |
US $58.16 |
||
|
41
|
41
5EA-81950-20-00 Relay Assy (5Ea-02) |
5EA-81950-20-00 |
from US $26.63 |
||
|
42
|
42
5EA-81952-00-00 Holder, Relay |
5EA-81952-00-00 |
from US $4.86 |
||
|
43
|
43
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
|
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
43
|
43
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52) |
5DM-81950-01-00 |
from US $22.20 |
||
|
44
|
44
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
44
|
44
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
