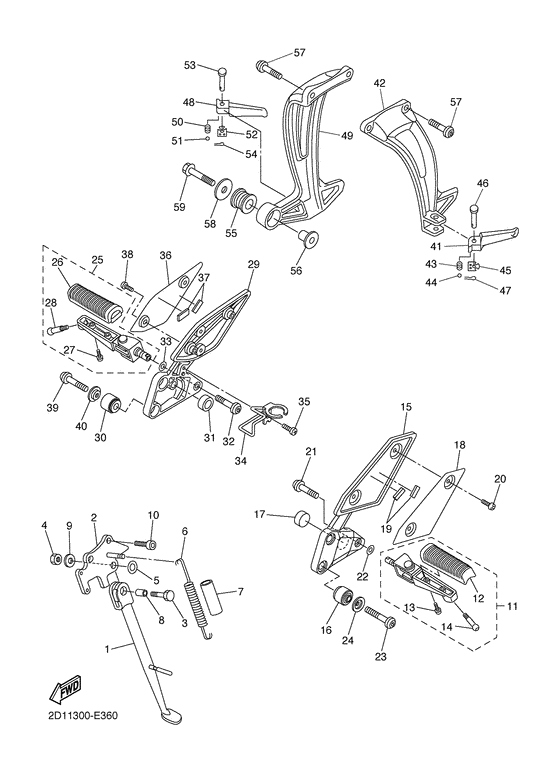

Support & repose pied Diagram Yamaha FZ1 FZ1 FAZER (Naked)
- Year
- 2006
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2D12
- Sales region
- France (010)
- Engine Capacity
- 1000
- Model
- FZ1-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2D1-27311-00-00 Stand, Side |
2D1-27311-00-00 |
from US $65.76 |
||
|
02
|
02
2D1-27321-00-00 Bracket, Side Stand |
2D1-27321-00-00 |
from US $58.99 |
||
|
03
|
03
90101-10006-00 Bolt |
90101-10006-00 |
from US $5.90 |
||
| replacement | |||||
|
03
|
03
90101-10025-00 Bolt |
90101-10025-00 |
from US $6.52 |
||
|
04
|
04
90185-10037-00 Nut, Self-Locking |
90185-10037-00 |
from US $4.16 |
||
|
05
|
05
90201-16020-00 Washer, Plate |
90201-16020-00 |
from US $2.69 |
||
| replacement | |||||
|
05
|
05
90201-16027-00 Washer, Plate |
90201-16027-00 |
from US $2.86 |
||
|
06
|
06
90506-18008-00 Spring, Tension |
90506-18008-00 |
from US $8.50 |
||
|
07
|
07
90445-19002-00 Hose (L60) |
90445-19002-00 |
from US $4.11 |
||
|
08
|
08
90387-10050-00 Collar |
90387-10050-00 |
from US $8.22 |
||
|
09
|
09
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.66 |
||
|
10
|
10
90110-10010-00 Bolt |
90110-10010-00 |
from US $4.25 |
||
| replacement | |||||
|
10
|
10
91317-10030-00 Bolt, Socket |
91317-10030-00 |
from US $4.25 |
||
|
11
|
11
2D1-27410-00-00 Front Footrest Assy (Left) |
2D1-27410-00-00 |
from US $77.23 |
||
|
12
|
12
4BP-27413-00-00 Cover, Footrest |
4BP-27413-00-00 |
from US $20.81 |
||
|
13
|
13
901-57050-25-00
Screw, Pan Head
|
901-57050-25-00 |
— | ||
| replacements | |||||
|
13
|
13
985-80050-14-00
Screw, Pan Head
|
985-80050-14-00 |
— | ||
|
13
|
13
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
14
|
14
90109-083E2-00 Bolt |
90109-083E2-00 |
from US $3.40 |
||
| replacement | |||||
|
14
|
14
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.74 |
||
|
15
|
15
2D1-27442-00-00 Bracket 2 |
2D1-27442-00-00 |
from US $105.55 |
||
| replacement | |||||
|
15
|
15
2D1-27442-01-00 Bracket 2 |
2D1-27442-01-00 |
from US $105.55 |
||
|
16
|
16
1NL-27424-00-00 Damper, Footrest 2 |
1NL-27424-00-00 |
from US $12.51 |
||
|
17
|
17
5VX-27114-00-00 Stopper, Main Stand |
5VX-27114-00-00 |
from US $1.70 |
||
|
18
|
18
2D1-27486-00-00 Cover 1 |
2D1-27486-00-00 |
from US $23.58 |
||
|
19
|
19
1HX-27415-00-00 Plate, Damper |
1HX-27415-00-00 |
from US $1.70 |
||
|
20
|
20
90111-05015-00 Bolt, Button Head |
90111-05015-00 |
from US $2.13 |
||
| replacement | |||||
|
20
|
20
92014-05008-00 Bolt, Button Head |
92014-05008-00 |
from US $2.13 |
||
|
21
|
21
901-09103-A9-00
Bolt,hex. Socket But
|
901-09103-A9-00 |
— | ||
| replacement | |||||
|
21
|
21
901-11100-17-00 Bolt,hex. Socket Button |
901-11100-17-00 |
from US $8.74 |
||
|
22
|
22
90206-17084-00 Washer, Wave |
90206-17084-00 |
from US $1.81 |
||
|
23
|
23
90110-08071-00 Bolt, Hexagon Socket Head |
90110-08071-00 |
from US $4.72 |
||
|
24
|
24
90209-08295-00 Washer |
90209-08295-00 |
from US $7.63 |
||
|
25
|
25
2D1-27420-00-00 Front Footrest Assy (Right) |
2D1-27420-00-00 |
from US $77.23 |
||
|
26
|
26
4BP-27413-00-00 Cover, Footrest |
4BP-27413-00-00 |
from US $20.81 |
||
|
27
|
27
901-57050-25-00
Screw, Pan Head
|
901-57050-25-00 |
— | ||
| replacements | |||||
|
27
|
27
985-80050-14-00
Screw, Pan Head
|
985-80050-14-00 |
— | ||
|
27
|
27
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
28
|
28
90109-083E2-00 Bolt |
90109-083E2-00 |
from US $3.40 |
||
| replacement | |||||
|
28
|
28
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.74 |
||
|
29
|
29
2D1-27443-00-00 Bracket 3 |
2D1-27443-00-00 |
from US $105.55 |
||
| replacement | |||||
|
29
|
29
2D1-27443-01-00 Bracket 3 |
2D1-27443-01-00 |
from US $105.55 |
||
|
30
|
30
1NL-27424-00-00 Damper, Footrest 2 |
1NL-27424-00-00 |
from US $12.51 |
||
|
31
|
31
5VX-27114-00-00 Stopper, Main Stand |
5VX-27114-00-00 |
from US $1.70 |
||
|
32
|
32
901-09103-A9-00
Bolt,hex. Socket But
|
901-09103-A9-00 |
— | ||
| replacement | |||||
|
32
|
32
901-11100-17-00 Bolt,hex. Socket Button |
901-11100-17-00 |
from US $8.74 |
||
|
33
|
33
90206-17084-00 Washer, Wave |
90206-17084-00 |
from US $1.81 |
||
|
34
|
34
2D1-2144G-00-00 Stay, Stop Switch |
2D1-2144G-00-00 |
from US $17 |
||
|
35
|
35
98507-06008-00 Screw |
98507-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
35
|
35
98517-06008-00 Screw |
98517-06008-00 |
from US $1.70 |
||
|
36
|
36
2D1-27487-00-00 Cover 2 |
2D1-27487-00-00 |
from US $23.58 |
||
|
37
|
37
1HX-27415-00-00 Plate, Damper |
1HX-27415-00-00 |
from US $1.70 |
||
|
38
|
38
90111-05015-00 Bolt, Button Head |
90111-05015-00 |
from US $2.13 |
||
| replacement | |||||
|
38
|
38
92014-05008-00 Bolt, Button Head |
92014-05008-00 |
from US $2.13 |
||
|
39
|
39
90110-08071-00 Bolt, Hexagon Socket Head |
90110-08071-00 |
from US $4.72 |
||
|
40
|
40
90209-08295-00 Washer |
90209-08295-00 |
from US $7.63 |
||
|
41
|
41
3VR-27431-01-00 Footrest, Rear 1 |
3VR-27431-01-00 |
from US $26.92 |
||
| replacement | |||||
|
41
|
41
3VR-27431-02-00 Footrest, Rear 1 |
3VR-27431-02-00 |
from US $17.18 |
||
|
42
|
42
2D1-2741L-00-00 Bracket 4 |
2D1-2741L-00-00 |
from US $128.35 |
||
|
43
|
43
90501-12743-00 Spring, Compression |
90501-12743-00 |
from US $1.94 |
||
|
44
|
44
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
45
|
45
5VX-27437-00-00 Washer, Special |
5VX-27437-00-00 |
from US $2.08 |
||
|
46
|
46
917-02080-40-00 Pin, Clevis |
917-02080-40-00 |
from US $3.20 |
||
|
47
|
47
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
47
|
47
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
48
|
48
3VR-27441-01-00 Footrest, Rear 2 |
3VR-27441-01-00 |
from US $26.92 |
||
| replacement | |||||
|
48
|
48
3VR-27441-02-00 Footrest, Rear 2 |
3VR-27441-02-00 |
from US $29.96 |
||
|
49
|
49
2D1-2742L-00-00 Bracket 5 |
2D1-2742L-00-00 |
from US $139.54 |
||
|
50
|
50
90501-12743-00 Spring, Compression |
90501-12743-00 |
from US $1.94 |
||
|
51
|
51
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
52
|
52
5VX-27437-00-00 Washer, Special |
5VX-27437-00-00 |
from US $2.08 |
||
|
53
|
53
917-02080-40-00 Pin, Clevis |
917-02080-40-00 |
from US $3.20 |
||
|
54
|
54
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
54
|
54
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
55
|
55
36Y-27424-01-00 Damper, Footrest 2 |
36Y-27424-01-00 |
from US $6.24 |
||
|
56
|
56
90387-10636-00 Collar |
90387-10636-00 |
from US $7.90 |
||
|
57
|
57
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.63 |
||
|
58
|
58
90201-10669-00 Washer, Plate |
90201-10669-00 |
from US $1.39 |
||
|
59
|
59
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.91 |
||
