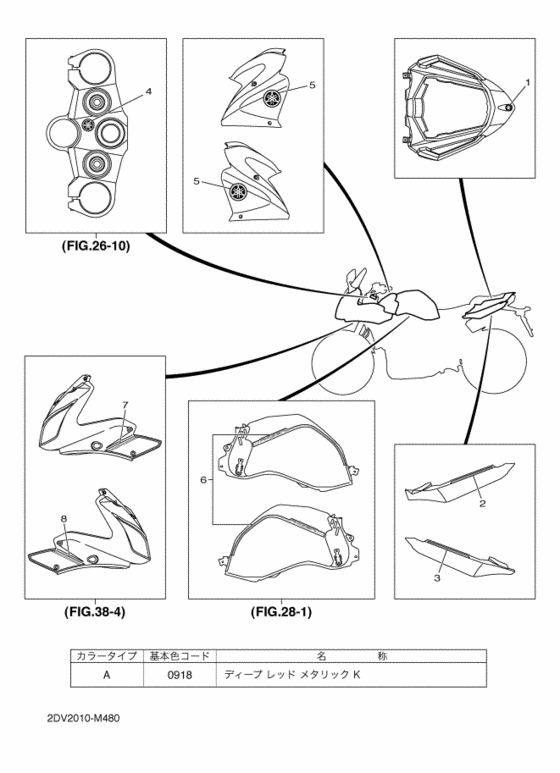

Graphic & Emblem Diagram Yamaha FZ1 FZ1 FAZER (S-TYPE)
- Year
- 2013
- Colour
- Deep Red Metallic K (DRMK; 0918)
- Model code
- 2DV2
- Sales region
- Japan (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZ1-S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KN-2836B-00-00 Tuning Fork Markチユーニングフオークマーク; |
4KN-2836B-00-00 |
from US $21.01 |
||
|
2
|
2
1CA-2165C-10-00 Graphic, 1 |
1CA-2165C-10-00 |
US $25.36 |
||
|
3
|
3
1CA-2165D-10-00 Graphic, 2 |
1CA-2165D-10-00 |
US $25.36 |
||
|
4
|
4
4XV-2341B-00-00 Emblem |
4XV-2341B-00-00 |
from US $18.03 |
||
|
5
|
5
5SL-2413B-00-00 Emblem |
5SL-2413B-00-00 |
from US $24.92 |
||
|
6
|
6
1CA-24240-10-00 Graphic Set |
1CA-24240-10-00 |
US $146.45 |
||
|
7
|
7
1CA-28391-10-00 Graphic 1 |
1CA-28391-10-00 |
US $33.01 |
||
|
8
|
8
1CA-28392-10-00 Graphic 2 |
1CA-28392-10-00 |
US $33.01 |
