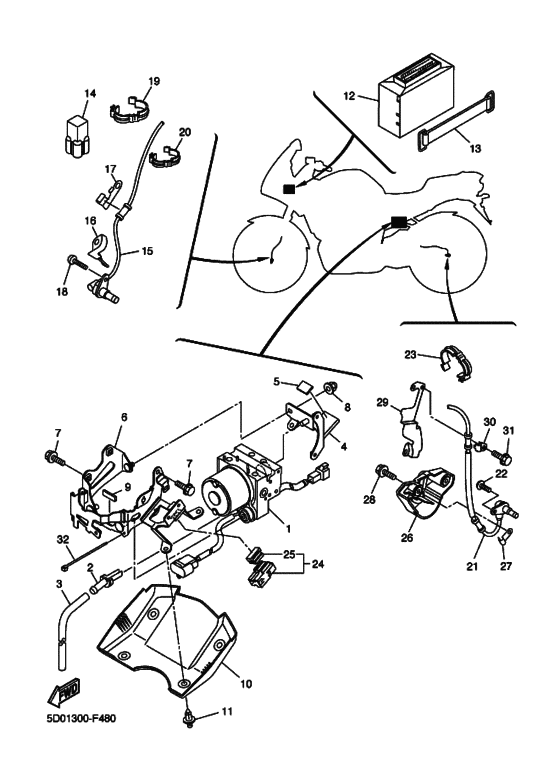

Electrical 3 Diagram Yamaha FZ1 FZ1 FAZER (S-TYPE ABS)
- Year
- 2007
- Colour
- Dark Purplish Blue Metallic U (DPBMU; 0996)
- Model code
- 5D01
- Sales region
- Europe (050)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZ1-SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5D0-85930-00-00
Hydraulic Unit Assy
|
5D0-85930-00-00 |
— | ||
| replacement | |||||
|
1
|
1
5D0-85930-09-00 Hydraulic Unit Assy |
5D0-85930-09-00 |
US $1,676.40 |
||
|
2
|
2
5CG-24196-00-00 Plug, Drain |
5CG-24196-00-00 |
from US $14.31 |
||
|
3
|
3
904-45101-44-00 Hose (L450) |
904-45101-44-00 |
from US $5.06 |
||
|
4
|
4
5D0-2175T-00-00
Bracket 1
|
5D0-2175T-00-00 |
— | ||
|
5
|
5
5YU-21639-00-00 Damper 2 |
5YU-21639-00-00 |
from US $1.84 |
||
|
6
|
6
5D0-2175U-00-00
Bracket 2
|
5D0-2175U-00-00 |
— | ||
|
7
|
7
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
8
|
8
90176-06008-00 Nut, Crown |
90176-06008-00 |
from US $1.81 |
||
|
9
|
9
5YU-24188-00-00 Mold, Fuel Tank |
5YU-24188-00-00 |
US $5.09 |
||
|
10
|
10
5D0-2172W-00-00 Cover |
5D0-2172W-00-00 |
from US $10.20 |
||
|
11
|
11
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
12
|
12
5D0-85940-00-00 Electronic Control Unit Assy |
5D0-85940-00-00 |
US $891 |
||
|
13
|
13
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
13
|
13
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
14
|
14
3YA-82378-00-00 Connector |
3YA-82378-00-00 |
from US $11.05 |
||
|
15
|
15
5D0-85970-00-00 Wheel Sensor Assy, Front |
5D0-85970-00-00 |
US $167.17 |
||
|
16
|
16
5D0-23874-00-00 Holder, Wire |
5D0-23874-00-00 |
US $16.72 |
||
|
17
|
17
5D0-23358-00-00 Holder Stopper 1 |
5D0-23358-00-00 |
US $8.64 |
||
|
18
|
18
92014-06014-00 Bolt, Button Head |
92014-06014-00 |
from US $1.52 |
||
|
19
|
19
90464-14003-00 Clamp |
90464-14003-00 |
from US $1.70 |
||
|
20
|
20
90464-12013-00 Clamp |
90464-12013-00 |
from US $1.70 |
||
|
21
|
21
5D0-85980-00-00 Wheel Sensor Assy, Rear |
5D0-85980-00-00 |
US $160.27 |
||
|
22
|
22
92014-06014-00 Bolt, Button Head |
92014-06014-00 |
from US $1.52 |
||
|
23
|
23
90464-12013-00 Clamp |
90464-12013-00 |
from US $1.70 |
||
|
24
|
24
5JJ-81950-20-00 Relay Assy (5JJ-20) |
5JJ-81950-20-00 |
from US $26.78 |
||
|
25
|
25
5JJ-81952-00-00 Holder, Relay |
5JJ-81952-00-00 |
from US $5.97 |
||
|
26
|
26
5D0-27491-00-00 Protector |
5D0-27491-00-00 |
US $15.58 |
||
|
27
|
27
5D0-8357E-00-00
Clamp
|
5D0-8357E-00-00 |
— | ||
|
28
|
28
95824-06016-00 Bolt, Flange |
95824-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
29
|
29
5D0-2216A-00-00 Stay 4 |
5D0-2216A-00-00 |
US $16.86 |
||
| replacement | |||||
|
29
|
29
59P-2216A-00-00 Stay 4 |
59P-2216A-00-00 |
US $16.86 |
||
|
30
|
30
5D0-22465-00-00 Holder |
5D0-22465-00-00 |
US $5.95 |
||
|
31
|
31
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $1.18 |
||
|
32
|
32
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
| replacement | |||||
|
32
|
32
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
