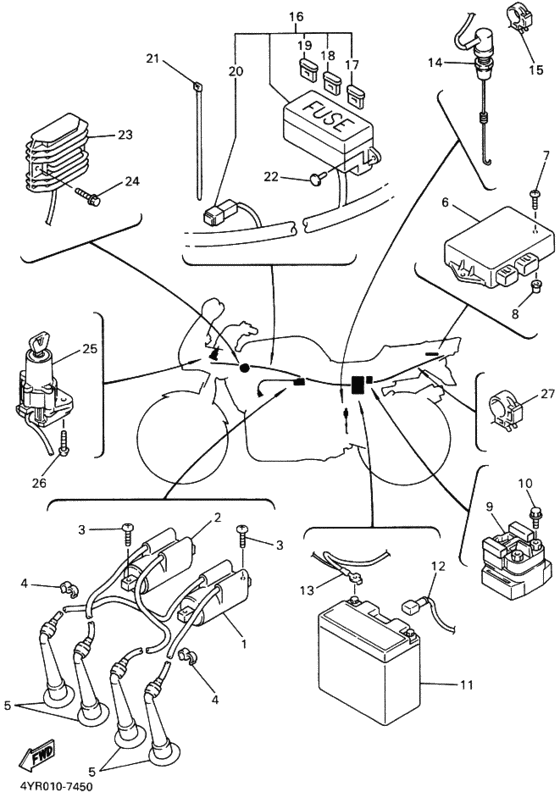

Electrical 1 Diagram Yamaha FZ400
- Year
- 1997
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4YR1
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- FZ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4YR-82310-00-00 Ignition Coil Assy |
4YR-82310-00-00 |
US $110.67 |
||
|
2
|
2
4YR-82320-00-00 Ignition Coil Assy |
4YR-82320-00-00 |
US $115.50 |
||
| replacements | |||||
|
2
|
2
4KM-82320-01-00
Ignition Coil Assy
|
4KM-82320-01-00 |
— | ||
|
2
|
2
4KM-82320-02-00 Ignition Coil Assy |
4KM-82320-02-00 |
from US $122.12 |
||
|
3
|
3
97707-60025-00 Screw, Tappingスクリユ，タツピング; |
97707-60025-00 |
from US $1.56 |
||
|
4
|
4
90464-10075-00 Clamp |
90464-10075-00 |
from US $1.70 |
||
| replacement | |||||
|
4
|
4
90464-09M31-00 Clamp |
90464-09M31-00 |
from US $1.77 |
||
|
5
|
5
4YR-82370-00-00 Plug Cap Assy |
4YR-82370-00-00 |
US $41.03 |
||
| replacement | |||||
|
5
|
5
5DM-82370-00-00 Plug Cap Assy |
5DM-82370-00-00 |
US $41.03 |
||
|
6
|
6
4YR-82305-00-00
Ignitor Unit Assy
|
4YR-82305-00-00 |
— | ||
|
7
|
7
97707-60016-00 Screw, Tappingスクリユ，タツピング; |
97707-60016-00 |
from US $1.98 |
||
|
8
|
8
90338-08226-00 Plug |
90338-08226-00 |
from US $1.70 |
||
|
9
|
9
4YR-81940-00-00 Starter Relay Assy (Rc19-018)スタータリレーアセンブリ; |
4YR-81940-00-00 |
from US $84.28 |
||
| replacement | |||||
|
9
|
9
4YR-81940-02-00 Starter Relay Assy (Rc19-018)スタータリレーアセンブリ; |
4YR-81940-02-00 |
from US $91.10 |
||
|
10
|
10
95027-06008-00 Bolt, Flangeボルト，フランジ; |
95027-06008-00 |
from US $1.52 |
||
|
11
|
11
90793-25029-00
Battery Assy
バツテリアセンブリ; |
90793-25029-00 |
— | ||
| replacement | |||||
|
11
|
11
GT1-2B400-00-00
Battery
バツテリアセンブリ; |
GT1-2B400-00-00 |
— | ||
|
12
|
12
4YR-82115-00-00
Wire, Plus Lead
ワイヤ，プラスリード; |
4YR-82115-00-00 |
— | ||
| replacement | |||||
|
12
|
12
4YR-82115-01-00
Wire, Plus Lead
ワイヤ，プラスリード; |
4YR-82115-01-00 |
— | ||
|
13
|
13
4YR-82116-00-00
Wire, Minus Lead
ワイヤ，マイナスリード; |
4YR-82116-00-00 |
— | ||
|
14
|
14
3DM-82530-00-00 Stop Switch Assy |
3DM-82530-00-00 |
from US $35.28 |
||
|
15
|
15
90464-08189-00 Clamp |
90464-08189-00 |
from US $1.81 |
||
|
16
|
16
4YR-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
4YR-82590-00-00 |
— | ||
|
17
|
17
2GV-82151-00-00 Fuse (20A-Bl)．フユーズ ; ２０Ａ−ＢＬ |
2GV-82151-00-00 |
from US $1.70 |
||
|
18
|
18
42X-82151-00-00 Fuse (10A-Bl)．フユーズ ; １０Ａ−ＢＬ |
42X-82151-00-00 |
from US $1.66 |
||
|
19
|
19
1NL-82151-00-00 Fuse (5A-Bl)．ヒユーズ ; ５Ａ−ＢＬ |
1NL-82151-00-00 |
from US $6.38 |
||
|
20
|
20
4TR-81980-00-00 Diode Assy．ダイオード アセンブリ; |
4TR-81980-00-00 |
US $34.37 |
||
|
21
|
21
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
22
|
22
90269-06063-00 Rivet |
90269-06063-00 |
from US $2.24 |
||
|
23
|
23
3LS-81960-01-00 Rectifier/reg Asyレクチフアイヤアンドレギユレータアセンブリ; |
3LS-81960-01-00 |
from US $242.37 |
||
| replacement | |||||
|
23
|
23
3VD-81960-01-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
3VD-81960-01-00 |
from US $313.42 |
||
|
24
|
24
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.25 |
||
| replacement | |||||
|
24
|
24
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
25
|
25
4NA-82031-01-00 Key Setキーセツト; ＡＰ ※１ |
4NA-82031-01-00 |
US $354.12 |
||
| replacement | |||||
|
25
|
25
4NA-82031-02-00 Key Setキーセツト; ＡＰ ※１ |
4NA-82031-02-00 |
US $300.93 |
||
|
25
|
25
4NA-82501-01-00
Main Switch Steering Lock
|
4NA-82501-01-00 |
— | ||
| replacement | |||||
|
25
|
25
4NA-82501-02-00 Main Switch Steering Lock |
4NA-82501-02-00 |
from US $210 |
||
|
26
|
26
901-09080-G5-00
Bolt
ボルト; |
901-09080-G5-00 |
— | ||
| replacement | |||||
|
26
|
26
901-09081-96-00 Boltボルト; |
901-09081-96-00 |
from US $2.08 |
||
|
27
|
27
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
