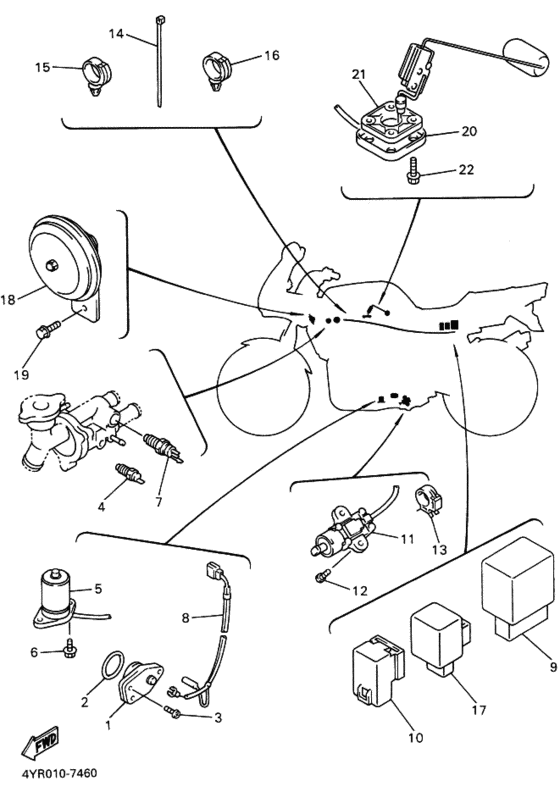

Electrical 2 Diagram Yamaha FZ400
- Year
- 1997
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4YR1
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- FZ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1AE-82540-00-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
1AE-82540-00-00 |
from US $23.16 |
||
|
2
|
2
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.66 |
||
|
3
|
3
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
4
|
4
4BA-82560-00-00 Thermo Switch Assyサーモスイツチアセンブリ; |
4BA-82560-00-00 |
from US $98.23 |
||
|
5
|
5
4JH-85720-00-00
Oil Level Gauge Assembly
オイルレベルゲージアセンブリ; |
4JH-85720-00-00 |
— | ||
| replacements | |||||
|
5
|
5
4H7-85720-01-00 Oil Lvl Gauge Assemblyオイルレベルゲージアセンブリ; |
4H7-85720-01-00 |
from US $183.75 |
||
|
5
|
5
4H7-85720-02-00 オイルレベルゲージアセンブリ; |
4H7-85720-02-00 |
US $190.94 |
||
|
6
|
6
950-27060-16-00
Bolt, Flange
ボルト，フランジ; |
950-27060-16-00 |
— | ||
| replacement | |||||
|
6
|
6
901-05066-96-00 Bolt, Flangeボルト，フランジ; |
901-05066-96-00 |
from US $2.64 |
||
|
7
|
7
3LN-82560-01-00 Thermo Switch Assyサーモスイツチアセンブリ; |
3LN-82560-01-00 |
from US $61.07 |
||
|
8
|
8
4YR-82541-00-00
Wire, Lead
ワイヤ，リード; |
4YR-82541-00-00 |
— | ||
|
9
|
9
4EP-81950-00-00
Relay Assembly
リレーアセンブリ; |
4EP-81950-00-00 |
— | ||
|
10
|
10
29U-81950-93-00 Relay Assy (Aca12115-1)リレーアセンブリ; マツシタ （昼間点灯用） |
29U-81950-93-00 |
from US $35.70 |
||
|
11
|
11
3LD-82566-90-00 Switch, Side Stand |
3LD-82566-90-00 |
from US $62.80 |
||
| replacement | |||||
|
11
|
11
3LD-82566-91-00 Switch, Side Stand |
3LD-82566-91-00 |
from US $62.80 |
||
|
12
|
12
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
12
|
12
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
13
|
13
90464-08189-00 Clamp |
90464-08189-00 |
from US $1.81 |
||
|
14
|
14
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
15
|
15
90464-20181-00 Clampクランプ; |
90464-20181-00 |
from US $1.70 |
||
|
16
|
16
90464-20181-00 Clampクランプ; |
90464-20181-00 |
from US $1.70 |
||
|
17
|
17
3GM-83350-01-00
Flasher Relay Assy
フラツシヤリレーアセンブリ; |
3GM-83350-01-00 |
— | ||
| replacements | |||||
|
17
|
17
3GM-83350-02-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
3GM-83350-02-00 |
from US $51.67 |
||
|
17
|
17
3GM-83350-03-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
3GM-83350-03-00 |
US $93.53 |
||
|
18
|
18
2TV-83371-00-00 Hornホーン; |
2TV-83371-00-00 |
from US $59.20 |
||
| replacement | |||||
|
18
|
18
2KG-83371-00-00 Hornホーン; |
2KG-83371-00-00 |
from US $89.25 |
||
|
19
|
19
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
19
|
19
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
20
|
20
4YR-85752-00-00
Sender Unit Assy, Fuel Meter
センダユニツトアセンブリ，フユエルメータ; |
4YR-85752-00-00 |
— | ||
| replacement | |||||
|
20
|
20
4YR-85752-11-00
Sender Unit Assy, Fuel Meter
センダユニツトアセンブリ，フユエルメータ; |
4YR-85752-11-00 |
— | ||
|
21
|
21
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $5.58 |
||
|
22
|
22
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
