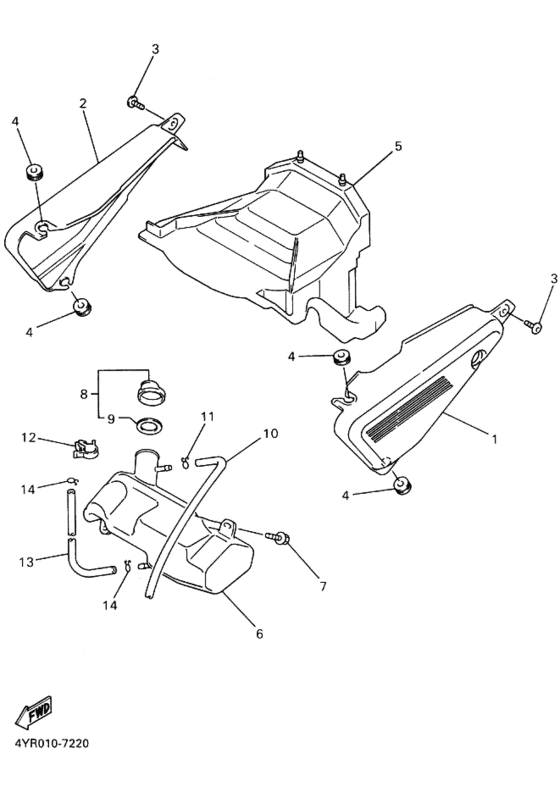

Side cover Diagram Yamaha FZ400
- Year
- 1997
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4YR1
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- FZ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4YR-21711-00-00 Cover, Side 1カバー，サイド １; |
4YR-21711-00-00 |
US $40.90 |
||
|
2
|
2
4YR-21721-00-00 Cover, Side 2カバー，サイド ２; |
4YR-21721-00-00 |
US $47.82 |
||
|
3
|
3
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.81 |
||
|
4
|
4
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.66 |
||
|
5
|
5
4YR-2172W-00-00
Cover
カバー; |
4YR-2172W-00-00 |
— | ||
|
6
|
6
4YR-21871-00-00
Tank, Recovery
|
4YR-21871-00-00 |
— | ||
|
7
|
7
90119-06074-00 Bolt, With Washer |
90119-06074-00 |
US $2.41 |
||
| replacement | |||||
|
7
|
7
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
8
|
8
1AA-21815-00-00 Cap |
1AA-21815-00-00 |
from US $6.40 |
||
|
9
|
9
1AA-21874-00-00 Gasket．ガスケツト; |
1AA-21874-00-00 |
from US $1.94 |
||
|
10
|
10
90445-09353-00 Hose (L520)ホース; |
90445-09353-00 |
US $19.84 |
||
| replacement | |||||
|
10
|
10
904-45090-F6-00 Hose (L1500)ホース; |
904-45090-F6-00 |
from US $7.76 |
||
|
11
|
11
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
12
|
12
90464-15157-00 Clamp |
90464-15157-00 |
from US $1.81 |
||
|
13
|
13
90445-080K5-00 Hose (L830)ホース; |
90445-080K5-00 |
US $10.08 |
||
|
14
|
14
904-67080-75-00
Clip
|
904-67080-75-00 |
— | ||
| replacement | |||||
|
14
|
14
904-67080-21-00 Clip |
904-67080-21-00 |
from US $1.81 |
||
