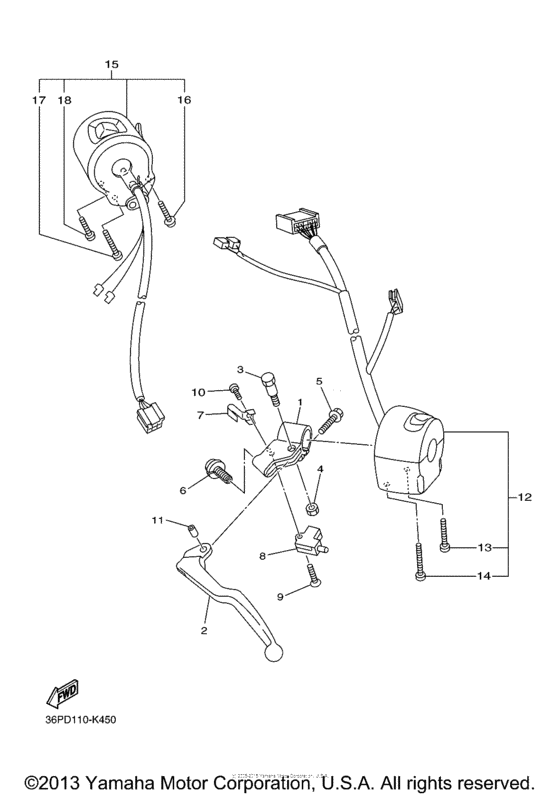

Handle switch & lever Diagram Yamaha FZ6 FZ6R
- Year
- 2014
- Sales region
- USA
- Engine Capacity
- 600
- Model
- FZ6-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XV-82911-10-00 Holder, Lever 1 |
4XV-82911-10-00 |
from US $31.45 |
||
|
2
|
2
5EB-83912-03-00 Lever 1 |
5EB-83912-03-00 |
from US $23.58 |
||
|
3
|
3
2C0-83945-00-00 Bolt, Lever |
2C0-83945-00-00 |
from US $5.97 |
||
|
4
|
4
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
5
|
5
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
6
|
6
5LV-83951-00-00 Bolt, Cable Adjusting |
5LV-83951-00-00 |
from US $36.61 |
||
|
7
|
7
4XV-83929-00-00 Plate, Spring |
4XV-83929-00-00 |
from US $6.38 |
||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
3YX-82917-01-00 Switch |
3YX-82917-01-00 |
from US $21.77 |
||
|
9
|
9
987-04030-20-00 Screw, Special |
987-04030-20-00 |
from US $1.98 |
||
| replacements | |||||
|
9
|
9
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
|
9
|
9
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
10
|
10
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
11
|
11
5JJ-83913-00-00 Collar, Lever 1 |
5JJ-83913-00-00 |
from US $6.51 |
||
|
12
|
12
36P-83963-00-00 Switch, Handle 3 |
36P-83963-00-00 |
US $237.98 |
||
|
13
|
13
985-07050-30-00
Screw, Pan Head
|
985-07050-30-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
14
|
14
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
|
15
|
15
5VX-83975-01-00 Switch, Handle 2 |
5VX-83975-01-00 |
from US $92.43 |
||
|
16
|
16
97607-05255-00 Screw,with Washer |
97607-05255-00 |
from US $2.27 |
||
|
17
|
17
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
|
18
|
18
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
