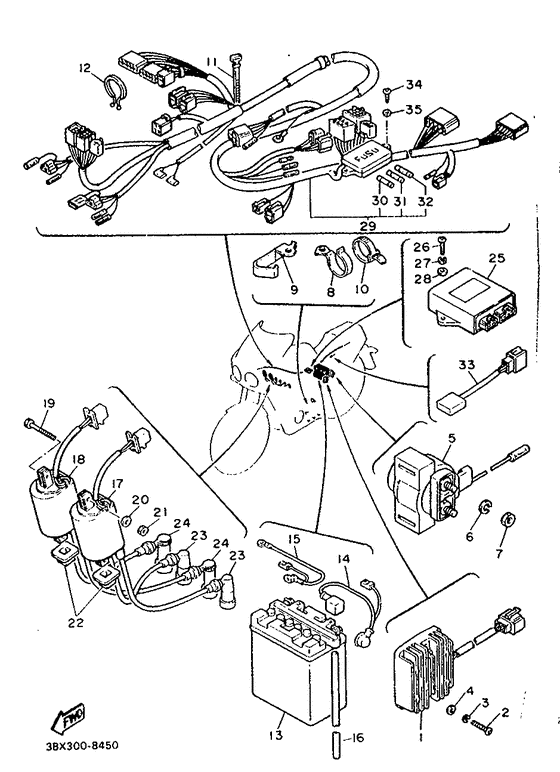

Electrical 1 Diagram Yamaha FZ600
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 3BX
- Sales region
- France (999)
- Engine Capacity
- 600
- Model
- FZ600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2XL-81960-A0-00 Rectifier/reg Assembly |
2XL-81960-A0-00 |
US $214.88 |
||
|
02
|
02
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
02
|
02
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
03
|
03
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
05
|
05
36Y-81940-00-00 Starter Relay Assy |
36Y-81940-00-00 |
from US $87.73 |
||
|
06
|
06
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
07
|
07
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
07
|
07
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
07
|
07
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
|
08
|
08
90462-06078-00
Clamp
|
90462-06078-00 |
— | ||
|
09
|
09
90462-08067-00 Clamp |
90462-08067-00 |
from US $13.46 |
||
|
10
|
10
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
10
|
10
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
11
|
11
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
11
|
11
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
12
|
12
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
13
|
13
366-82110-79-00
12N12A-4A-1 Yuasa B
|
366-82110-79-00 |
— | ||
| replacements | |||||
|
13
|
13
12N-12A4A-1Y-00
CB16CLB GS BATTERY
|
12N-12A4A-1Y-00 |
— | ||
|
13
|
13
12N-12A4A-1G-00
BLANK KEY 1212
|
12N-12A4A-1G-00 |
— | ||
|
13
|
13
366-82110-09-00
Battery (12N12A-4A-1)
|
366-82110-09-00 |
— | ||
|
13
|
13
12N-12A4A-10-00
Bat 12N12A-4A-1 Yu
|
12N-12A4A-10-00 |
— | ||
|
14
|
14
1FK-82115-00-00 Wire, Plus Lead |
1FK-82115-00-00 |
from US $22.92 |
||
| replacement | |||||
|
14
|
14
1UT-82115-00-00
Wire, Plus Lead
|
1UT-82115-00-00 |
— | ||
|
15
|
15
2AX-82116-00-00
Wire, Minus Lead
|
2AX-82116-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
90445-08380-00 Hose |
90445-08380-00 |
US $10.91 |
||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
2XL-82310-10-00 Ignition Coil Asy1. 4 |
2XL-82310-10-00 |
from US $189.28 |
||
| replacement | |||||
|
17
|
17
1WG-82310-09-00 Ignition Coil Assy1. 4 |
1WG-82310-09-00 |
from US $200.13 |
||
|
18
|
18
2XL-82320-10-00 Ignition Coil Asy2.3 |
2XL-82320-10-00 |
from US $189.28 |
||
| replacement | |||||
|
18
|
18
1WG-82310-09-00 Ignition Coil Assy2.3 |
1WG-82310-09-00 |
from US $200.13 |
||
|
19
|
19
97302-06085-00
Bolt
|
97302-06085-00 |
— | ||
| replacement | |||||
|
19
|
19
970-23060-85-00
Bolt (36E)
|
970-23060-85-00 |
— | ||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
22
|
22
4U8-82317-00-00 Damper, Ignition Coil |
4U8-82317-00-00 |
from US $5.38 |
||
|
23
|
23
4G0-82370-21-00 Plug Cap Assy |
4G0-82370-21-00 |
from US $19.69 |
||
| replacements | |||||
|
23
|
23
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.24 |
||
|
23
|
23
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
|
24
|
24
56X-82370-00-00
Plug Cap Assy
|
56X-82370-00-00 |
— | ||
|
25
|
25
3BX-82305-10-00
Ignitor Unit Assy
|
3BX-82305-10-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
26
|
26
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
27
|
27
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
3BX-82590-00-00
Wire Harness Assy
|
3BX-82590-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
1A0-82151-00-00 Fuse (12V-10A) |
1A0-82151-00-00 |
from US $4.96 |
||
|
31
|
31
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
32
|
32
2H7-82151-00-00 Fuse |
2H7-82151-00-00 |
from US $4.82 |
||
|
33
|
33
4U8-81980-M0-00 Diode Assy |
4U8-81980-M0-00 |
from US $57.89 |
||
|
34
|
34
97702-50112-00 Screw, Tapping |
97702-50112-00 |
US $1.98 |
||
| replacement | |||||
|
34
|
34
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
|
35
|
35
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
35
|
35
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
35
|
35
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
