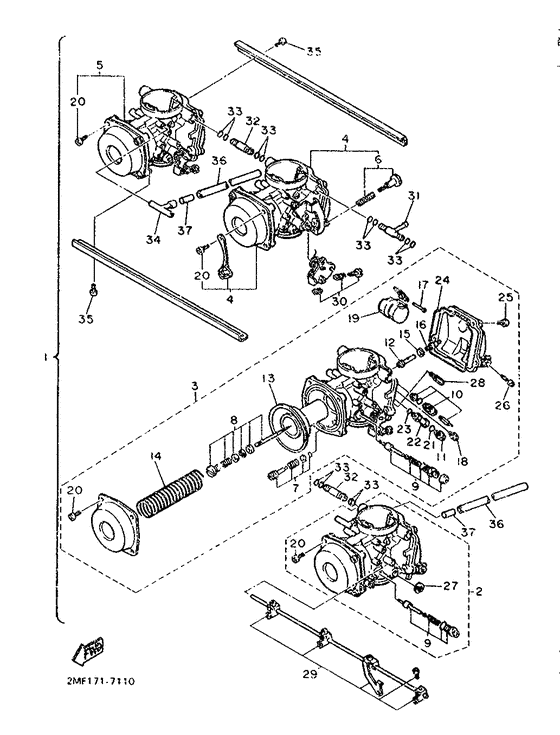

Carburetor Diagram Yamaha FZ750 FZ750 Genesis
- Year
- 1987
- Colour
- X005
- Model code
- 2MG
- Sales region
- England (999)
- Engine Capacity
- 750
- Model
- FZ750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2MG-14900-00-00
Carburetor Assy
|
2MG-14900-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
2MG-14901-00-00
Carburetor Assy 1
|
2MG-14901-00-00 |
— | ||
|
03
|
03
2MG-14902-00-00
Carburetor Assy 2
|
2MG-14902-00-00 |
— | ||
|
04
|
04
2MG-14903-00-00
Carburetor Assy 3
|
2MG-14903-00-00 |
— | ||
|
05
|
05
2MG-14904-00-00
Carburetor Assy 4
|
2MG-14904-00-00 |
— | ||
|
06
|
06
1AE-14103-00-00 Throttle Screw Set |
1AE-14103-00-00 |
US $32.11 |
||
|
07
|
07
12R-14105-00-00 Pilot Screw Set |
12R-14105-00-00 |
from US $19.13 |
||
|
08
|
08
1FN-1490J-00-00
Needle Set
Ur 2,3 |
1FN-1490J-00-00 |
— | ||
|
08
|
08
2MG-1490J-00-00
Needle Set
Ur 1,4 |
2MG-1490J-00-00 |
— | ||
|
09
|
09
1AE-1410A-00-00 Starter SetUr 1 |
1AE-1410A-00-00 |
US $84.80 |
||
|
09
|
09
1FN-1410A-00-00 Starter SetUr 2,3,4 |
1FN-1410A-00-00 |
from US $50.70 |
||
|
10
|
10
1FN-14107-12-00 Needle Valve Set |
1FN-14107-12-00 |
from US $54.40 |
||
|
11
|
11
620-14231-21-00 Jet, MainUr 1,4 |
620-14231-21-00 |
from US $13.21 |
||
| replacement | |||||
|
11
|
11
620-14231-21-A0 Jet, Main (#105)Ur 1,4 |
620-14231-21-A0 |
from US $15.71 |
||
|
11
|
11
620-1423A-71-00
Jet, Main
Ur 2,3 |
620-1423A-71-00 |
— | ||
| replacement | |||||
|
11
|
11
620-1423A-71-A0 Jet, Main (#102.5)Ur 2,3 |
620-1423A-71-A0 |
from US $11.92 |
||
|
12
|
12
1AE-14141-92-00 Nozzle, Main |
1AE-14141-92-00 |
US $37.29 |
||
|
13
|
13
1AE-14940-00-00 Diaphragm Assembly |
1AE-14940-00-00 |
from US $183.75 |
||
|
14
|
14
1AE-14933-00-00 Spring, Diaphragm |
1AE-14933-00-00 |
US $21.01 |
||
|
15
|
15
137-14153-00-00 Washer,main Jet |
137-14153-00-00 |
from US $2.98 |
||
|
16
|
16
1AE-14565-00-00 Screw |
1AE-14565-00-00 |
from US $16.43 |
||
|
17
|
17
353-14186-00-00 Pin, Float |
353-14186-00-00 |
from US $4.39 |
||
|
18
|
18
1FN-14565-00-00 Screw |
1FN-14565-00-00 |
from US $1.70 |
||
|
19
|
19
1AE-14985-00-00 Float |
1AE-14985-00-00 |
from US $46.90 |
||
|
20
|
20
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
20
|
20
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
21
|
21
1AE-14227-00-00 O-Ring |
1AE-14227-00-00 |
from US $5.55 |
||
|
22
|
22
1AE-14261-00-00 Holder |
1AE-14261-00-00 |
from US $7.76 |
||
|
23
|
23
1AE-14237-00-00 Gasket |
1AE-14237-00-00 |
from US $2.13 |
||
|
24
|
24
1FN-14147-00-00 O-Ring |
1FN-14147-00-00 |
from US $18.56 |
||
|
25
|
25
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
25
|
25
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
26
|
26
12R-14191-00-00 Plug, Drain |
12R-14191-00-00 |
from US $8.64 |
||
|
27
|
27
812-14137-00-00 Clip |
812-14137-00-00 |
from US $4.96 |
||
|
28
|
28
3H1-14142-15-00 Jet, Pilot (#15) |
3H1-14142-15-00 |
from US $11.65 |
||
|
29
|
29
1FN-1490L-00-00 Starter Levr Set, 1 |
1FN-1490L-00-00 |
from US $86.05 |
||
|
30
|
30
1FN-1490K-01-00
Stop Screw Set
|
1FN-1490K-01-00 |
— | ||
|
31
|
31
1AE-14988-00-00
Pipe, Starter Conn
|
1AE-14988-00-00 |
— | ||
|
32
|
32
16H-14251-00-00 Nipple |
16H-14251-00-00 |
from US $22.46 |
||
|
33
|
33
36Y-14147-00-00 O-Ring |
36Y-14147-00-00 |
from US $8.32 |
||
|
34
|
34
1AE-14197-00-00
Pipe
|
1AE-14197-00-00 |
— | ||
|
35
|
35
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
35
|
35
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
36
|
36
2KT-14197-00-00 Pipe |
2KT-14197-00-00 |
US $10.77 |
||
| replacement | |||||
|
36
|
36
1KT-14197-01-00 Pipe |
1KT-14197-01-00 |
US $10.77 |
||
|
37
|
37
1FN-14198-00-00 Gasket |
1FN-14198-00-00 |
from US $6.46 |
||
| replacement | |||||
|
37
|
37
1FN-14918-00-00 Ring |
1FN-14918-00-00 |
from US $6.46 |
||
