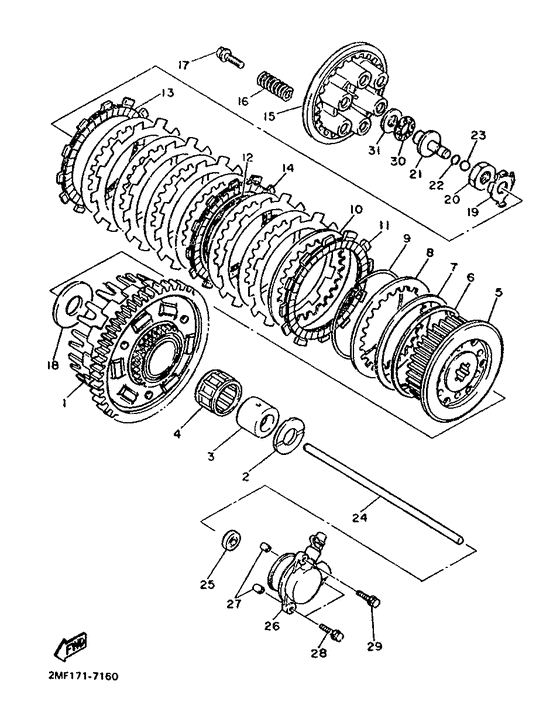

Clutch Diagram Yamaha FZ750 FZ750 Genesis
- Year
- 1987
- Colour
- X005
- Model code
- 2MG
- Sales region
- England (999)
- Engine Capacity
- 750
- Model
- FZ750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1TV-16150-01-00
Pri Drvn Gear
|
1TV-16150-01-00 |
— | ||
|
02
|
02
1AE-16154-00-00 Plate, Thrust 1 |
1AE-16154-00-00 |
US $55.78 |
||
|
03
|
03
905-60252-70-00
Collar
|
905-60252-70-00 |
— | ||
| replacement | |||||
|
03
|
03
903-87250-24-00 Collar |
903-87250-24-00 |
from US $30.10 |
||
|
04
|
04
93310-340N8-00 Bearing |
93310-340N8-00 |
from US $23.16 |
||
|
05
|
05
1AE-16371-00-00
Boss, Clutch
|
1AE-16371-00-00 |
— | ||
| replacement | |||||
|
05
|
05
1AE-16371-02-00
Boss, Clutch
|
1AE-16371-02-00 |
— | ||
|
06
|
06
1J7-16384-00-00 Plate, Seat |
1J7-16384-00-00 |
from US $12.18 |
||
|
07
|
07
5G2-16383-00-00 Spring.,cushion |
5G2-16383-00-00 |
from US $19.69 |
||
|
08
|
08
168-16324-00-00 Plate, Clutch 1 (T=2.3) |
168-16324-00-00 |
from US $11.80 |
||
|
09
|
09
1J7-16385-00-00 Ring Set |
1J7-16385-00-00 |
from US $10.63 |
||
|
10
|
10
31A-16325-00-00 Plate, Clutch 2 (T=2.0) |
31A-16325-00-00 |
from US $13.18 |
||
|
11
|
11
4H7-16321-00-00
Plate, Friction
|
4H7-16321-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4H7-16321-02-00 Plate, Friction |
4H7-16321-02-00 |
from US $13.14 |
||
|
12
|
12
5Y1-16383-00-00 Spring.,cushion |
5Y1-16383-00-00 |
from US $26.21 |
||
|
13
|
13
31A-16321-00-00
Plate, Friction
|
31A-16321-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4H7-16321-02-00 Plate, Friction |
4H7-16321-02-00 |
from US $13.14 |
||
|
14
|
14
5Y1-16331-01-00 Plate, Friction 2 |
5Y1-16331-01-00 |
from US $13.82 |
||
|
15
|
15
58L-16351-00-00 Plate, Pressure 1 |
58L-16351-00-00 |
from US $33.72 |
||
|
16
|
16
905-01225-A9-00 Spring, Compression |
905-01225-A9-00 |
from US $4.22 |
||
|
17
|
17
90159-06123-00 Screw, With Washer |
90159-06123-00 |
from US $2.13 |
||
|
18
|
18
1AE-16164-00-00 Plate, Thrust 2 |
1AE-16164-00-00 |
from US $11.33 |
||
|
19
|
19
902-15202-31-00 Washer, Lock (34L) |
902-15202-31-00 |
from US $2.02 |
||
|
20
|
20
90170-20327-00 Nut (34L) |
90170-20327-00 |
from US $6.94 |
||
|
21
|
21
1LJ-16356-00-00
Rod, Push 1
|
1LJ-16356-00-00 |
— | ||
|
22
|
22
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
23
|
23
93511-32027-00 Ball |
93511-32027-00 |
from US $1.66 |
||
|
24
|
24
1AE-16357-00-00
Rod, Push 2
|
1AE-16357-00-00 |
— | ||
|
25
|
25
371-15389-00-00
Seal, Push Rod
|
371-15389-00-00 |
— | ||
| replacement | |||||
|
25
|
25
93109-08061-00 Oil Seal |
93109-08061-00 |
from US $3.38 |
||
|
26
|
26
1TV-16381-00-00
Push Lever Comp
|
1TV-16381-00-00 |
— | ||
| replacement | |||||
|
26
|
26
1TV-16381-12-00 Push Lever Comp |
1TV-16381-12-00 |
from US $182.37 |
||
|
27
|
27
91810-18013-00 Pin, Dowel |
91810-18013-00 |
from US $1.84 |
||
| replacement | |||||
|
27
|
27
91808-12024-00 Pin, Dowel |
91808-12024-00 |
from US $1.84 |
||
|
28
|
28
950-26060-30-00
Bolt, Flange
|
950-26060-30-00 |
— | ||
| replacements | |||||
|
28
|
28
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
28
|
28
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
29
|
29
950-26060-90-00
Bolt, Flange
|
950-26060-90-00 |
— | ||
| replacements | |||||
|
29
|
29
95022-06090-00 Bolt, Flange |
95022-06090-00 |
from US $1.52 |
||
|
29
|
29
95027-06090-00 Bolt, Flange |
95027-06090-00 |
from US $1.56 |
||
|
30
|
30
93340-21505-00 Bearing |
93340-21505-00 |
from US $10.10 |
||
|
31
|
31
902-01150-H2-00
Washer, Plate
|
902-01150-H2-00 |
— | ||
| replacement | |||||
|
31
|
31
90201-150U6-00 Washer, Plate |
90201-150U6-00 |
from US $8.32 |
||
