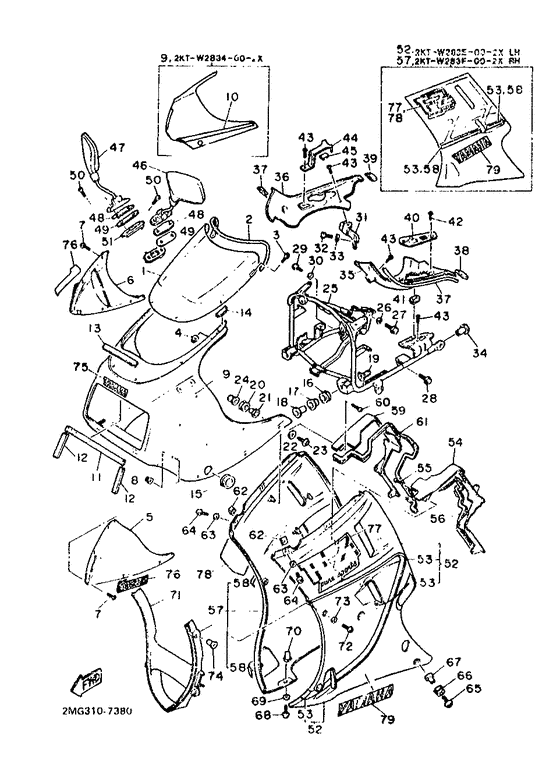

Cowling 1 Diagram Yamaha FZ750 FZ750 Genesis
- Year
- 1987
- Colour
- X005
- Model code
- 2MG
- Sales region
- England (999)
- Engine Capacity
- 750
- Model
- FZ750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2KK-28381-00-00
Windshield
|
2KK-28381-00-00 |
— | ||
|
02
|
02
47X-28346-00-00 Mole 4 |
47X-28346-00-00 |
from US $10.06 |
||
| replacement | |||||
|
02
|
02
36Y-28348-00-00 Mole 4 |
36Y-28348-00-00 |
from US $11.10 |
||
|
03
|
03
90150-05020-00 Screw, Round Head |
90150-05020-00 |
from US $4.03 |
||
|
04
|
04
95706-05500-00 Nut, With Washer |
95706-05500-00 |
from US $1.18 |
||
| replacement | |||||
|
04
|
04
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
05
|
05
2KT-2834V-00-00
Protector 1
Ur solid fine red |
2KT-2834V-00-00 |
— | ||
|
05
|
05
2KT-2834V-10-00
Protector 1
Ur solid dynasty blue |
2KT-2834V-10-00 |
— | ||
|
06
|
06
2KT-2834W-00-00
Protector 2
Ur solid fine red |
2KT-2834W-00-00 |
— | ||
|
06
|
06
2KT-2834W-10-00
Protector 2
Ur solid dynasty blue |
2KT-2834W-10-00 |
— | ||
|
07
|
07
90150-05020-00 Screw, Round Head |
90150-05020-00 |
from US $4.03 |
||
|
08
|
08
95706-05500-00 Nut, With Washer |
95706-05500-00 |
from US $1.18 |
||
| replacement | |||||
|
08
|
08
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
09
|
09
2KT-2835G-00-GE
Body, Front Upper 1
Ur silky white |
2KT-2835G-00-GE |
— | ||
|
09
|
09
2KT-W2834-00-2X
Body, Cowling
Ur silky white/dynasty blue |
2KT-W2834-00-2X |
— | ||
|
10
|
10
2KT-28390-00-00
Grphc Set, Cowling
Para sw/dyb |
2KT-28390-00-00 |
— | ||
|
11
|
11
1AE-28371-00-00 Damper |
1AE-28371-00-00 |
from US $6.02 |
||
|
12
|
12
1AE-28372-00-00
Damper
|
1AE-28372-00-00 |
— | ||
|
13
|
13
1AE-2834E-00-00 Damper 1 |
1AE-2834E-00-00 |
from US $2.35 |
||
|
14
|
14
1AE-2834F-00-00 Damper (R.h) |
1AE-2834F-00-00 |
US $3.10 |
||
|
15
|
15
90480-35394-00 Grommet |
90480-35394-00 |
from US $5.51 |
||
| replacement | |||||
|
15
|
15
90480-35526-00 Grommet |
90480-35526-00 |
from US $6.23 |
||
|
16
|
16
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.94 |
||
|
17
|
17
90480-14429-00 Grommet |
90480-14429-00 |
from US $2.83 |
||
|
18
|
18
90387-066H4-00 Collar |
90387-066H4-00 |
from US $6.38 |
||
|
19
|
19
1AE-28363-00-00 Nut |
1AE-28363-00-00 |
from US $16.46 |
||
|
20
|
20
90480-13163-00 Grommet |
90480-13163-00 |
from US $1.70 |
||
|
21
|
21
903-87061-F9-00
Collar
|
903-87061-F9-00 |
— | ||
| replacement | |||||
|
21
|
21
90387-062L2-00 Collar |
90387-062L2-00 |
from US $3.54 |
||
|
22
|
22
90202-07015-00 Washer, Plate (122-21725-00) |
90202-07015-00 |
from US $3.74 |
||
|
23
|
23
90110-06083-00 Bolt, Hexagon Socket Head |
90110-06083-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
90110-06202-00 Bolt, Hexagon Socket Head |
90110-06202-00 |
from US $1.81 |
||
|
24
|
24
90179-06500-00 Nut |
90179-06500-00 |
from US $2.22 |
||
|
25
|
25
2KT-28356-00-00
Stay 1
|
2KT-28356-00-00 |
— | ||
|
26
|
26
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
27
|
27
95026-08016-00 Bolt, Flange |
95026-08016-00 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
95027-08016-00 Bolt, Flange |
95027-08016-00 |
from US $1.70 |
||
|
28
|
28
95826-06012-00 Bolt, Flange |
95826-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
29
|
29
913-16060-12-00
Bolt
7 |
913-16060-12-00 |
— | ||
| replacement | |||||
|
29
|
29
91317-06012-00 Bolt7 |
91317-06012-00 |
from US $1.28 |
||
|
30
|
30
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
31
|
31
1AE-28357-00-00
Stay 2
|
1AE-28357-00-00 |
— | ||
|
32
|
32
97706-06010-00
Screw, tapping
|
97706-06010-00 |
— | ||
|
33
|
33
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
33
|
33
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
34
|
34
3Y1-21279-00-00
Plug, Blind
|
3Y1-21279-00-00 |
— | ||
|
35
|
35
1AE-2836K-00-00
Panel, Inner 1
|
1AE-2836K-00-00 |
— | ||
|
36
|
36
1AE-2836L-00-00
Panel, Inner 2
|
1AE-2836L-00-00 |
— | ||
|
37
|
37
1AE-28346-00-00
Mold 2
|
1AE-28346-00-00 |
— | ||
|
38
|
38
1AE-28347-00-00
Mold 3
|
1AE-28347-00-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
1AE-28348-00-00
Mold 4
|
1AE-28348-00-00 |
— | ||
|
40
|
40
1AE-28365-00-00 Cover |
1AE-28365-00-00 |
from US $27.36 |
||
|
41
|
41
904-80014-30-00
Grommet
|
904-80014-30-00 |
— | ||
|
42
|
42
90154-05008-00 Screw, Binding |
90154-05008-00 |
from US $1.70 |
||
| replacement | |||||
|
42
|
42
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
43
|
43
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.81 |
||
|
44
|
44
1AE-2834V-00-00
Protector 1
|
1AE-2834V-00-00 |
— | ||
|
45
|
45
1AE-2837J-00-00
Damper 5
|
1AE-2837J-00-00 |
— | ||
|
46
|
46
1AE-26280-00-00
Mirror Assembly
|
1AE-26280-00-00 |
— | ||
|
47
|
47
1AE-26290-00-00
Mirror Assembly
|
1AE-26290-00-00 |
— | ||
|
48
|
48
1AE-26298-00-00 Plate, Mirror Fitting 1 |
1AE-26298-00-00 |
from US $4.53 |
||
|
49
|
49
1AE-26299-00-00 Plate, Mirror Fitting 2 |
1AE-26299-00-00 |
from US $2.43 |
||
| replacement | |||||
|
49
|
49
3CV-26299-00-00 Plate, Mirror Fitting |
3CV-26299-00-00 |
from US $10.76 |
||
|
50
|
50
92706-06025-00 Screw, Flat Head |
92706-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
50
|
50
98707-06025-00 Screw, Flat Head |
98707-06025-00 |
from US $1.42 |
||
|
51
|
51
1AE-26294-00-00 Nut 1 |
1AE-26294-00-00 |
from US $16.72 |
||
|
52
|
52
2KT-W283E-00-1X
Body Front Lower 1
Ur silky white/fine red |
2KT-W283E-00-1X |
— | ||
|
52
|
52
2KT-W283E-00-2X
Body Front Lower 1
Ur silky white/dynasty blue |
2KT-W283E-00-2X |
— | ||
|
53
|
53
2KT-2836V-00-00
Graphic Set3 Cowln
Ur para sw/frd |
2KT-2836V-00-00 |
— | ||
| replacement | |||||
|
53
|
53
999-99999-99-00
Not Available
Ur para sw/frd |
999-99999-99-00 |
— | ||
|
53
|
53
2KT-2836V-10-00
Graphic Set3 Cowln
Ur para sw/frd |
2KT-2836V-10-00 |
— | ||
|
54
|
54
2KT-28396-00-00
Plate 1
|
2KT-28396-00-00 |
— | ||
|
55
|
55
97706-50614-00 Screw, Tapping |
97706-50614-00 |
from US $2.91 |
||
| replacement | |||||
|
55
|
55
97707-50614-00 Screw, Tapping |
97707-50614-00 |
from US $2.69 |
||
|
56
|
56
2KT-2834G-00-00
Mold 5
|
2KT-2834G-00-00 |
— | ||
| replacement | |||||
|
56
|
56
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
57
|
57
2KT-W283F-00-1X
Body Front Lower 2
Ur silky white/fine red |
2KT-W283F-00-1X |
— | ||
|
57
|
57
2KT-W283F-00-2X
Body Front Lower 2
Ur silky white/dynasty blue |
2KT-W283F-00-2X |
— | ||
|
58
|
58
2KT-2836W-00-00
Graphic Set4 Cowln
Ur para sw/frd |
2KT-2836W-00-00 |
— | ||
|
58
|
58
2KT-2836W-10-00
Graphic Set4 Cowln
Ur para sw/dyb |
2KT-2836W-10-00 |
— | ||
|
59
|
59
2KT-28397-00-00
Plate 2
|
2KT-28397-00-00 |
— | ||
|
60
|
60
97706-50614-00 Screw, Tapping |
97706-50614-00 |
from US $2.91 |
||
| replacement | |||||
|
60
|
60
97707-50614-00 Screw, Tapping |
97707-50614-00 |
from US $2.69 |
||
|
61
|
61
2KT-2834H-00-00
Mold 6
|
2KT-2834H-00-00 |
— | ||
|
62
|
62
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
62
|
62
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
63
|
63
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $2.08 |
||
|
64
|
64
901-10050-79-00
Bolt, Hexagon Socket Head
|
901-10050-79-00 |
— | ||
| replacements | |||||
|
64
|
64
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
|
64
|
64
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.39 |
||
|
65
|
65
901-10060-78-00
Bolt, Hexagon Socket Head
|
901-10060-78-00 |
— | ||
| replacement | |||||
|
65
|
65
901-10062-00-00 Bolt, Hexagon Socket Head |
901-10062-00-00 |
from US $1.81 |
||
|
66
|
66
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
66
|
66
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.36 |
||
|
67
|
67
90387-067N5-00 Collar |
90387-067N5-00 |
from US $5.13 |
||
|
68
|
68
90149-05224-00 Screw |
90149-05224-00 |
from US $1.66 |
||
| replacement | |||||
|
68
|
68
90149-05299-00 Screw |
90149-05299-00 |
from US $1.66 |
||
|
69
|
69
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $2.08 |
||
|
70
|
70
901-79055-23-00 Nut |
901-79055-23-00 |
from US $4.03 |
||
|
71
|
71
2KT-2836M-00-GE
Panel, Inner 3
Ur silky white |
2KT-2836M-00-GE |
— | ||
|
71
|
71
2KT-2836M-00-VA
Panel, Inner 3
Ur dynasty blue |
2KT-2836M-00-VA |
— | ||
|
72
|
72
90149-05224-00 Screw |
90149-05224-00 |
from US $1.66 |
||
| replacement | |||||
|
72
|
72
90149-05299-00 Screw |
90149-05299-00 |
from US $1.66 |
||
|
73
|
73
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $2.08 |
||
|
74
|
74
901-79055-23-00 Nut |
901-79055-23-00 |
from US $4.03 |
||
|
75
|
75
1AE-2163G-10-00 Emblem 1Ur para sw/dyb |
1AE-2163G-10-00 |
from US $8.08 |
||
| replacement | |||||
|
75
|
75
99241-00080-00 Emblem, YamahaUr para sw/dyb |
99241-00080-00 |
from US $8.08 |
||
|
75
|
75
1KT-2163H-00-00 Emblem 2Ur para sw/frd |
1KT-2163H-00-00 |
from US $13.28 |
||
| replacement | |||||
|
75
|
75
99243-00080-00 Emblem, YamahaUr para sw/frd |
99243-00080-00 |
from US $14.17 |
||
|
76
|
76
2KT-2839H-00-00
Emblem 1
|
2KT-2839H-00-00 |
— | ||
| replacement | |||||
|
76
|
76
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
77
|
77
2KT-28328-10-00
Emblem
Ur para sw/dyb |
2KT-28328-10-00 |
— | ||
| replacement | |||||
|
77
|
77
999-99999-99-00
Not Available
Ur para sw/dyb |
999-99999-99-00 |
— | ||
|
77
|
77
2KT-28328-00-00
Emblem
Ur para sw/frd |
2KT-28328-00-00 |
— | ||
| replacement | |||||
|
77
|
77
999-99999-99-00
Not Available
Ur para sw/frd |
999-99999-99-00 |
— | ||
|
78
|
78
2KT-28338-00-00
Emblem
Ur para sw/frd |
2KT-28338-00-00 |
— | ||
|
78
|
78
2KT-28338-10-00
Emblem
Ur para sw/dyb |
2KT-28338-10-00 |
— | ||
| replacement | |||||
|
78
|
78
999-99999-99-00
Not Available
Ur para sw/dyb |
999-99999-99-00 |
— | ||
|
79
|
79
2AX-28315-00-00
Emblem
Ur para sw/frd |
2AX-28315-00-00 |
— | ||
|
79
|
79
2KT-28315-10-00 EmblemUr para sw/dyb |
2KT-28315-10-00 |
US $52.24 |
||
