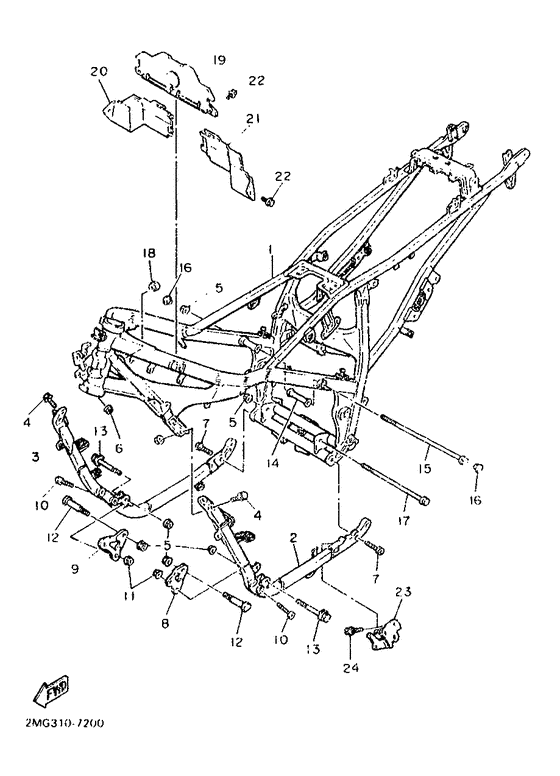

Frame Diagram Yamaha FZ750 FZ750 Genesis
- Year
- 1987
- Colour
- X005
- Model code
- 2MG
- Sales region
- England (999)
- Engine Capacity
- 750
- Model
- FZ750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2MG-21110-00-MA
Frame Comp
Titanic grey metalic |
2MG-21110-00-MA |
— | ||
| replacement | |||||
|
01
|
01
3DX-21110-00-MA
Frame
Titanic grey metalic |
3DX-21110-00-MA |
— | ||
|
02
|
02
2KT-21140-00-MA
Down Tube Comp
Titanic grey metalic |
2KT-21140-00-MA |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Titanic grey metalic |
999-99999-99-00 |
— | ||
|
03
|
03
2KT-21150-00-MA
Down Tube Comp.2
Titanic grey metalic |
2KT-21150-00-MA |
— | ||
|
04
|
04
95821-10040-00 Bolt, Flange |
95821-10040-00 |
from US $2.69 |
||
| replacement | |||||
|
04
|
04
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.91 |
||
|
05
|
05
901-79102-47-00
Nut, Flange
|
901-79102-47-00 |
— | ||
| replacements | |||||
|
05
|
05
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
05
|
05
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
|
06
|
06
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
06
|
06
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
07
|
07
90110-08152-00 Bolt |
90110-08152-00 |
from US $1.07 |
||
| replacement | |||||
|
07
|
07
91317-08020-00 Bolt |
91317-08020-00 |
from US $1.18 |
||
|
08
|
08
1AE-21315-00-00 Stay, Engine 1 |
1AE-21315-00-00 |
from US $19.39 |
||
|
09
|
09
1AE-21316-00-00 Stay, Engine 2 |
1AE-21316-00-00 |
US $17.06 |
||
|
10
|
10
91311-08050-00 Bolt, Hexagon Socket Head |
91311-08050-00 |
from US $4.11 |
||
| replacement | |||||
|
10
|
10
91314-08050-00 Bolt, Hexagon Socket Head |
91314-08050-00 |
from US $4.11 |
||
|
11
|
11
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
11
|
11
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
11
|
11
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
12
|
12
90105-10423-00 Bolt, Flange |
90105-10423-00 |
US $4.57 |
||
|
13
|
13
90105-10170-00 Bolt, Flange |
90105-10170-00 |
from US $7.37 |
||
| replacement | |||||
|
13
|
13
90105-10737-00 Bolt, Flange |
90105-10737-00 |
from US $7.37 |
||
|
14
|
14
1AE-21459-00-00 Spacer |
1AE-21459-00-00 |
from US $22.92 |
||
|
15
|
15
90105-10056-00 Bolt, FlangeBolt, washer based |
90105-10056-00 |
from US $11.05 |
||
|
16
|
16
90338-23172-00 Plug |
90338-23172-00 |
from US $1.63 |
||
|
17
|
17
901-05100-42-00 Bolt, Flange |
901-05100-42-00 |
from US $12.33 |
||
|
18
|
18
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
|
19
|
19
1AE-1246A-00-00 Cover 1 |
1AE-1246A-00-00 |
US $64.60 |
||
|
20
|
20
1AE-1246E-00-00 Cover 2 |
1AE-1246E-00-00 |
from US $42.88 |
||
| replacement | |||||
|
20
|
20
2KW-1246E-00-00 Cover 2 |
2KW-1246E-00-00 |
from US $42.88 |
||
|
21
|
21
1AE-1246F-00-00 Cover 3 |
1AE-1246F-00-00 |
from US $42.88 |
||
| replacement | |||||
|
21
|
21
2KW-1246F-00-00 Cover 3 |
2KW-1246F-00-00 |
from US $42.88 |
||
|
22
|
22
95826-06012-00 Bolt, Flange |
95826-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
23
|
23
2KT-21458-00-00
Bracket, Side Stand
|
2KT-21458-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
90105-10470-00
Bolt, Washer Based
|
90105-10470-00 |
— | ||
