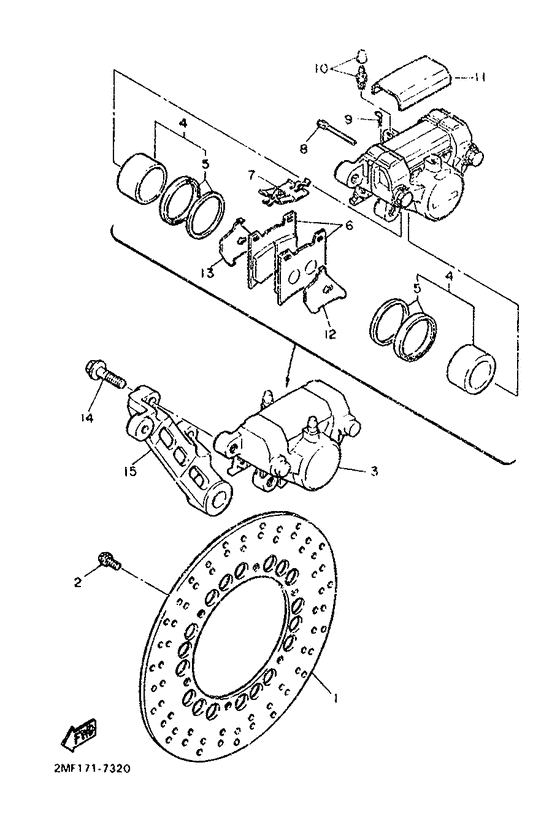

Rear brake caliper Diagram Yamaha FZ750 FZ750 Genesis
- Year
- 1987
- Colour
- X005
- Model code
- 2MG
- Sales region
- England (999)
- Engine Capacity
- 750
- Model
- FZ750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2KT-25831-00-00 Disc, Brake (Right)Disc, brake (derecho) |
2KT-25831-00-00 |
US $326.06 |
||
|
02
|
02
90109-085A4-00 Bolt |
90109-085A4-00 |
from US $2.13 |
||
| replacements | |||||
|
02
|
02
92017-08025-00 Bolt, Button Head |
92017-08025-00 |
from US $1.66 |
||
|
02
|
02
90111-08084-00 Bolt,hex. Socket Button |
90111-08084-00 |
from US $5.81 |
||
|
02
|
02
90109-084F7-00 Bolt |
90109-084F7-00 |
from US $2.13 |
||
|
03
|
03
2KT-25810-50-00
Caliper Assy
|
2KT-25810-50-00 |
— | ||
| replacement | |||||
|
03
|
03
2KT-25810-51-00
Caliper Assembly
|
2KT-25810-51-00 |
— | ||
|
04
|
04
31A-W0057-00-00 Piston Assy, Caliper |
31A-W0057-00-00 |
from US $89.27 |
||
|
05
|
05
31A-W0047-00-00 Caliper Seal Kit |
31A-W0047-00-00 |
from US $41.05 |
||
|
06
|
06
47X-W0045-00-00
Brake Pad Kit
|
47X-W0045-00-00 |
— | ||
| replacement | |||||
|
06
|
06
1FK-W0046-01-00 Brake Pad Kit 2 |
1FK-W0046-01-00 |
from US $66.32 |
||
|
07
|
07
29L-25919-00-00 Support, Pad |
29L-25919-00-00 |
from US $17.64 |
||
| replacement | |||||
|
07
|
07
1WG-25919-00-00 Support, Pad |
1WG-25919-00-00 |
from US $11.54 |
||
|
08
|
08
26H-25924-00-00 Pin, Pad |
26H-25924-00-00 |
from US $8.64 |
||
| replacement | |||||
|
08
|
08
3HE-25924-00-00 Pin, Pad |
3HE-25924-00-00 |
from US $9.57 |
||
|
09
|
09
26H-25925-00-00 Clip |
26H-25925-00-00 |
from US $5.10 |
||
| replacement | |||||
|
09
|
09
3GM-25925-00-00 Clip |
3GM-25925-00-00 |
from US $5.68 |
||
|
10
|
10
26H-W0048-00-00 Bleed Screw Kit |
26H-W0048-00-00 |
from US $14.45 |
||
| replacement | |||||
|
10
|
10
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $15.95 |
||
|
11
|
11
51J-25836-00-00 Cover, Dust |
51J-25836-00-00 |
from US $12.06 |
||
| replacement | |||||
|
11
|
11
51J-25836-01-00 Cover, Dust |
51J-25836-01-00 |
from US $12.06 |
||
|
12
|
12
1FK-25827-00-00 Shim, Caliper |
1FK-25827-00-00 |
from US $10.91 |
||
| replacement | |||||
|
12
|
12
1FK-25827-01-00 Shim, Caliper |
1FK-25827-01-00 |
from US $10.91 |
||
|
13
|
13
1FK-25828-00-00 Shim, Caliper |
1FK-25828-00-00 |
from US $9.29 |
||
| replacement | |||||
|
13
|
13
1FK-25828-01-00 Shim, Caliper |
1FK-25828-01-00 |
from US $10.91 |
||
|
14
|
14
90105-10363-00 Bolt, Flange |
90105-10363-00 |
from US $1.84 |
||
| replacements | |||||
|
14
|
14
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
|
14
|
14
90105-10634-00 Bolt, Flange |
90105-10634-00 |
from US $1.84 |
||
|
15
|
15
1AE-25819-50-00 Bracket, Caliper |
1AE-25819-50-00 |
from US $92.84 |
||
| replacement | |||||
|
15
|
15
1AE-25819-52-00 Bracket, Caliper |
1AE-25819-52-00 |
from US $92.84 |
||
