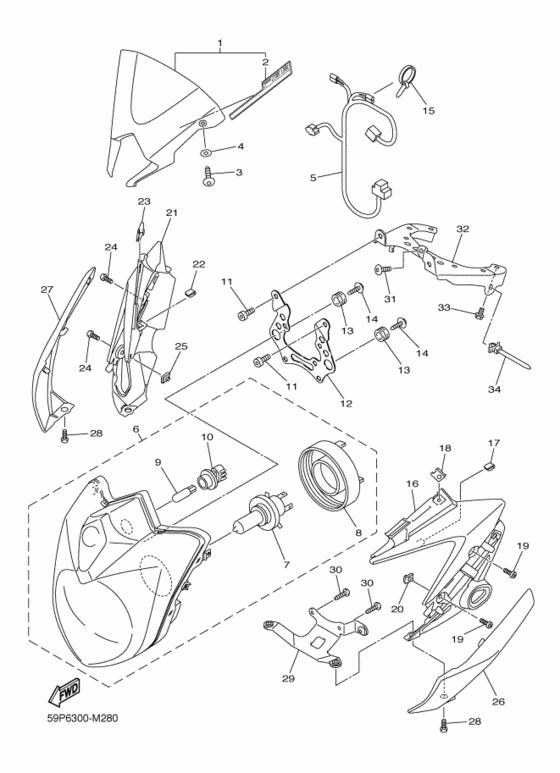

Headlight Diagram Yamaha FZ8 FZ8 (Naked)
- Year
- 2013
- Colour
- Mat Gray Metallic 3 (MNM3; 1278)
- Model code
- 39PT
- Sales region
- Europe (060)
- Engine Capacity
- 800
- Color Variant
- A
- Model
- FZ8-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39P-Y835A-00-P5 Cover, MeterMNM3 |
39P-Y835A-00-P5 |
from US $171.32 |
||
|
2
|
2
39P-283G4-00-00 Graphic, 1 |
39P-283G4-00-00 |
from US $25.40 |
||
|
3
|
3
90167-05076-00 Screw, Tapping |
90167-05076-00 |
from US $1.66 |
||
|
4
|
4
902-02050-02-00 Washer, Plate |
902-02050-02-00 |
from US $1.56 |
||
|
5
|
5
39P-82509-00-00 Wire, Sub Lead |
39P-82509-00-00 |
US $37.99 |
||
|
6
|
6
39P-84300-00-00 Headlight Assy |
39P-84300-00-00 |
US $437.84 |
||
|
6
|
6
39P-84300-20-00 Headlight AssyFOR GBR,IRL,ZAF |
39P-84300-20-00 |
US $437.84 |
||
|
7
|
7
2F9-84314-00-00 Bulb (12V 60/55W Halogen)12V-60/55W; (H4)HALOGEN |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
7
|
7
5V2-84314-00-XX
Bulb (12V-60/55W)
12V-60/55W; (H4)HALOGEN |
5V2-84314-00-XX |
— | ||
|
7
|
7
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
12V-60/55W; (H4)HALOGEN |
YMC-00903-00-00 |
— | ||
|
7
|
7
5VK-H4314-00-00 Bulb, Headlight12V-60/55W; (H4)HALOGEN |
5VK-H4314-00-00 |
US $45.92 |
||
|
7
|
7
8V0-84314-10-00 Bulb, Headlight12V-60/55W; (H4)HALOGEN |
8V0-84314-10-00 |
from US $45.92 |
||
|
8
|
8
5JW-84397-00-00 Cover, Socket |
5JW-84397-00-00 |
from US $12.06 |
||
|
9
|
9
5DM-84347-00-00 Bulb (12V-5W)12V-5W |
5DM-84347-00-00 |
from US $2.83 |
||
| replacements | |||||
|
9
|
9
4SV-84347-00-00 Bulb (12V-5W)12V-5W |
4SV-84347-00-00 |
from US $3.05 |
||
|
9
|
9
1WD-H4744-00-00 Bulb (12V-5W)12V-5W |
1WD-H4744-00-00 |
from US $6.23 |
||
|
9
|
9
1RC-84347-00-00 Bulb (12V-5W)12V-5W |
1RC-84347-00-00 |
from US $5.41 |
||
|
9
|
9
1JD-H4347-00-00 Bulb (W3W-12V)12V-5W |
1JD-H4347-00-00 |
US $4.68 |
||
|
9
|
9
3WW-H4347-00-00
Bulb
12V-5W |
3WW-H4347-00-00 |
— | ||
|
10
|
10
5JW-84346-00-00 Socket, Pilot Light |
5JW-84346-00-00 |
from US $15.88 |
||
|
11
|
11
91312-06010-00 Bolt |
91312-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
|
12
|
12
20S-28396-00-00 Plate 1 |
20S-28396-00-00 |
from US $14.29 |
||
|
13
|
13
90480-14004-00 Grommet |
90480-14004-00 |
from US $1.81 |
||
|
14
|
14
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.81 |
||
|
15
|
15
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
16
|
16
39P-23121-00-00 Cover, Upper 1 |
39P-23121-00-00 |
from US $60.24 |
||
|
17
|
17
20S-28376-00-00 Trim |
20S-28376-00-00 |
from US $1.94 |
||
|
18
|
18
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
19
|
19
901-11061-27-00 Bolt, Hex. Socket Button |
901-11061-27-00 |
from US $1.66 |
||
|
20
|
20
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
21
|
21
39P-23131-00-00 Cover, Upper 2 |
39P-23131-00-00 |
from US $60.24 |
||
|
22
|
22
20S-28376-00-00 Trim |
20S-28376-00-00 |
from US $1.94 |
||
|
23
|
23
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
24
|
24
901-11061-27-00 Bolt, Hex. Socket Button |
901-11061-27-00 |
from US $1.66 |
||
|
25
|
25
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
26
|
26
39P-23122-00-P3 Cover, Outer 1MBL2 |
39P-23122-00-P3 |
from US $95.47 |
||
|
27
|
27
39P-23132-00-P3 Cover, Outer 2MBL2 |
39P-23132-00-P3 |
from US $95.47 |
||
|
28
|
28
901-11061-27-00 Bolt, Hex. Socket Button |
901-11061-27-00 |
from US $1.66 |
||
|
29
|
29
39P-8431R-00-00 Stay, Setting |
39P-8431R-00-00 |
from US $32.87 |
||
|
30
|
30
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
30
|
30
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
31
|
31
92012-05012-00 Bolt, Button Head |
92012-05012-00 |
from US $1.66 |
||
|
32
|
32
39P-84119-00-00 Stay, Headlight 2 |
39P-84119-00-00 |
from US $33.02 |
||
|
33
|
33
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
33
|
33
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
33
|
33
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
34
|
34
90464-12089-00 Clamp |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
34
|
34
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
