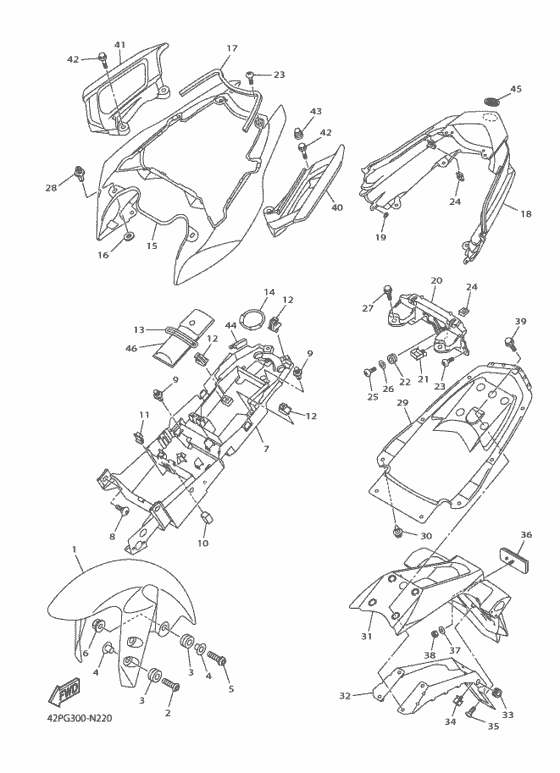

Fender Diagram Yamaha FZ8 FZ8 FAZER
- Year
- 2015
- Colour
- Mat Silver 1
- Model code
- 42PN
- Sales region
- Europe (060)
- Engine Capacity
- 800
- Color Variant
- A
- Model
- FZ8-S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5PW-21511-01-PH Fender, FrontMBL2 |
5PW-21511-01-PH |
from US $200.33 |
||
|
2
|
2
90149-06302-00 Screw |
90149-06302-00 |
from US $4.16 |
||
|
3
|
3
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.94 |
||
|
4
|
4
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
4
|
4
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.66 |
||
|
5
|
5
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.70 |
||
|
6
|
6
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
7
|
7
2D1-8212B-02-00 Box, Battery 1 |
2D1-8212B-02-00 |
from US $39.24 |
||
|
8
|
8
90109-06253-00 Bolt |
90109-06253-00 |
from US $3.54 |
||
|
9
|
9
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
10
|
10
2D1-216A2-00-00 Seal, 2 |
2D1-216A2-00-00 |
from US $1.84 |
||
|
11
|
11
2D1-216A3-00-00 Seal, 3 |
2D1-216A3-00-00 |
from US $2.98 |
||
|
12
|
12
90464-07259-00 Clamp |
90464-07259-00 |
from US $1.81 |
||
|
13
|
13
4XV-21376-00-00 Band, Tool |
4XV-21376-00-00 |
from US $5.10 |
||
|
14
|
14
2D1-21646-00-00 Band |
2D1-21646-00-00 |
from US $3.12 |
||
|
15
|
15
42P-21651-00-P4 Cover, Rear FenderMBL2 |
42P-21651-00-P4 |
US $218.29 |
||
|
16
|
16
5PW-2174X-00-00 Damper |
5PW-2174X-00-00 |
from US $1.94 |
||
|
17
|
17
905-20050-15-00 Damper, Plate |
905-20050-15-00 |
US $1.56 |
||
|
18
|
18
39P-2163A-00-00 Cover, Rear Fender 1 |
39P-2163A-00-00 |
from US $44.63 |
||
|
19
|
19
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.70 |
||
|
20
|
20
39P-2117E-00-00 Bracket, Taillight |
39P-2117E-00-00 |
from US $10.06 |
||
|
21
|
21
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
|
22
|
22
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
|
23
|
23
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
23
|
23
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
24
|
24
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
25
|
25
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.52 |
||
| replacement | |||||
|
25
|
25
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.52 |
||
|
26
|
26
902-01050-36-00
Washer, Plate
|
902-01050-36-00 |
— | ||
| replacement | |||||
|
26
|
26
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
27
|
27
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.70 |
||
|
28
|
28
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.81 |
||
|
29
|
29
39P-21611-00-00 Fender, Rear |
39P-21611-00-00 |
from US $27.59 |
||
|
30
|
30
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
31
|
31
2D1-21629-00-00 Guard, Mud |
2D1-21629-00-00 |
US $30.89 |
||
|
32
|
32
2D1-21688-02-00 Bracket, Rear Stay |
2D1-21688-02-00 |
from US $83.03 |
||
|
33
|
33
90480-13004-00 Grommet |
90480-13004-00 |
from US $1.65 |
||
|
34
|
34
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
|
35
|
35
901-60050-12-00 Screw, Round Tapping |
901-60050-12-00 |
from US $1.52 |
||
|
36
|
36
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $11.12 |
||
|
37
|
37
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
38
|
38
95602-05100-00 Nut, U |
95602-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
38
|
38
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
39
|
39
901-05081-80-00 Bolt, Flange |
901-05081-80-00 |
from US $1.70 |
||
| replacement | |||||
|
39
|
39
90105-08129-00 Bolt, Flange |
90105-08129-00 |
from US $1.70 |
||
|
40
|
40
42P-2474A-00-00 Assist, Grip |
42P-2474A-00-00 |
US $86.35 |
||
|
41
|
41
42P-2474W-00-00 Assist,grip 2 |
42P-2474W-00-00 |
US $86.35 |
||
|
42
|
42
95822-08025-00 Bolt, Flange |
95822-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
42
|
42
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
43
|
43
4GL-84178-00-00 Plug |
4GL-84178-00-00 |
US $7.08 |
||
|
44
|
44
39P-24785-00-00 Mold, Seat |
39P-24785-00-00 |
from US $4.53 |
||
|
45
|
45
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $20.39 |
||
|
46
|
46
42P-28100-10-00 Tool Kit |
42P-28100-10-00 |
US $68.39 |
||
