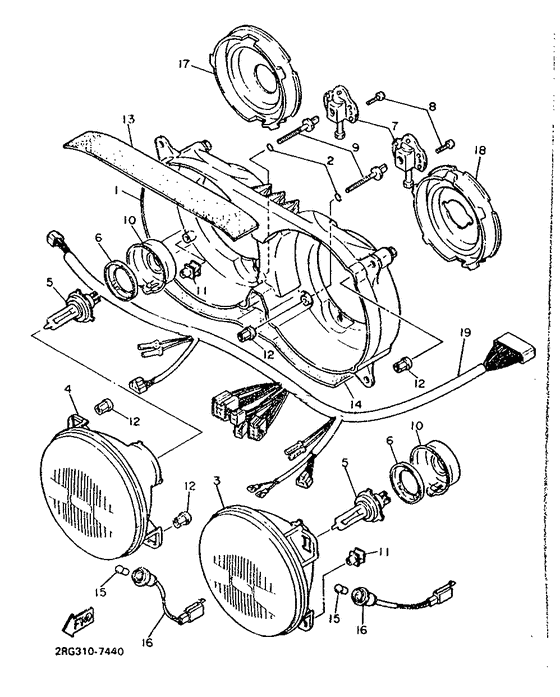

Headlight Diagram Yamaha FZR1000
- Year
- 1987
- Colour
- Urushi Black (URB; 00JW)
- Model code
- 2RG
- Sales region
- England (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2LJ-84330-A0-00
Body Assembly
|
2LJ-84330-A0-00 |
— | ||
|
02
|
02
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
03
|
03
2RG-84320-E0-00
Lens Assy
|
2RG-84320-E0-00 |
— | ||
|
04
|
04
2RG-8432A-E0-00
Lens Assy
|
2RG-8432A-E0-00 |
— | ||
|
06
|
06
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
07
|
07
46X-8430M-00-00 Gear Unit Assembly |
46X-8430M-00-00 |
US $30.13 |
||
| replacement | |||||
|
07
|
07
3LD-8430M-00-00 Gear Unit Assembly |
3LD-8430M-00-00 |
US $30.13 |
||
|
08
|
08
97706-40616-00 Screw, Tapping |
97706-40616-00 |
from US $1.26 |
||
| replacement | |||||
|
08
|
08
97707-40616-00 Screw, Tapping |
97707-40616-00 |
from US $1.42 |
||
|
09
|
09
2AX-84331-00-00
Screw, Rim Adjusting
|
2AX-84331-00-00 |
— | ||
|
10
|
10
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
11
|
11
51L-8431U-00-00
Holder
|
51L-8431U-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3AJ-8431U-00-00 Holder |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
12
|
12
51L-84334-00-00 Nut, Adjusting |
51L-84334-00-00 |
from US $10.55 |
||
|
13
|
13
2GH-84396-00-00
Cover
|
2GH-84396-00-00 |
— | ||
|
14
|
14
2GH-84396-10-00
Cover
|
2GH-84396-10-00 |
— | ||
| replacements | |||||
|
14
|
14
2GH-84396-00-00
Cover
|
2GH-84396-00-00 |
— | ||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
123-83516-21-00 Bulb (12V3.4W) |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
15
|
15
123-83516-21-XX Bulb (12V-3.4W) |
123-83516-21-XX |
US $63.70 |
||
|
16
|
16
3LA-84312-00-00
Holder, Socket
|
3LA-84312-00-00 |
— | ||
|
17
|
17
2LA-84397-00-00
Cover, Socket
|
2LA-84397-00-00 |
— | ||
|
18
|
18
2LA-84397-10-00
Cover, Socket
|
2LA-84397-10-00 |
— | ||
|
19
|
19
2RG-84359-00-00
Cord, Headlight
|
2RG-84359-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
