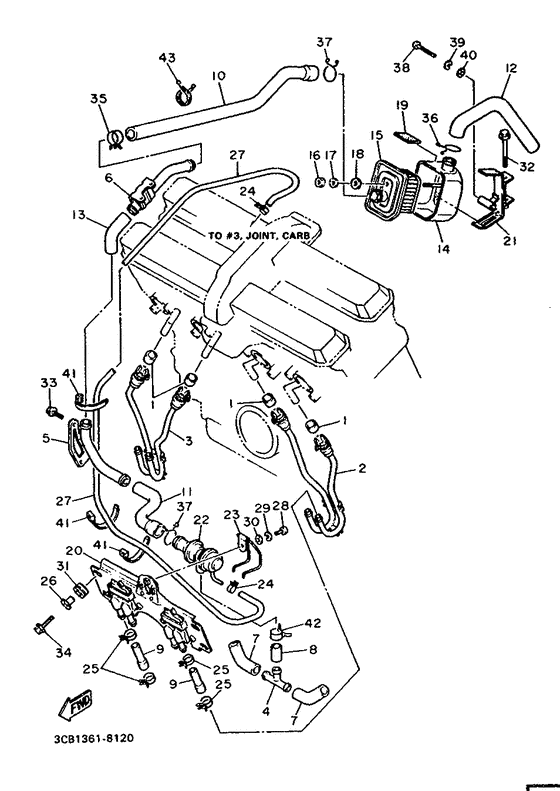

Air induction system Diagram Yamaha FZR1000
- Year
- 1988
- Colour
- Fine Red (FRD; 00LN)
- Model code
- 3CB1
- Sales region
- Switzerland (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
42H-14714-00-00
Gasket, Muffler
|
42H-14714-00-00 |
— | ||
| replacement | |||||
|
01
|
01
42H-14714-10-00 Gasket, Muffler |
42H-14714-10-00 |
from US $17.90 |
||
|
02
|
02
2LJ-14871-00-00 Pipe 11,2 |
2LJ-14871-00-00 |
US $93.33 |
||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
1,2 |
999-99999-99-00 |
— | ||
|
03
|
03
2LJ-14872-00-00 Pipe 23,4 |
2LJ-14872-00-00 |
US $90.13 |
||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
3,4 |
999-99999-99-00 |
— | ||
|
04
|
04
2LJ-14874-00-00 Pipe 4 |
2LJ-14874-00-00 |
US $64.30 |
||
|
05
|
05
2LJ-14875-00-00 Pipe 5 |
2LJ-14875-00-00 |
US $42.57 |
||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
2LJ-14876-00-00 Pipe 6 |
2LJ-14876-00-00 |
US $56.57 |
||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
2LJ-14881-00-00
Hose, Bend 1
|
2LJ-14881-00-00 |
— | ||
|
08
|
08
2LJ-14882-00-00 Hose, Bend 2 |
2LJ-14882-00-00 |
US $5.94 |
||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
2LJ-14883-00-00
Hose, Bend 3
|
2LJ-14883-00-00 |
— | ||
|
10
|
10
2LJ-14884-00-00 Hose, Bend 4 |
2LJ-14884-00-00 |
US $44.93 |
||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
2LJ-14885-00-00 Hose, Bend 5 |
2LJ-14885-00-00 |
US $5.92 |
||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
2LJ-14886-00-00 Hose, Band 6 |
2LJ-14886-00-00 |
US $12.01 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
2LJ-14148-00-00 Pipe |
2LJ-14148-00-00 |
US $11.32 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
42H-14857-00-00 Case, Air Cleaner |
42H-14857-00-00 |
from US $8.93 |
||
|
15
|
15
42H-14858-00-00
Cap, Case
|
42H-14858-00-00 |
— | ||
|
16
|
16
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
17
|
17
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
18
|
18
90202-05057-00 Washer, Plate |
90202-05057-00 |
from US $1.70 |
||
|
19
|
19
2LJ-14425-00-00 Damper 1 |
2LJ-14425-00-00 |
from US $1.98 |
||
| replacement | |||||
|
19
|
19
5H0-8235Y-M0-00 Damper |
5H0-8235Y-M0-00 |
from US $1.98 |
||
|
20
|
20
2LJ-14808-00-00 Reed Valve Assembly |
2LJ-14808-00-00 |
US $266.06 |
||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
2LJ-14868-00-00 Bracket 2 |
2LJ-14868-00-00 |
US $44.93 |
||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
42H-14840-00-00 Air Cut Valve Ass'y |
42H-14840-00-00 |
US $360.72 |
||
| replacements | |||||
|
22
|
22
1TA-14840-00-00 Air Cut Valve Assembly |
1TA-14840-00-00 |
US $360.72 |
||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90465-12248-00 Clamp |
90465-12248-00 |
from US $19.40 |
||
| replacement | |||||
|
23
|
23
90462-20188-00 Clamp (1Rv) |
90462-20188-00 |
from US $20.69 |
||
|
24
|
24
90467-08092-00 Clip |
90467-08092-00 |
from US $1.39 |
||
|
25
|
25
904-68081-04-00 Clip |
904-68081-04-00 |
from US $1.81 |
||
|
26
|
26
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
27
|
27
90445-094E8-00 Hose |
90445-094E8-00 |
US $3.76 |
||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
92506-06016-00 Screw |
92506-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
29
|
29
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
30
|
30
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
31
|
31
90480-15316-00 Grommet |
90480-15316-00 |
from US $1.84 |
||
| replacement | |||||
|
31
|
31
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.94 |
||
|
32
|
32
95806-06055-00 Bolt, Flange |
95806-06055-00 |
from US $1.56 |
||
| replacement | |||||
|
32
|
32
95817-06055-00 Bolt, Flange |
95817-06055-00 |
from US $1.56 |
||
|
33
|
33
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
33
|
33
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
34
|
34
950-26060-25-00
Bolt, Flange
|
950-26060-25-00 |
— | ||
| replacements | |||||
|
34
|
34
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
34
|
34
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
|
35
|
35
90467-20085-00 Clip |
90467-20085-00 |
from US $1.42 |
||
|
36
|
36
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
37
|
37
90467-26111-00 Clip |
90467-26111-00 |
US $6.21 |
||
|
38
|
38
92503-06015-00 Screw, Pan Head |
92503-06015-00 |
from US $1.07 |
||
| replacement | |||||
|
38
|
38
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
39
|
39
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
40
|
40
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
41
|
41
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
41
|
41
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
41
|
41
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
42
|
42
90467-17089-00 Clip |
90467-17089-00 |
from US $1.42 |
||
| replacement | |||||
|
42
|
42
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
43
|
43
90464-30040-00 Clamp |
90464-30040-00 |
from US $1.84 |
||
