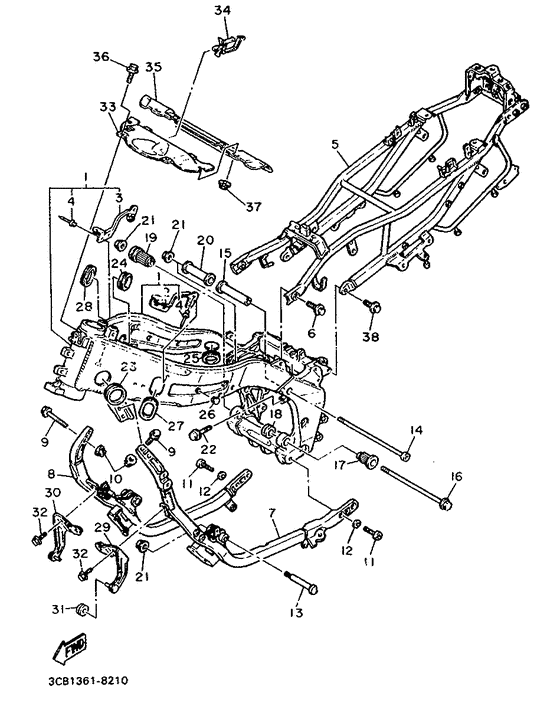

Frame Diagram Yamaha FZR1000
- Year
- 1988
- Colour
- Fine Red (FRD; 00LN)
- Model code
- 3CB1
- Sales region
- Switzerland (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2LJ-21110-13-00
Frame Comp
|
2LJ-21110-13-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
2GH-2833J-00-00 Bracket 12 |
2GH-2833J-00-00 |
US $29.84 |
||
|
03
|
03
2GH-2833K-00-00
Bracket 13
|
2GH-2833K-00-00 |
— | ||
|
04
|
04
90267-40087-00 Rivet, Blind |
90267-40087-00 |
from US $1.98 |
||
| replacement | |||||
|
04
|
04
90267-40105-00 Rivet, Blind(8R6) |
90267-40105-00 |
from US $1.98 |
||
|
05
|
05
2GH-21190-00-35
Frame, Rear
Silver |
2GH-21190-00-35 |
— | ||
|
06
|
06
90105-10459-00 Bolt, Washer Basedbased |
90105-10459-00 |
US $1.07 |
||
| replacements | |||||
|
06
|
06
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
2LJ-21140-00-35
Tube, Down
Silver |
2LJ-21140-00-35 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
08
|
08
2LJ-21150-00-35
Down Tube Comp.2
Silver |
2LJ-21150-00-35 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
Silver |
999-99999-99-00 |
— | ||
|
09
|
09
90105-10496-00 Bolt, Flange |
90105-10496-00 |
from US $5.67 |
||
| replacements | |||||
|
09
|
09
95817-10060-00 Bolt, Flange |
95817-10060-00 |
from US $2.72 |
||
|
09
|
09
90105-10169-00 Bolt, Flange |
90105-10169-00 |
from US $5.67 |
||
|
10
|
10
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
10
|
10
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
11
|
11
90110-08150-00 Bolt |
90110-08150-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
12
|
12
90201-086J0-00 Washer, Plate |
90201-086J0-00 |
from US $1.35 |
||
|
13
|
13
90109-103E4-00
Bolt
|
90109-103E4-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90110-10154-00
Bolt, Hex Skt Headsocket Head
|
90110-10154-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90387-113T1-00
Collar
|
90387-113T1-00 |
— | ||
|
16
|
16
90105-10476-00
Bolt, Washer Based
|
90105-10476-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
1UF-2139X-00-00
Damper
|
1UF-2139X-00-00 |
— | ||
|
18
|
18
1UF-2139U-00-00
Damper 2
|
1UF-2139U-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
2GH-15316-00-00
Damper, Eng Mount 1Ngine Mount
|
2GH-15316-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1WG-21459-00-00 Spacer |
1WG-21459-00-00 |
US $41.58 |
||
|
21
|
21
901-79102-47-00
Nut, Flange
|
901-79102-47-00 |
— | ||
| replacements | |||||
|
21
|
21
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
21
|
21
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
|
22
|
22
90105-08475-00
Bolt, Washer Based
|
90105-08475-00 |
— | ||
|
23
|
23
90480-35394-00 Grommet |
90480-35394-00 |
from US $5.51 |
||
| replacement | |||||
|
23
|
23
90480-35526-00 Grommet |
90480-35526-00 |
from US $6.23 |
||
|
24
|
24
2GH-2117M-00-00
Cover 2
|
2GH-2117M-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
2GH-2117T-00-00
Cover 5
|
2GH-2117T-00-00 |
— | ||
|
26
|
26
90338-15202-00 Plug (2Gh) |
90338-15202-00 |
from US $3.54 |
||
|
27
|
27
2GH-2117N-00-00 Cover 3 |
2GH-2117N-00-00 |
US $3.76 |
||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
2GH-2117R-00-00
Cover 4
|
2GH-2117R-00-00 |
— | ||
|
29
|
29
2GH-2136A-00-00
Bracket, Cooler 1
|
2GH-2136A-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
2GH-2136E-00-00 Bracket, Cooler 2 |
2GH-2136E-00-00 |
US $29.11 |
||
|
31
|
31
90480-13383-00 Grommet |
90480-13383-00 |
from US $2.41 |
||
| replacement | |||||
|
31
|
31
904-80134-28-00 Grommet(80K) |
904-80134-28-00 |
from US $2.41 |
||
|
32
|
32
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
33
|
33
2GH-1246A-00-00
Cover 1
|
2GH-1246A-00-00 |
— | ||
|
34
|
34
90464-16025-00 Clamp |
90464-16025-00 |
from US $1.52 |
||
|
35
|
35
2GH-1246E-00-00
Cover 2
|
2GH-1246E-00-00 |
— | ||
|
36
|
36
901-19060-61-00
Bolt, With Washer
|
901-19060-61-00 |
— | ||
| replacement | |||||
|
36
|
36
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
37
|
37
95702-06600-00 Nut, Flange |
95702-06600-00 |
from US $3.68 |
||
| replacement | |||||
|
37
|
37
95707-06600-00 Nut, W/ Washer |
95707-06600-00 |
from US $3.68 |
||
|
38
|
38
90105-10499-00 Bolt, Flange |
90105-10499-00 |
from US $1.84 |
||
| replacements | |||||
|
38
|
38
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
|
38
|
38
90105-10634-00 Bolt, Flange |
90105-10634-00 |
from US $1.84 |
||
