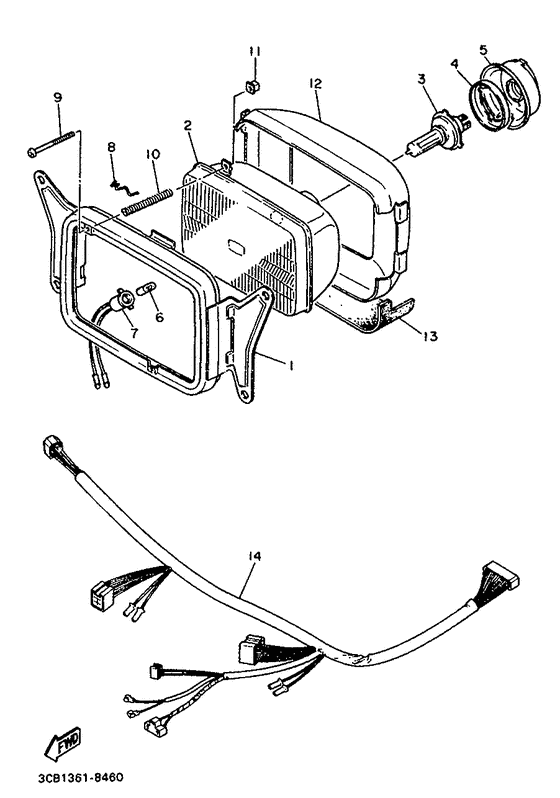

Headlight Diagram Yamaha FZR1000
- Year
- 1988
- Colour
- Fine Red (FRD; 00LN)
- Model code
- 3CB1
- Sales region
- Switzerland (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2LF-84315-00-00
Rim, Headlight
|
2LF-84315-00-00 |
— | ||
|
02
|
02
11U-84321-G0-00
Lens Assy
|
11U-84321-G0-00 |
— | ||
|
04
|
04
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
05
|
05
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
07
|
07
2LF-84312-00-00
Holder, Socket
|
2LF-84312-00-00 |
— | ||
|
08
|
08
14T-84124-00-00 Set Spring (5G2-84324-A0) |
14T-84124-00-00 |
from US $7.08 |
||
|
09
|
09
43F-84131-00-00 Screw, Rim Adjuster |
43F-84131-00-00 |
from US $5.97 |
||
|
10
|
10
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
11
|
11
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
12
|
12
2LF-84396-00-00
Cover
|
2LF-84396-00-00 |
— | ||
|
13
|
13
2LF-84345-00-00
Damper, Headlight
|
2LF-84345-00-00 |
— | ||
|
14
|
14
2LF-84359-00-00
Cord, Headlight
|
2LF-84359-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
