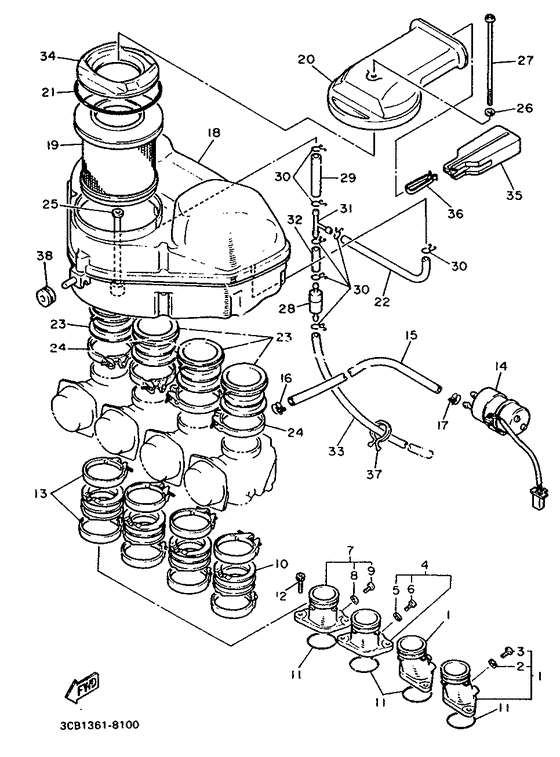

Intake Diagram Yamaha FZR1000
- Year
- 1988
- Colour
- Fine Red (FRD; 00LN)
- Model code
- 3CB1
- Sales region
- Switzerland (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2LE-13586-00-00
Joint, Carburetor 1
1,2 |
2LE-13586-00-00 |
— | ||
|
02
|
02
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
03
|
03
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
04
|
04
3CB-13596-00-00
Joint, Carburetor 2
3 |
3CB-13596-00-00 |
— | ||
|
05
|
05
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
06
|
06
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
07
|
07
3LE-13596-00-00
Joint, Carburetor 2
4 |
3LE-13596-00-00 |
— | ||
|
08
|
08
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
09
|
09
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
10
|
10
2GH-13597-00-00
Joint, Carb 3
|
2GH-13597-00-00 |
— | ||
|
11
|
11
932-10406-59-00 O-Ring |
932-10406-59-00 |
from US $6.24 |
||
|
12
|
12
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
13
|
13
1AE-13575-00-00 Hose Clamp Assy |
1AE-13575-00-00 |
from US $7.07 |
||
| replacement | |||||
|
13
|
13
90450-53005-00 Hose Clamp Assy |
90450-53005-00 |
from US $9.78 |
||
|
14
|
14
2GH-13907-00-00 Fuel Pump Comp |
2GH-13907-00-00 |
from US $442.30 |
||
| replacement | |||||
|
14
|
14
3CV-13907-00-00 Fuel Pump Comp |
3CV-13907-00-00 |
US $727.47 |
||
|
15
|
15
90445-112F1-00 Hose (L620) |
90445-112F1-00 |
US $27.61 |
||
|
16
|
16
90460-12256-00 Clamp,Hose |
90460-12256-00 |
from US $8.21 |
||
| replacement | |||||
|
16
|
16
90450-12002-00 Hose Clamp Assy |
90450-12002-00 |
from US $8.36 |
||
|
17
|
17
90460-11149-00 Clip |
90460-11149-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90467-10135-00 Clip |
90467-10135-00 |
from US $1.39 |
||
|
18
|
18
2GH-14401-00-00
Inactive Part Number Assembly
|
2GH-14401-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
1AE-14451-00-00 Element, Air Cleaner |
1AE-14451-00-00 |
from US $37.71 |
||
|
20
|
20
2GH-14422-00-00
Cap, Cleaner Case 2
|
2GH-14422-00-00 |
— | ||
|
21
|
21
1AE-14452-00-00 Seal |
1AE-14452-00-00 |
from US $9.49 |
||
| replacement | |||||
|
21
|
21
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $11.12 |
||
|
22
|
22
90445-11288-00 Hose (L210) |
90445-11288-00 |
from US $5.81 |
||
| replacement | |||||
|
22
|
22
904-45110-F5-00 Hose (L210) |
904-45110-F5-00 |
from US $5.81 |
||
|
23
|
23
2GH-14453-01-00 Joint, Air Cleaner 1 |
2GH-14453-01-00 |
from US $24.51 |
||
|
24
|
24
90460-58015-00 Hose Clamp Assy |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
24
|
24
90450-58002-00 Hose Clamp Assy |
90450-58002-00 |
from US $4.53 |
||
|
25
|
25
1AE-14443-00-00 Collar |
1AE-14443-00-00 |
US $25.04 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
27
|
27
92511-06160-00 Screw, Pan Head |
92511-06160-00 |
US $9.97 |
||
| replacement | |||||
|
27
|
27
98517-06160-00 Screw, Pan Head |
98517-06160-00 |
US $9.97 |
||
|
28
|
28
4X7-2149Y-00-00 Filter Assy |
4X7-2149Y-00-00 |
from US $12.48 |
||
|
29
|
29
90445-112E9-00 Hose (L100) |
90445-112E9-00 |
from US $3.68 |
||
| replacement | |||||
|
29
|
29
90445-11293-00 Hose (L100) |
90445-11293-00 |
from US $3.68 |
||
|
30
|
30
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
30
|
30
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
30
|
30
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
31
|
31
90413-07007-00 Way 3 |
90413-07007-00 |
from US $3.26 |
||
|
32
|
32
90445-11262-00 Hose (L30) |
90445-11262-00 |
from US $2.13 |
||
| replacement | |||||
|
32
|
32
90445-11795-00 Hose (L30) |
90445-11795-00 |
from US $2.13 |
||
|
33
|
33
90445-112F8-00
Hose
|
90445-112F8-00 |
— | ||
|
34
|
34
2GH-14432-00-00
Silencer, Inner
|
2GH-14432-00-00 |
— | ||
|
35
|
35
2LF-1441F-00-00
Partition, Air Cleaner Case
|
2LF-1441F-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
2AK-14487-00-00
Spring
|
2AK-14487-00-00 |
— | ||
|
37
|
37
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
37
|
37
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
38
|
38
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
