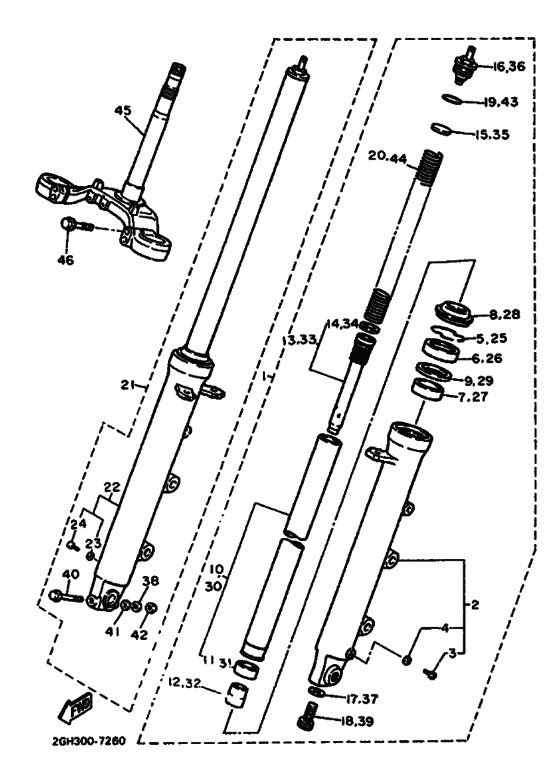

Front fork Diagram Yamaha FZR1000
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 3DV1
- Sales region
- Europe (020)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GH-23102-00-00
Front Fork Assembly L
|
2GH-23102-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2GH-23126-00-00
Tube, Outer (Left)
|
2GH-23126-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
3
|
3
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
3
|
3
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
4
|
4
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
5
|
5
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
6
|
6
36Y-23145-00-00 Oil Seal |
36Y-23145-00-00 |
from US $25.81 |
||
| replacement | |||||
|
6
|
6
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
7
|
7
36Y-23125-10-00 Metal, Slide 1 |
36Y-23125-10-00 |
from US $23.31 |
||
| replacement | |||||
|
7
|
7
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
8
|
8
36Y-23144-00-00 Seal, Dust |
36Y-23144-00-00 |
from US $20.99 |
||
| replacement | |||||
|
8
|
8
3XV-23144-50-00 Seal, Dust |
3XV-23144-50-00 |
from US $28.28 |
||
|
9
|
9
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
10
|
10
2GH-23110-00-00
Inner Tube 1
|
2GH-23110-00-00 |
— | ||
|
11
|
11
36Y-23171-00-00 Piston, Front Fork |
36Y-23171-00-00 |
from US $31.59 |
||
|
12
|
12
2GH-23173-00-00 Spindle, Taper |
2GH-23173-00-00 |
US $14.09 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
2GH-23170-00-00
Cylinder, Frtfrk Front Fork
|
2GH-23170-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
36Y-23157-00-00
Ring, Piston Frtfrk
|
36Y-23157-00-00 |
— | ||
|
15
|
15
2GH-23149-00-00 Washer, Spring Upr |
2GH-23149-00-00 |
from US $8.08 |
||
|
16
|
16
2GH-23111-00-00
Bolt, Cap
|
2GH-23111-00-00 |
— | ||
|
17
|
17
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
18
|
18
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
19
|
19
36Y-23147-00-00 O-Ring |
36Y-23147-00-00 |
US $8.46 |
||
|
20
|
20
2GH-23141-00-00
Spring, Front Fork
|
2GH-23141-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
2GH-23103-00-00
Front Fork Assembly R
|
2GH-23103-00-00 |
— | ||
|
22
|
22
2GH-23136-00-00
Tube, Outer (Right)
|
2GH-23136-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
24
|
24
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
24
|
24
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
24
|
24
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
25
|
25
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
26
|
26
36Y-23145-00-00 Oil Seal |
36Y-23145-00-00 |
from US $25.81 |
||
| replacement | |||||
|
26
|
26
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
27
|
27
36Y-23125-10-00 Metal, Slide 1 |
36Y-23125-10-00 |
from US $23.31 |
||
| replacement | |||||
|
27
|
27
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
28
|
28
36Y-23144-00-00 Seal, Dust |
36Y-23144-00-00 |
from US $20.99 |
||
| replacement | |||||
|
28
|
28
3XV-23144-50-00 Seal, Dust |
3XV-23144-50-00 |
from US $28.28 |
||
|
29
|
29
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
30
|
30
2GH-23110-00-00
Inner Tube 1
|
2GH-23110-00-00 |
— | ||
|
31
|
31
36Y-23171-00-00 Piston, Front Fork |
36Y-23171-00-00 |
from US $31.59 |
||
|
32
|
32
2GH-23173-00-00 Spindle, Taper |
2GH-23173-00-00 |
US $14.09 |
||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
2GH-23170-00-00
Cylinder, Frtfrk Front Fork
|
2GH-23170-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
36Y-23157-00-00
Ring, Piston Frtfrk
|
36Y-23157-00-00 |
— | ||
|
35
|
35
2GH-23149-00-00 Washer, Spring Upr |
2GH-23149-00-00 |
from US $8.08 |
||
|
36
|
36
2GH-23111-00-00
Bolt, Cap
|
2GH-23111-00-00 |
— | ||
|
37
|
37
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
38
|
38
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
39
|
39
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
40
|
40
1UJ-23128-00-00
Bolt, Axle Holder
|
1UJ-23128-00-00 |
— | ||
|
41
|
41
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
41
|
41
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
42
|
42
95311-08600-00 Nut |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
42
|
42
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
42
|
42
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
43
|
43
36Y-23147-00-00 O-Ring |
36Y-23147-00-00 |
US $8.46 |
||
|
44
|
44
2GH-23141-00-00
Spring, Front Fork
|
2GH-23141-00-00 |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
2GH-23340-00-00
Under Bracketcomp
|
2GH-23340-00-00 |
— | ||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
1AE-23128-00-00 Bolt, Flange |
1AE-23128-00-00 |
from US $1.56 |
||
| replacement | |||||
|
46
|
46
958-14080-40-00 Bolt, Flange |
958-14080-40-00 |
from US $1.56 |
||
