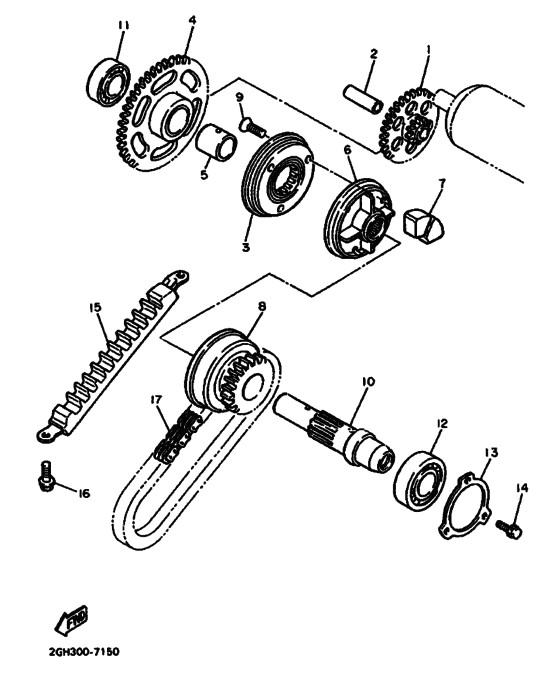

Starter Diagram Yamaha FZR1000
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 3DV1
- Sales region
- Europe (020)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GH-15512-00-00
Gear, Idler 1
|
2GH-15512-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
1AE-15521-00-00
Shaft 1
|
1AE-15521-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
2GH-15590-00-00
Starter Chain Guidass''y
|
2GH-15590-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
2GH-15517-00-00
Gear, Idler 2
|
2GH-15517-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
90387-202A7-00
Collar
|
90387-202A7-00 |
— | ||
|
6
|
6
2GH-15524-00-00
Wheel, Starter
|
2GH-15524-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
4H7-16155-01-00 Absorber 1 |
4H7-16155-01-00 |
from US $6.38 |
||
|
8
|
8
2GH-15519-00-00
Sprocket, Starter 2
|
2GH-15519-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90151-08022-00 Screw, Countersunk |
90151-08022-00 |
from US $1.98 |
||
|
10
|
10
1AE-15522-01-00
Shaft 2
|
1AE-15522-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
93306-00435-00 Bearing |
93306-00435-00 |
from US $13.18 |
||
| replacement | |||||
|
11
|
11
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.48 |
||
|
12
|
12
93306-20541-00 Bearing |
93306-20541-00 |
from US $18.86 |
||
|
13
|
13
1AE-15381-00-00 Plate, Bearing Cover |
1AE-15381-00-00 |
US $15.59 |
||
|
14
|
14
950-26060-16-00
Bolt, Flange
|
950-26060-16-00 |
— | ||
| replacement | |||||
|
14
|
14
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
15
|
15
1AE-11474-00-00
Guide, Upper
|
1AE-11474-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
95816-06014-00 Bolt, Flange |
95816-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
17
|
17
36Y-11456-00-00 Chain, Primary |
36Y-11456-00-00 |
from US $172.03 |
||
| replacement | |||||
|
17
|
17
4FM-11456-00-00 Chain, Primary |
4FM-11456-00-00 |
from US $172.03 |
||
