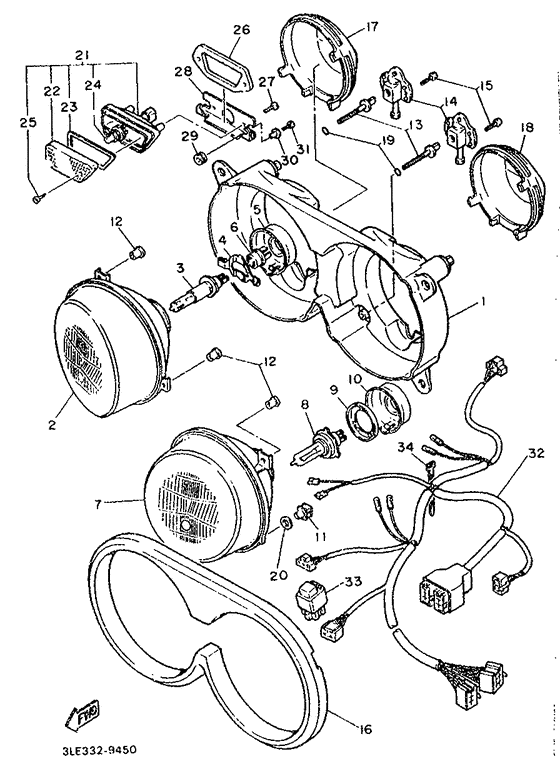

Headlight Diagram Yamaha FZR1000
- Year
- 1989
- Colour
- Silky White (SW; 00GE)
- Model code
- 3LF1
- Sales region
- France (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GM-84330-00-00
Body Assembly
|
3GM-84330-00-00 |
— | ||
|
02
|
02
3LF-8432A-00-00
Lens Assy
|
3LF-8432A-00-00 |
— | ||
|
04
|
04
2LA-84375-00-00
Fitting Plate, Bulb
|
2LA-84375-00-00 |
— | ||
|
05
|
05
2GH-84397-00-00
Cover, Socket
|
2GH-84397-00-00 |
— | ||
|
06
|
06
2LA-84393-00-00
Holder, Bulb
|
2LA-84393-00-00 |
— | ||
|
07
|
07
3LF-84320-00-00
Lens Assy
|
3LF-84320-00-00 |
— | ||
| replacement | |||||
|
07
|
07
3LE-84320-00-00
Lens Assy
|
3LE-84320-00-00 |
— | ||
|
09
|
09
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
10
|
10
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
11
|
11
3AJ-8431U-00-00 Holder |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
12
|
12
51L-84334-00-00 Nut, Adjusting |
51L-84334-00-00 |
from US $10.55 |
||
|
13
|
13
2AX-84331-00-00
Screw, Rim Adjusting
|
2AX-84331-00-00 |
— | ||
|
14
|
14
46X-8430M-00-00 Gear Unit Assembly |
46X-8430M-00-00 |
US $30.13 |
||
| replacement | |||||
|
14
|
14
3LD-8430M-00-00 Gear Unit Assembly |
3LD-8430M-00-00 |
US $30.13 |
||
|
15
|
15
97706-40616-00 Screw, Tapping |
97706-40616-00 |
from US $1.26 |
||
| replacement | |||||
|
15
|
15
97707-40616-00 Screw, Tapping |
97707-40616-00 |
from US $1.42 |
||
|
16
|
16
3HE-84366-00-00
Damper, Headlight 1
|
3HE-84366-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
2LA-84397-00-00
Cover, Socket
|
2LA-84397-00-00 |
— | ||
|
18
|
18
2LA-84397-10-00
Cover, Socket
|
2LA-84397-10-00 |
— | ||
|
19
|
19
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
20
|
20
3GM-84344-00-00
Washer, Plain
|
3GM-84344-00-00 |
— | ||
|
21
|
21
3GM-84301-00-00 Pilot Light Assy 1 |
3GM-84301-00-00 |
from US $56.66 |
||
| replacement | |||||
|
21
|
21
3GM-84301-01-00 Pilot Light Assy 1 |
3GM-84301-01-00 |
from US $56.23 |
||
|
22
|
22
3GM-84321-00-00 Lens Assy |
3GM-84321-00-00 |
from US $6.23 |
||
|
23
|
23
3GM-84322-00-00
Gasket, Lens
|
3GM-84322-00-00 |
— | ||
| replacement | |||||
|
23
|
23
1TX-83313-00-00
Gasket, Flshr Lens
|
1TX-83313-00-00 |
— | ||
|
24
|
24
2JE-84744-00-00 Bulb (12V-5W) |
2JE-84744-00-00 |
from US $2.83 |
||
| replacements | |||||
|
24
|
24
4SV-84347-00-00 Bulb (12V-5W) |
4SV-84347-00-00 |
from US $3.05 |
||
|
24
|
24
1WD-H4744-00-00 Bulb (12V-5W) |
1WD-H4744-00-00 |
from US $6.23 |
||
|
24
|
24
1RC-84347-00-00 Bulb (12V-5W) |
1RC-84347-00-00 |
from US $5.41 |
||
|
24
|
24
1JD-H4347-00-00 Bulb (W3W-12V) |
1JD-H4347-00-00 |
US $4.68 |
||
|
24
|
24
3WW-H4347-00-00
Bulb
|
3WW-H4347-00-00 |
— | ||
|
25
|
25
3GM-84192-00-00
Screw(M4,l=12)
|
3GM-84192-00-00 |
— | ||
|
26
|
26
3GM-84367-00-00
Damper, Headlight 2
|
3GM-84367-00-00 |
— | ||
|
27
|
27
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
27
|
27
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
28
|
28
3GM-8431R-00-00
Stay, Setting
|
3GM-8431R-00-00 |
— | ||
|
29
|
29
90480-10517-00 Grommet |
90480-10517-00 |
from US $1.98 |
||
|
30
|
30
90387-052U5-00 Collar |
90387-052U5-00 |
from US $1.98 |
||
| replacement | |||||
|
30
|
30
903-87050-26-00 Collar |
903-87050-26-00 |
from US $1.40 |
||
|
31
|
31
90167-05037-00 Screw, Tapping |
90167-05037-00 |
from US $1.21 |
||
|
32
|
32
3LE-84359-00-00
Cord, Headlight
|
3LE-84359-00-00 |
— | ||
|
33
|
33
25G-81950-01-00 Relay Assy (25G-01) |
25G-81950-01-00 |
from US $34.43 |
||
| replacement | |||||
|
33
|
33
25G-81950-02-00 реле в сборереле в сборе |
25G-81950-02-00 |
from US $33.05 |
||
|
34
|
34
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
