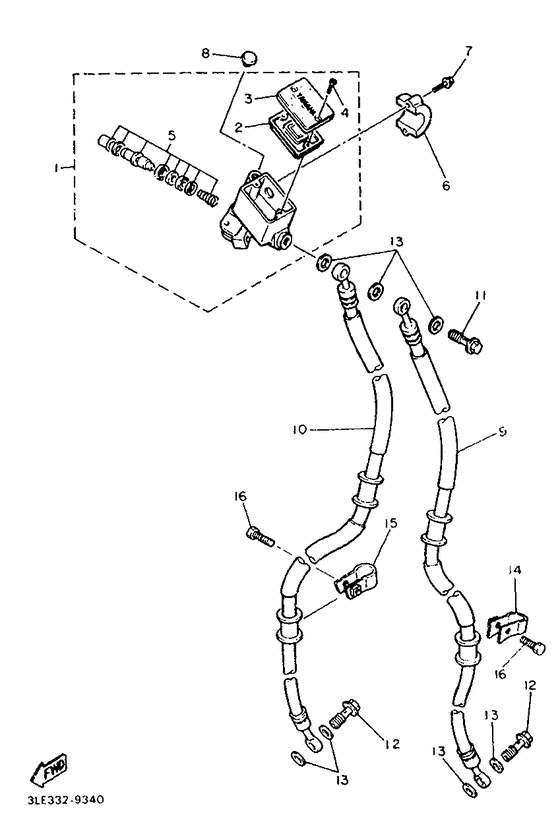

Front master cylinder Diagram Yamaha FZR1000
- Year
- 1990
- Colour
- Silky White (SW; 00GE)
- Model code
- 3LH2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3SD-25870-00-00
Master Cylinder Sub Assy
|
3SD-25870-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3SD-25870-20-00
Mstr. Cylinder. Sub Assemblysub
|
3SD-25870-20-00 |
— | ||
|
02
|
02
4K0-25854-00-00
Diaphragm, Reservoir
|
4K0-25854-00-00 |
— | ||
| replacement | |||||
|
02
|
02
4HM-25854-00-00 Diaphragm, Reservoir |
4HM-25854-00-00 |
from US $17.48 |
||
|
03
|
03
3GM-25852-01-00
Cap, Reservoir
|
3GM-25852-01-00 |
— | ||
| replacement | |||||
|
03
|
03
3GM-25852-02-00 Cap, Reservoir |
3GM-25852-02-00 |
from US $15.84 |
||
|
04
|
04
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
04
|
04
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
05
|
05
4K0-W0041-50-00 Cylinder Kit, Master |
4K0-W0041-50-00 |
from US $51.26 |
||
|
06
|
06
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
07
|
07
950-26060-25-00
Bolt, Flange
|
950-26060-25-00 |
— | ||
| replacements | |||||
|
07
|
07
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
07
|
07
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
|
08
|
08
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
09
|
09
3GM-25872-00-00
Hose, Brake
|
3GM-25872-00-00 |
— | ||
| replacements | |||||
|
09
|
09
999-99025-56-00
PIN, PAD
|
999-99025-56-00 |
— | ||
|
09
|
09
3GM-25872-01-00
Hose, Brake 1
|
3GM-25872-01-00 |
— | ||
|
10
|
10
3GM-25873-00-00
Hose, Brake 2
|
3GM-25873-00-00 |
— | ||
| replacement | |||||
|
10
|
10
3GM-25873-01-00
Hose, Brake 2
|
3GM-25873-01-00 |
— | ||
|
11
|
11
90401-10095-00 Bolt, Union |
90401-10095-00 |
from US $9.49 |
||
| replacement | |||||
|
11
|
11
90401-10038-00 Bolt, Union |
90401-10038-00 |
from US $9.49 |
||
|
12
|
12
904-01100-96-00
Bolt, Union
|
904-01100-96-00 |
— | ||
| replacement | |||||
|
12
|
12
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
13
|
13
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
13
|
13
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
14
|
14
3EN-25875-00-00 Holder, Brake Hose 1 |
3EN-25875-00-00 |
US $13.07 |
||
| replacement | |||||
|
14
|
14
3EN-25875-20-00 Holder, Brake Hose 1 |
3EN-25875-20-00 |
US $9.20 |
||
|
15
|
15
2RB-25876-00-00
Holder, Brake Hose 2
|
2RB-25876-00-00 |
— | ||
|
16
|
16
95023-06025-00 Bolt, Flange (Small Head) |
95023-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
