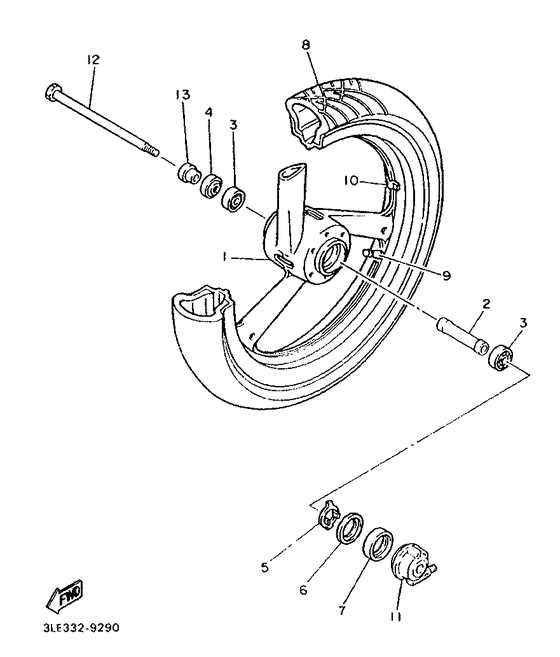

Front wheel Diagram Yamaha FZR1000
- Year
- 1990
- Colour
- Silky White (SW; 00GE)
- Model code
- 3LH2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GM-25168-00-UA
Wheel, Cast Front
Ur cast wheel white |
3GM-25168-00-UA |
— | ||
|
01
|
01
3GM-25168-00-WG
Wheel, Cast Front
Ur hi tech silver |
3GM-25168-00-WG |
— | ||
|
02
|
02
90560-17356-00 Spacer |
90560-17356-00 |
from US $11.90 |
||
|
03
|
03
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
04
|
04
93102-25017-00 Oil Seal |
93102-25017-00 |
from US $3.72 |
||
|
05
|
05
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $4.43 |
||
|
06
|
06
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $3.33 |
||
|
07
|
07
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $10.83 |
||
|
08
|
08
94113-174U1-00
Tire (130/60 Vr17 V280)
Ur dunlop |
94113-174U1-00 |
— | ||
| replacements | |||||
|
08
|
08
94113-175Y7-00
Tire
Ur dunlop |
94113-175Y7-00 |
— | ||
|
08
|
08
999-99999-99-00
Not Available
Ur dunlop |
999-99999-99-00 |
— | ||
|
08
|
08
94113-174U2-00
Tire
Ur bridgestone |
94113-174U2-00 |
— | ||
| replacement | |||||
|
08
|
08
94113-176X4-00
Tire
Ur bridgestone |
94113-176X4-00 |
— | ||
|
09
|
09
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
10
|
10
29L-25398-00-00
Balancer, Wheel (10G)
Un |
29L-25398-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5MT-25398-00-00 Balancer, Wheel (10G)Un |
5MT-25398-00-00 |
from US $8.46 |
||
|
10
|
10
29L-25398-10-00
Balancer, Wheel (20G)
Un |
29L-25398-10-00 |
— | ||
| replacement | |||||
|
10
|
10
5MT-25398-10-00 Balancer, Wheel (20G)Un |
5MT-25398-10-00 |
from US $8.46 |
||
|
10
|
10
29L-25398-20-00 Balancer, Wheel (30G)Un |
29L-25398-20-00 |
from US $7.65 |
||
| replacement | |||||
|
10
|
10
5MT-25398-20-00 Balancer, Wheel (30G)Un |
5MT-25398-20-00 |
from US $8.46 |
||
|
11
|
11
3MA-25190-00-00 Gear Unit Assy |
3MA-25190-00-00 |
from US $84.42 |
||
| replacement | |||||
|
11
|
11
4HM-25190-20-00 Gear Unit Assy |
4HM-25190-20-00 |
from US $84.42 |
||
|
12
|
12
3GM-25181-00-00 Axle, Wheel |
3GM-25181-00-00 |
from US $53.80 |
||
| replacement | |||||
|
12
|
12
3GM-25181-03-00 Axle, Wheel |
3GM-25181-03-00 |
from US $83.59 |
||
|
13
|
13
90387-17530-00 Collar |
90387-17530-00 |
from US $8.93 |
||
