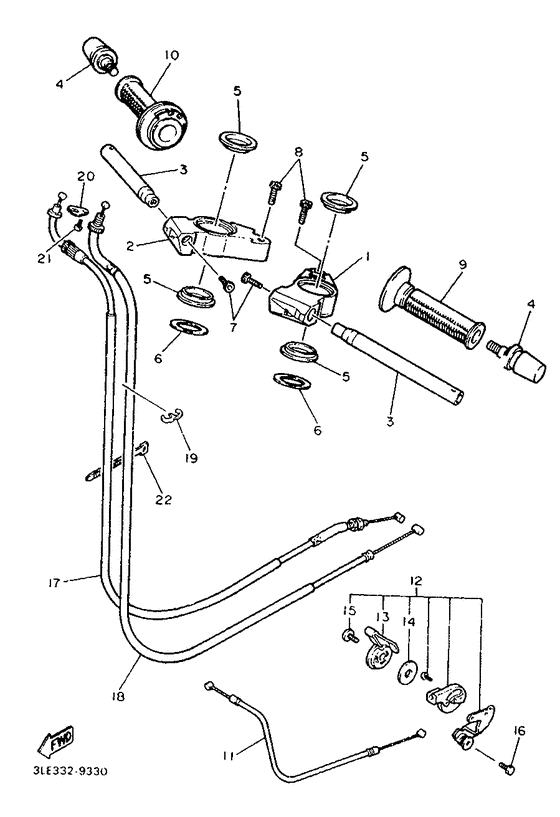

Steering handle & cable Diagram Yamaha FZR1000
- Year
- 1990
- Colour
- Silky White (SW; 00GE)
- Model code
- 3LH2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GM-26121-00-00
Handlebar Lh (Left)
|
3GM-26121-00-00 |
— | ||
|
02
|
02
3GM-26122-00-00
Handlebar Rh (Rt.)
|
3GM-26122-00-00 |
— | ||
|
03
|
03
3GM-26111-00-00
Handlebar
|
3GM-26111-00-00 |
— | ||
| replacement | |||||
|
03
|
03
3GM-26111-50-00
Handlebar
|
3GM-26111-50-00 |
— | ||
|
04
|
04
36Y-26246-00-00 End, Grip |
36Y-26246-00-00 |
from US $48.22 |
||
|
05
|
05
3GM-26113-00-00
Damper
|
3GM-26113-00-00 |
— | ||
|
06
|
06
90201-435M0-00
Washer, Plate
|
90201-435M0-00 |
— | ||
|
07
|
07
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
07
|
07
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
08
|
08
90109-082A1-00 Bolt |
90109-082A1-00 |
from US $4.11 |
||
|
09
|
09
47X-26241-00-00 Grip |
47X-26241-00-00 |
from US $15.58 |
||
|
10
|
10
47X-26240-00-00 Grip Assembly |
47X-26240-00-00 |
from US $48.91 |
||
|
11
|
11
3GM-26331-00-00
Cable, Starter 1
|
3GM-26331-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3GM-26331-01-00
Cable, Starter 1
|
3GM-26331-01-00 |
— | ||
|
12
|
12
3GM-83940-00-00 Starter Assy |
3GM-83940-00-00 |
US $112.18 |
||
| replacement | |||||
|
12
|
12
3GM-83940-01-00 Starter Assy |
3GM-83940-01-00 |
US $112.18 |
||
|
13
|
13
1WG-83941-00-00
Lever, Starter
|
1WG-83941-00-00 |
— | ||
| replacement | |||||
|
13
|
13
1WG-83941-01-00 Lever, Starter |
1WG-83941-01-00 |
US $68.23 |
||
|
14
|
14
90209-10131-00 Washer |
90209-10131-00 |
from US $1.84 |
||
|
15
|
15
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.39 |
||
|
16
|
16
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
17
|
17
3GM-26311-00-00 Cable, Throttle 1 |
3GM-26311-00-00 |
US $46.96 |
||
|
18
|
18
3GM-26312-00-00
Cable, Throttle 2
|
3GM-26312-00-00 |
— | ||
|
19
|
19
90464-60067-00 Clamp |
90464-60067-00 |
from US $1.70 |
||
|
20
|
20
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.47 |
||
|
21
|
21
985-06050-08-00
Screw, Pan Head
|
985-06050-08-00 |
— | ||
| replacement | |||||
|
21
|
21
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
22
|
22
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
