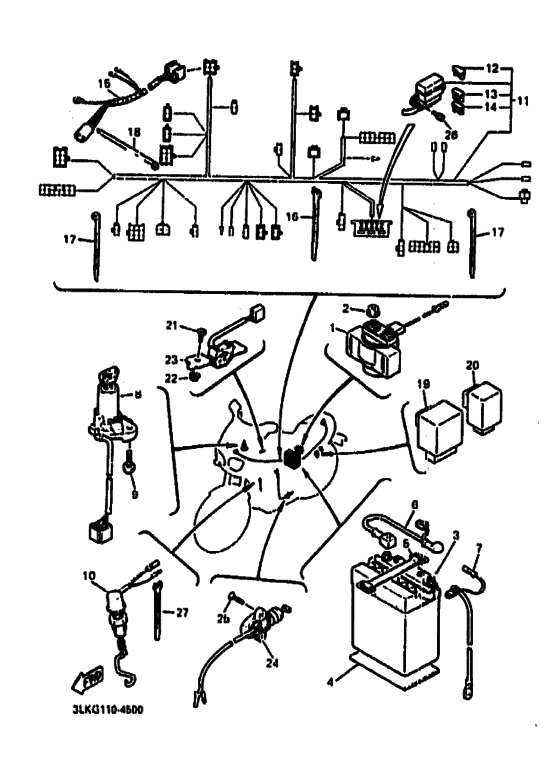

Electrical 2 Diagram Yamaha FZR1000
- Year
- 1995
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 3LKM
- Sales region
- Europe (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36Y-81940-00-00 Starter Relay Assy |
36Y-81940-00-00 |
from US $87.73 |
||
|
2
|
2
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
2
|
2
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
3
|
3
4AH-82100-00-00
Battery Assy (Ytx14-Bs)
UR |
4AH-82100-00-00 |
— | ||
| replacements | |||||
|
3
|
3
YTX-14BS0-00-00
Ytx14Bs Yuasa Battery -Sa
UR |
YTX-14BS0-00-00 |
— | ||
|
3
|
3
GTX-14BS0-00-00
CB12A-A GS BATTERY
UR |
GTX-14BS0-00-00 |
— | ||
|
3
|
3
3XW-82100-00-00
Battery Assy (Ytx14-Bs)
UR FOR CANADA |
3XW-82100-00-00 |
— | ||
| replacements | |||||
|
3
|
3
YTX-14BS0-00-00
Ytx14Bs Yuasa Battery -Sa
UR FOR CANADA |
YTX-14BS0-00-00 |
— | ||
|
3
|
3
GTX-14BS0-00-00
CB12A-A GS BATTERY
UR FOR CANADA |
GTX-14BS0-00-00 |
— | ||
|
4
|
4
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
5
|
5
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.78 |
||
|
6
|
6
3GM-82115-50-00
Wire, Plus Lead
|
3GM-82115-50-00 |
— | ||
|
7
|
7
3XW-82116-00-00
Wire, Minus Lead
|
3XW-82116-00-00 |
— | ||
|
8
|
8
4NA-82501-01-00
Main Switch Steering Lock
|
4NA-82501-01-00 |
— | ||
| replacement | |||||
|
8
|
8
4NA-82501-02-00 Main Switch Steering Lock |
4NA-82501-02-00 |
from US $210 |
||
|
9
|
9
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
9
|
9
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $2.08 |
||
|
10
|
10
3GM-82530-11-00
Stop Switch Assembly
|
3GM-82530-11-00 |
— | ||
|
11
|
11
3LK-82590-20-00
Wire Harness Assembly
|
3LK-82590-20-00 |
— | ||
|
12
|
12
1AE-82151-00-00 Fuse (30A-Bl)30A-BL |
1AE-82151-00-00 |
from US $2.02 |
||
|
13
|
13
42X-82151-00-00 Fuse (10A-Bl)10A-BL |
42X-82151-00-00 |
from US $1.66 |
||
|
14
|
14
2GH-82151-00-00 Fuse (20A)20A-BL |
2GH-82151-00-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
2GV-82151-00-00 Fuse (20A-Bl)20A-BL |
2GV-82151-00-00 |
from US $1.70 |
||
|
15
|
15
3GM-82509-00-00
Wire, Sub Lead
|
3GM-82509-00-00 |
— | ||
|
16
|
16
90464-13080-00 Band |
90464-13080-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
17
|
17
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
17
|
17
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
18
|
18
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
19
|
19
3EN-81950-00-00 Relay Assy (3En-00) |
3EN-81950-00-00 |
from US $124.67 |
||
| replacements | |||||
|
19
|
19
3EN-81950-01-00 Relay Assy |
3EN-81950-01-00 |
from US $83.03 |
||
|
19
|
19
3EN-81950-02-00 Relay Assy |
3EN-81950-02-00 |
from US $77.56 |
||
|
20
|
20
4BH-8195A-00-00 Relay Assembly |
4BH-8195A-00-00 |
from US $88.92 |
||
|
21
|
21
98780-05016-00 Screw, Flat Head |
98780-05016-00 |
from US $2.13 |
||
|
22
|
22
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
23
|
23
3TJ-83964-00-00 Switch |
3TJ-83964-00-00 |
US $61.52 |
||
| replacement | |||||
|
23
|
23
3TJ-83964-10-00 Switch |
3TJ-83964-10-00 |
US $61.52 |
||
|
24
|
24
2KT-82566-01-00
Switch, Side Stand
|
2KT-82566-01-00 |
— | ||
|
25
|
25
90152-05021-00 Screw, Flat Head |
90152-05021-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
26
|
26
90159-06033-00 Screw, With Washer |
90159-06033-00 |
from US $1.70 |
||
| replacements | |||||
|
26
|
26
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
26
|
26
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
27
|
27
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
