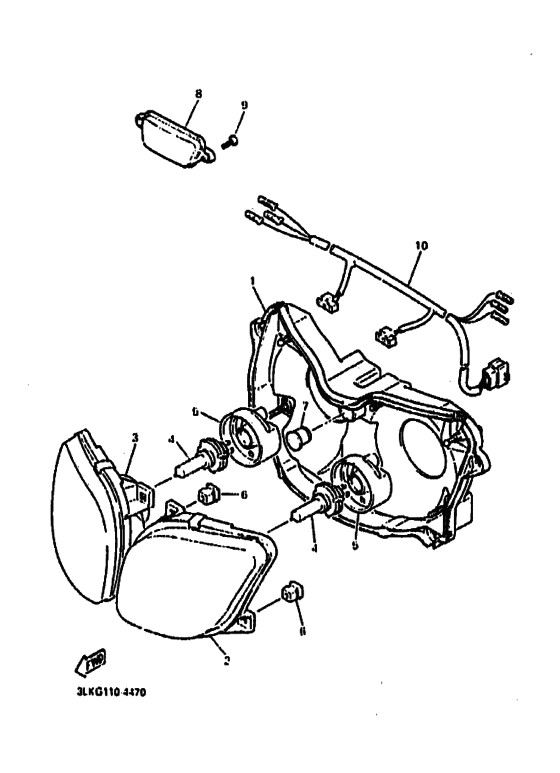

Headlight Diagram Yamaha FZR1000
- Year
- 1995
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 3LKM
- Sales region
- Europe (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZR1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4FM-84330-41-00 Body Assembly |
4FM-84330-41-00 |
US $138.15 |
||
|
2
|
2
4FM-84320-40-00 Lens Assembly |
4FM-84320-40-00 |
US $239.40 |
||
|
3
|
3
4FM-8432A-40-00 Lens Assembly |
4FM-8432A-40-00 |
US $453.69 |
||
|
4
|
4
1FM-84314-H0-00 Bulb (12V-35/35W)12V-35/35W; HALOGEN |
1FM-84314-H0-00 |
from US $57.47 |
||
| replacements | |||||
|
4
|
4
1ML-84314-00-00
Headlight Bulb 12V 35/35W
12V-35/35W; HALOGEN |
1ML-84314-00-00 |
— | ||
|
4
|
4
22B-H4314-00-00
Bulb, (Hs1 12V 35/35W)
12V-35/35W; HALOGEN |
22B-H4314-00-00 |
— | ||
|
5
|
5
4JG-84397-00-00 Cover, Socket |
4JG-84397-00-00 |
from US $14.17 |
||
|
6
|
6
51L-84334-00-00 Nut, Adjusting |
51L-84334-00-00 |
from US $10.55 |
||
|
7
|
7
90338-24112-00 Plug, Special Shape |
90338-24112-00 |
from US $2.55 |
||
|
8
|
8
3GM-84378-00-48
Cap
BLACK 2 |
3GM-84378-00-48 |
— | ||
|
9
|
9
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
10
|
10
3GM-84359-60-00
Cord, Headlight
|
3GM-84359-60-00 |
— | ||
