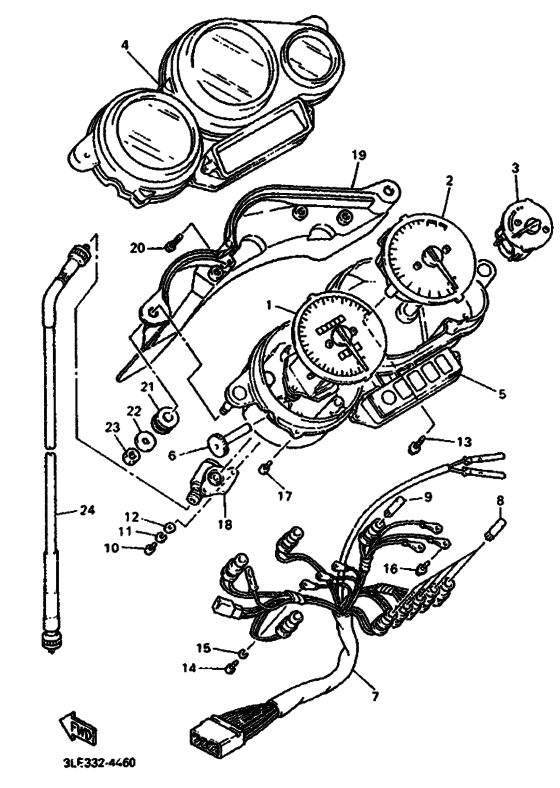

Meter Diagram Yamaha FZR1000
- Year
- 1995
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 3LKM
- Sales region
- Europe (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4FM-83570-10-00
Speedometer Assembly
UR |
4FM-83570-10-00 |
— | ||
|
1
|
1
4FM-83570-00-00
Speedometer Assy
UR FOR CANADA |
4FM-83570-00-00 |
— | ||
|
2
|
2
3GM-83540-20-00
Tachometer Assembly
|
3GM-83540-20-00 |
— | ||
|
3
|
3
4FM-83590-00-00
Water Temperature Assembly
|
4FM-83590-00-00 |
— | ||
|
4
|
4
4FM-83559-00-00
Cover, Meter
|
4FM-83559-00-00 |
— | ||
|
5
|
5
4FM-8353H-50-00
Case, Under
UR |
4FM-8353H-50-00 |
— | ||
| replacement | |||||
|
5
|
5
4FM-8353H-60-00
Case, Under (4Fm-8353H-50-00)
UR |
4FM-8353H-60-00 |
— | ||
|
5
|
5
4FM-8353H-40-00
Case, Under
UR FOR CANADA |
4FM-8353H-40-00 |
— | ||
|
6
|
6
2GH-83578-00-00 Knob, Trip Meter |
2GH-83578-00-00 |
US $15.46 |
||
|
7
|
7
3GM-83509-10-00
Socket Cord Assembly
|
3GM-83509-10-00 |
— | ||
|
8
|
8
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
8
|
8
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W |
4G1-84744-00-XX |
— | ||
|
9
|
9
2GV-83517-00-00 Bulb (12V-1.7W)12V-1.7W, T6.5 |
2GV-83517-00-00 |
from US $4.53 |
||
| replacement | |||||
|
9
|
9
3FV-83517-00-00 Bulb (12V-1.7W)12V-1.7W, T6.5 |
3FV-83517-00-00 |
from US $4.99 |
||
|
10
|
10
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
11
|
11
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
12
|
12
928-07046-00-00
Washer, Plate
|
928-07046-00-00 |
— | ||
|
13
|
13
97902-04122-00 Screw, With Washer |
97902-04122-00 |
from US $2.13 |
||
|
14
|
14
98507-03010-00 Screw, Pan Head |
98507-03010-00 |
from US $1.66 |
||
|
15
|
15
979-90031-00-00
Washer, Spring
|
979-90031-00-00 |
— | ||
|
16
|
16
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
17
|
17
90164-04023-00 Screw, Tapping(71E) |
90164-04023-00 |
from US $1.84 |
||
|
19
|
19
3GM-87278-A0-00 Cover, Meter |
3GM-87278-A0-00 |
US $52.96 |
||
|
20
|
20
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
21
|
21
90480-14585-00 Grommet |
90480-14585-00 |
from US $2.83 |
||
|
22
|
22
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
22
|
22
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
22
|
22
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
23
|
23
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
24
|
24
4FM-83550-00-00
Speedometer Cable Assembly
|
4FM-83550-00-00 |
— | ||
| replacement | |||||
|
24
|
24
4FM-83550-02-00 Speedometer Cable Assembly |
4FM-83550-02-00 |
from US $39.79 |
||
