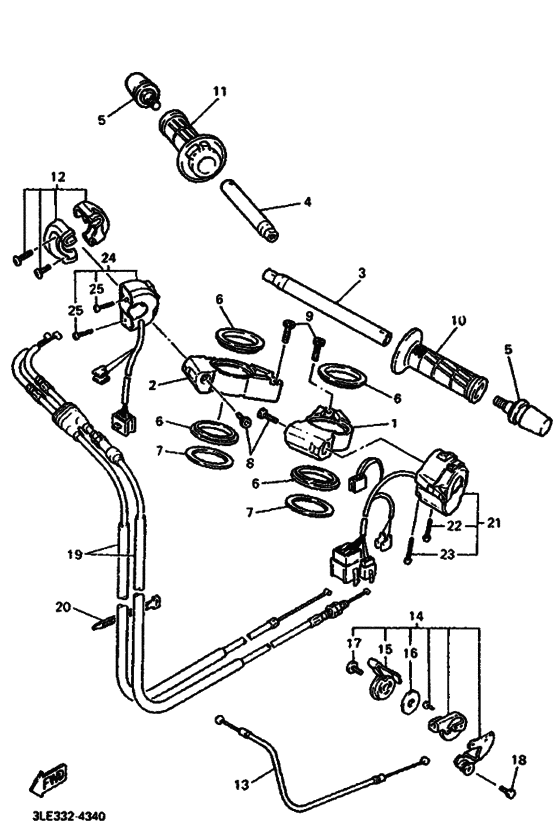

Steering handle & cable Diagram Yamaha FZR1000
- Year
- 1995
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 3LKM
- Sales region
- Europe (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-26121-51-00
Handlebar (Left)
|
3GM-26121-51-00 |
— | ||
|
2
|
2
3GM-26122-51-00
Handlebar (Right)
|
3GM-26122-51-00 |
— | ||
|
3
|
3
3GM-26111-A0-00
Handlebar
|
3GM-26111-A0-00 |
— | ||
|
4
|
4
3GM-26112-A0-00
Bar, Handle
|
3GM-26112-A0-00 |
— | ||
|
5
|
5
36Y-26246-00-00 End, Grip |
36Y-26246-00-00 |
from US $48.22 |
||
|
6
|
6
3GM-26113-50-00
Damper
|
3GM-26113-50-00 |
— | ||
|
7
|
7
90201-502P8-00
Washer, Plate
|
90201-502P8-00 |
— | ||
|
8
|
8
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
9
|
9
90109-082A1-00 Bolt |
90109-082A1-00 |
from US $4.11 |
||
|
10
|
10
4FM-26241-00-00 Grip |
4FM-26241-00-00 |
from US $31.23 |
||
| replacement | |||||
|
10
|
10
4FM-26241-01-00 Grip (Left) |
4FM-26241-01-00 |
from US $32.78 |
||
|
11
|
11
4FM-26240-00-00 Grip Assy |
4FM-26240-00-00 |
from US $48.34 |
||
| replacement | |||||
|
11
|
11
4FM-26240-01-00 Grip Assy |
4FM-26240-01-00 |
from US $48.34 |
||
|
12
|
12
3LN-26270-01-00 Cap Grip Assy |
3LN-26270-01-00 |
from US $88.70 |
||
|
13
|
13
3GM-26331-01-00
Cable, Starter 1
|
3GM-26331-01-00 |
— | ||
|
14
|
14
3GM-83940-00-00 Starter Assy |
3GM-83940-00-00 |
US $112.18 |
||
| replacement | |||||
|
14
|
14
3GM-83940-01-00 Starter Assy |
3GM-83940-01-00 |
US $112.18 |
||
|
15
|
15
1WG-83941-00-00
Lever, Starter
|
1WG-83941-00-00 |
— | ||
| replacement | |||||
|
15
|
15
1WG-83941-01-00 Lever, Starter |
1WG-83941-01-00 |
US $68.23 |
||
|
16
|
16
90209-10131-00 Washer |
90209-10131-00 |
from US $1.84 |
||
|
17
|
17
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
17
|
17
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.39 |
||
|
18
|
18
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
19
|
19
3GM-26302-00-00
Throttle Cable Assembly
|
3GM-26302-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
21
|
21
3LK-83973-10-00 Switch, Handle 3 |
3LK-83973-10-00 |
US $233.69 |
||
|
22
|
22
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
22
|
22
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
23
|
23
98506-05040-00 Screw, Pan Head |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
24
|
24
4HM-83975-00-00 Switch,handle 2 |
4HM-83975-00-00 |
from US $124.63 |
||
| replacement | |||||
|
24
|
24
4HM-83975-11-00 Switch, Handle 2 |
4HM-83975-11-00 |
from US $82.84 |
||
|
25
|
25
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
