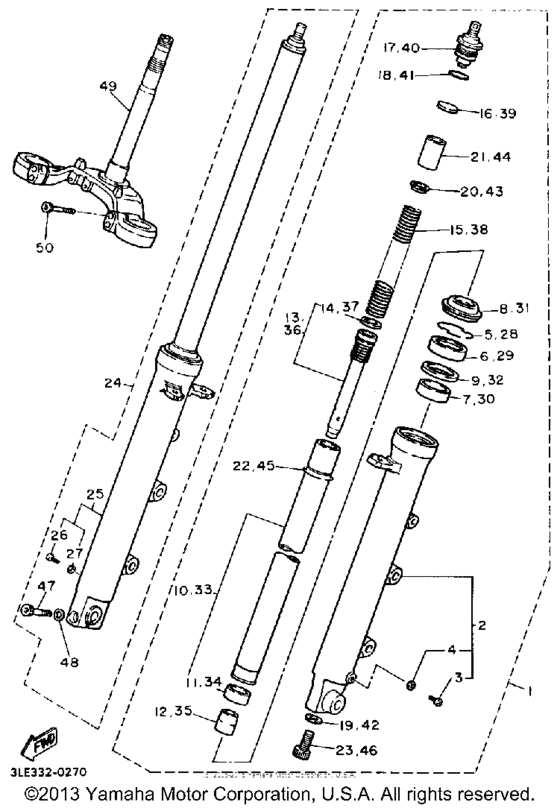

Front fork Diagram Yamaha FZR1000
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-23102-10-00
Front Fork Assembly L
|
3GM-23102-10-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3GM-23126-00-00
Tube, Outer (Left)
|
3GM-23126-00-00 |
— | ||
|
3
|
3
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
3
|
3
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
3
|
3
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
4
|
4
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
5
|
5
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
6
|
6
3GM-23145-00-00
Oil Seal
|
3GM-23145-00-00 |
— | ||
| replacements | |||||
|
6
|
6
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $12.46 |
||
|
6
|
6
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
7
|
7
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
7
|
7
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $17.86 |
||
|
8
|
8
3GM-23144-00-00
Seal, Dust
|
3GM-23144-00-00 |
— | ||
| replacement | |||||
|
8
|
8
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
9
|
9
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
10
|
10
3GM-23110-00-00 Inner Tube 1Comp.11COMP.1 |
3GM-23110-00-00 |
US $676.13 |
||
|
11
|
11
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
11
|
11
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $15.50 |
||
|
12
|
12
3GM-23173-00-00 Spindle, Taper |
3GM-23173-00-00 |
from US $24.70 |
||
|
13
|
13
3GM-23170-00-00
Cylinder, Frtfrkfront Fork
|
3GM-23170-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
3GM-23157-00-00 Ring, Piston |
3GM-23157-00-00 |
from US $7.19 |
||
|
15
|
15
3GM-23141-00-00
Spring, Front Forkfork
|
3GM-23141-00-00 |
— | ||
|
16
|
16
3GM-23149-00-00 Washer, Spring Uprupper |
3GM-23149-00-00 |
from US $7.52 |
||
|
17
|
17
3GM-23111-10-00
Bolt, Cap
|
3GM-23111-10-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
19
|
19
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
20
|
20
3GM-23142-00-00
Seat, Spring Upper
|
3GM-23142-00-00 |
— | ||
| replacement | |||||
|
20
|
20
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
21
|
21
3GM-23118-10-00
Spacer
|
3GM-23118-10-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
3GM-23153-00-00
Ring, Snap
|
3GM-23153-00-00 |
— | ||
|
23
|
23
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
24
|
24
3GM-23103-10-00
Front Fork Assembly R
|
3GM-23103-10-00 |
— | ||
|
25
|
25
3GM-23136-00-00
Tube, Outer (Right)
|
3GM-23136-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
26
|
26
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
26
|
26
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
27
|
27
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
28
|
28
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
29
|
29
3GM-23145-00-00
Oil Seal
|
3GM-23145-00-00 |
— | ||
| replacements | |||||
|
29
|
29
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $12.46 |
||
|
29
|
29
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
30
|
30
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
30
|
30
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $17.86 |
||
|
31
|
31
3GM-23144-00-00
Seal, Dust
|
3GM-23144-00-00 |
— | ||
| replacement | |||||
|
31
|
31
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
32
|
32
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
33
|
33
3GM-23110-00-00 Inner Tube 1Comp.11COMP.1 |
3GM-23110-00-00 |
US $676.13 |
||
|
34
|
34
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
34
|
34
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $15.50 |
||
|
35
|
35
3GM-23173-00-00 Spindle, Taper |
3GM-23173-00-00 |
from US $24.70 |
||
|
36
|
36
3GM-23170-00-00
Cylinder, Frtfrkfront Fork
|
3GM-23170-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
3GM-23157-00-00 Ring, Piston |
3GM-23157-00-00 |
from US $7.19 |
||
|
38
|
38
3GM-23141-00-00
Spring, Front Forkfork
|
3GM-23141-00-00 |
— | ||
|
39
|
39
3GM-23149-00-00 Washer, Spring Uprupper |
3GM-23149-00-00 |
from US $7.52 |
||
|
40
|
40
3GM-23111-10-00
Bolt, Cap
|
3GM-23111-10-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
42
|
42
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
43
|
43
3GM-23142-00-00
Seat, Spring Upper
|
3GM-23142-00-00 |
— | ||
| replacement | |||||
|
43
|
43
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
44
|
44
3GM-23118-10-00
Spacer
|
3GM-23118-10-00 |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
3GM-23153-00-00
Ring, Snap
|
3GM-23153-00-00 |
— | ||
|
46
|
46
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
47
|
47
91311-08045-00 Bolt |
91311-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
47
|
47
91317-08045-00 Bolt |
91317-08045-00 |
from US $1.56 |
||
|
48
|
48
90201-08085-00 Washer, Plate |
90201-08085-00 |
from US $1.70 |
||
|
49
|
49
3GM-23340-00-00
Under Bracketcomp
|
3GM-23340-00-00 |
— | ||
|
50
|
50
5X3-23181-L0-00 Bolt, Flange |
5X3-23181-L0-00 |
from US $2.69 |
||
| replacement | |||||
|
50
|
50
95814-08035-00 Bolt, Flange(4Fm) |
95814-08035-00 |
from US $2.69 |
||
