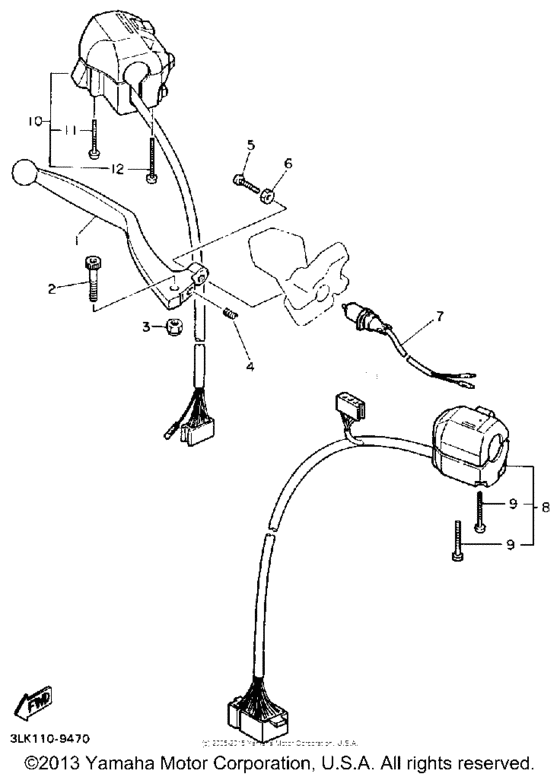

Handle switch & lever Diagram Yamaha FZR1000
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-83922-00-00
Lever R
|
3GM-83922-00-00 |
— | ||
|
2
|
2
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
3
|
3
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
3
|
3
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
4
|
4
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
5
|
5
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
6
|
6
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
7
|
7
1A0-83980-30-00
Front Stop Switch Assy
|
1A0-83980-30-00 |
— | ||
| replacement | |||||
|
7
|
7
26H-83980-00-00 Front Stop Switch Assy |
26H-83980-00-00 |
from US $64.66 |
||
|
8
|
8
3LK-83973-00-00
Switch, Handle 3
|
3LK-83973-00-00 |
— | ||
|
9
|
9
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
10
|
10
1VE-83975-00-00 Switch, Handle 2 |
1VE-83975-00-00 |
from US $120.48 |
||
|
11
|
11
98506-05040-00 Screw, Pan Head |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
12
|
12
98506-05045-00 Screw, Pan Head |
98506-05045-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
