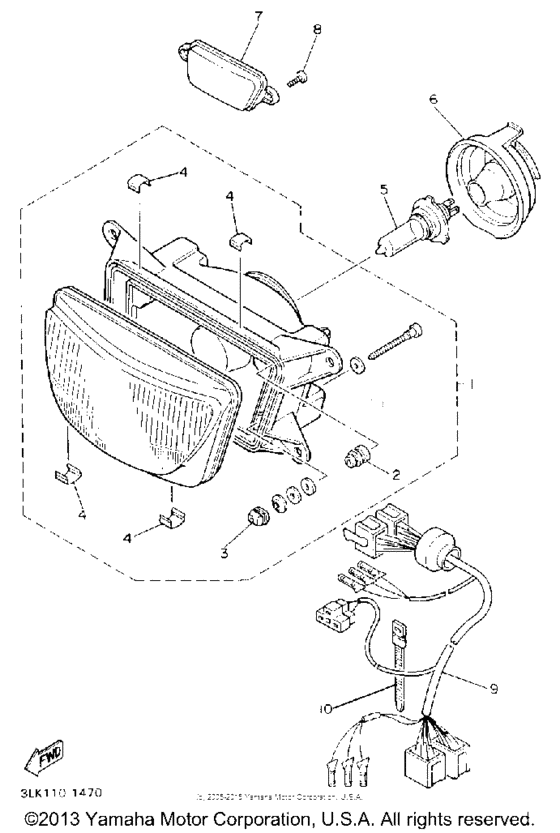

Headlight Diagram Yamaha FZR1000
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HH-84320-00-00
Lens Assembly
|
3HH-84320-00-00 |
— | ||
|
2
|
2
51L-8431U-00-00
Holder
|
51L-8431U-00-00 |
— | ||
| replacement | |||||
|
2
|
2
3AJ-8431U-00-00 Holder |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
3
|
3
51L-84334-00-00 Nut, Adjusting |
51L-84334-00-00 |
from US $10.55 |
||
|
4
|
4
3MA-8413H-00-00
Plate, Spring
|
3MA-8413H-00-00 |
— | ||
|
5
|
5
5V2-84314-00-XX
Bulb (12V-60/55W)
12V 60/55W HALOGEN HALOGEN |
5V2-84314-00-XX |
— | ||
| replacements | |||||
|
5
|
5
2F9-84314-00-00 Bulb (12V 60/55W Halogen)12V 60/55W HALOGEN HALOGEN |
2F9-84314-00-00 |
from US $29.16 |
||
|
5
|
5
5VK-H4314-00-00 Bulb, Headlight12V 60/55W HALOGEN HALOGEN |
5VK-H4314-00-00 |
US $45.92 |
||
|
5
|
5
8V0-84314-10-00 Bulb, Headlight12V 60/55W HALOGEN HALOGEN |
8V0-84314-10-00 |
from US $45.92 |
||
|
6
|
6
36Y-84397-00-00 Cover, Socket |
36Y-84397-00-00 |
from US $21.82 |
||
|
7
|
7
3GM-84378-00-P1
Cap
|
3GM-84378-00-P1 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
9
|
9
3LK-84359-10-00
Cord, Headlight
|
3LK-84359-10-00 |
— | ||
|
10
|
10
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
