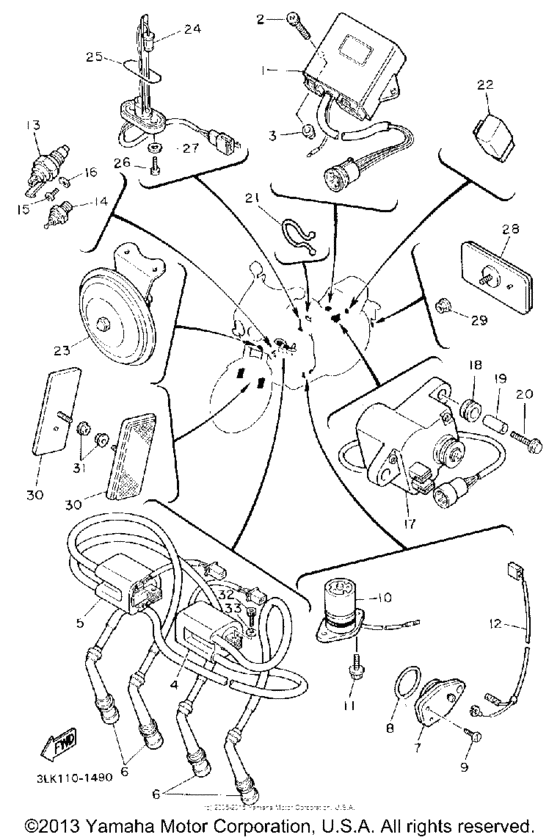

Electrical (1) Diagram Yamaha FZR1000
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LK-82305-10-00
Ignitor Unit Assembly
|
3LK-82305-10-00 |
— | ||
|
2
|
2
90110-06158-00 Bolt, Hexagon Socket Head(2Gh) |
90110-06158-00 |
US $1.77 |
||
|
3
|
3
31A-14477-00-00
Plate
|
31A-14477-00-00 |
— | ||
| replacement | |||||
|
3
|
3
31A-14477-10-00 Plate |
31A-14477-10-00 |
US $2.98 |
||
|
4
|
4
3GM-82310-00-00
Ignition Coil Asy
|
3GM-82310-00-00 |
— | ||
| replacement | |||||
|
4
|
4
1WG-82310-09-00 Ignition Coil Assy |
1WG-82310-09-00 |
from US $200.13 |
||
|
5
|
5
3GM-82320-00-00
Ignition Coil Asy
|
3GM-82320-00-00 |
— | ||
| replacement | |||||
|
5
|
5
1WG-82310-09-00 Ignition Coil Assy |
1WG-82310-09-00 |
from US $200.13 |
||
|
6
|
6
2KT-82370-00-00 Plug Cap Assembly |
2KT-82370-00-00 |
from US $42.14 |
||
|
7
|
7
1AE-82540-00-00 Neutral Switch Assy |
1AE-82540-00-00 |
from US $23.16 |
||
|
8
|
8
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.81 |
||
|
9
|
9
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.77 |
||
| replacement | |||||
|
9
|
9
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
10
|
10
3GM-85720-00-00 Oil Level Gauge Assembly |
3GM-85720-00-00 |
US $260.91 |
||
|
11
|
11
950-26060-16-00
Bolt, Flange
|
950-26060-16-00 |
— | ||
| replacement | |||||
|
11
|
11
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
12
|
12
1AE-82509-00-00
Wire, Sub Lead
|
1AE-82509-00-00 |
— | ||
|
13
|
13
2EL-82560-00-00 Thermo Switch Assy |
2EL-82560-00-00 |
from US $59.22 |
||
| replacement | |||||
|
13
|
13
3LN-82560-01-00 Thermo Switch Assy |
3LN-82560-01-00 |
from US $61.07 |
||
|
14
|
14
11H-83591-00-00 Thermo Unit |
11H-83591-00-00 |
from US $90.36 |
||
|
15
|
15
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
3GM-85820-00-00
Servo Motor Asy
|
3GM-85820-00-00 |
— | ||
| replacement | |||||
|
17
|
17
3GM-85820-01-00
Servo Motor Assy
|
3GM-85820-01-00 |
— | ||
|
18
|
18
90480-14412-00 Grommet |
90480-14412-00 |
from US $1.90 |
||
|
19
|
19
90387-065V1-00 Collar |
90387-065V1-00 |
from US $3.69 |
||
| replacement | |||||
|
19
|
19
90387-0609L-00 Collar |
90387-0609L-00 |
from US $4.68 |
||
|
20
|
20
95801-06035-00 Bolt, Flange |
95801-06035-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95817-06035-00 Bolt, Flange |
95817-06035-00 |
from US $1.02 |
||
|
21
|
21
90464-30040-00 Clamp |
90464-30040-00 |
from US $1.84 |
||
|
22
|
22
3YA-83350-00-00 Flasher Relay Assembly |
3YA-83350-00-00 |
from US $75.16 |
||
|
23
|
23
3GM-83371-00-00
Horn
|
3GM-83371-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
3GM-85752-01-00
Sender Unit Assy, Fuel Meter
|
3GM-85752-01-00 |
— | ||
| replacements | |||||
|
24
|
24
3GM-85752-02-00
Sender Unit Assy, Fuel Meter
|
3GM-85752-02-00 |
— | ||
|
24
|
24
3GM-85752-03-00 Sender Unit Assy, Fuel Meter |
3GM-85752-03-00 |
from US $105.64 |
||
|
25
|
25
42X-85753-00-00 Gasket, Sender Unit |
42X-85753-00-00 |
from US $3.38 |
||
|
26
|
26
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
27
|
27
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
28
|
28
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
28
|
28
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
29
|
29
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
30
|
30
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
31
|
31
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
31
|
31
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
32
|
32
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
32
|
32
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
33
|
33
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
