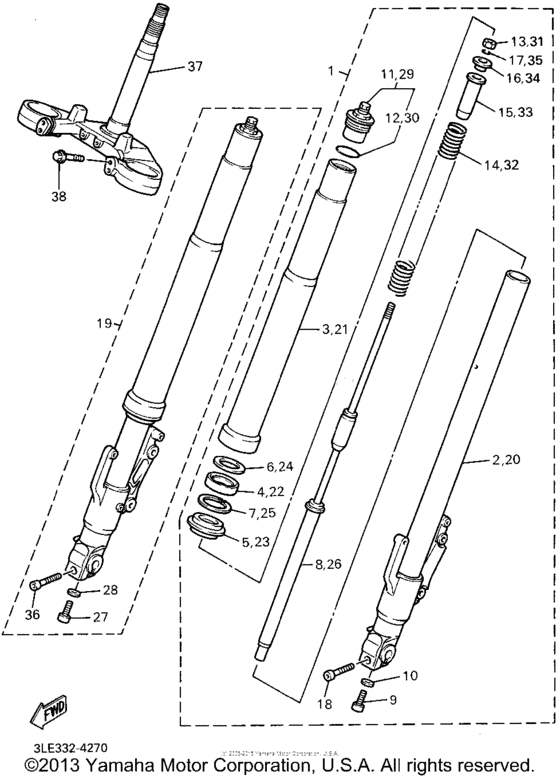

Front fork Diagram Yamaha FZR1000
- Year
- 1995
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-23102-A0-00 Front Fork Assembly (Lh) |
3GM-23102-A0-00 |
US $1,264.84 |
||
|
2
|
2
3GM-23110-A0-00
Inner Tube Comp.1
|
3GM-23110-A0-00 |
— | ||
|
3
|
3
3GM-23106-A0-00
Outer Tube Comp. (Lh)
|
3GM-23106-A0-00 |
— | ||
|
4
|
4
3GM-23145-A0-00 Oil Seal |
3GM-23145-A0-00 |
from US $19 |
||
| replacement | |||||
|
4
|
4
5VU-23145-00-00 Oil Seal |
5VU-23145-00-00 |
from US $15.78 |
||
|
5
|
5
3VD-23144-00-00 Seal, Dust |
3VD-23144-00-00 |
from US $12 |
||
|
6
|
6
3VD-23115-00-00 Guide, Cover Upper |
3VD-23115-00-00 |
from US $4.14 |
||
|
7
|
7
93450-52134-00
Circlip
|
93450-52134-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
3GM-23170-A0-00
Cylinder Comp., Front Fork
|
3GM-23170-A0-00 |
— | ||
|
9
|
9
91311-10025-00 Bolt, Hexagon Socket Head |
91311-10025-00 |
from US $3.74 |
||
| replacement | |||||
|
9
|
9
91314-10025-00 Bolt, Hexagon Socket Head |
91314-10025-00 |
from US $3.74 |
||
|
10
|
10
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.13 |
||
|
11
|
11
3GM-23111-A0-00
Bolt, Cap
|
3GM-23111-A0-00 |
— | ||
|
12
|
12
93210-16N52-00
O-Ring
|
93210-16N52-00 |
— | ||
|
13
|
13
95307-10600-00 Nut |
95307-10600-00 |
from US $1.94 |
||
| replacement | |||||
|
13
|
13
95337-10600-00 Nut |
95337-10600-00 |
from US $1.94 |
||
|
14
|
14
3GM-23141-A0-00
Spring, Front Fork
|
3GM-23141-A0-00 |
— | ||
|
15
|
15
3GM-23117-A0-00 Guide, Spring |
3GM-23117-A0-00 |
US $29 |
||
|
16
|
16
3GM-2331K-A0-00 Adjuster |
3GM-2331K-A0-00 |
US $28.15 |
||
|
17
|
17
3GM-23153-A0-00
Ring, Snap
|
3GM-23153-A0-00 |
— | ||
|
18
|
18
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
18
|
18
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $2.99 |
||
|
19
|
19
3GM-23103-A0-00 Front Fork Assembly (Rh) |
3GM-23103-A0-00 |
US $1,264.84 |
||
|
20
|
20
3GM-23120-A0-00 Inner Tube Comp.2 |
3GM-23120-A0-00 |
US $1,028.88 |
||
|
21
|
21
3GM-23106-A0-00
Outer Tube Comp. (Lh)
|
3GM-23106-A0-00 |
— | ||
|
22
|
22
3GM-23145-A0-00 Oil Seal |
3GM-23145-A0-00 |
from US $19 |
||
| replacement | |||||
|
22
|
22
5VU-23145-00-00 Oil Seal |
5VU-23145-00-00 |
from US $15.78 |
||
|
23
|
23
3VD-23144-00-00 Seal, Dust |
3VD-23144-00-00 |
from US $12 |
||
|
24
|
24
3VD-23115-00-00 Guide, Cover Upper |
3VD-23115-00-00 |
from US $4.14 |
||
|
25
|
25
93450-52134-00
Circlip
|
93450-52134-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
3GM-23170-A0-00
Cylinder Comp., Front Fork
|
3GM-23170-A0-00 |
— | ||
|
27
|
27
91311-10025-00 Bolt, Hexagon Socket Head |
91311-10025-00 |
from US $3.74 |
||
| replacement | |||||
|
27
|
27
91314-10025-00 Bolt, Hexagon Socket Head |
91314-10025-00 |
from US $3.74 |
||
|
28
|
28
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.13 |
||
|
29
|
29
3GM-23111-A0-00
Bolt, Cap
|
3GM-23111-A0-00 |
— | ||
|
30
|
30
93210-16N52-00
O-Ring
|
93210-16N52-00 |
— | ||
|
31
|
31
95307-10600-00 Nut |
95307-10600-00 |
from US $1.94 |
||
| replacement | |||||
|
31
|
31
95337-10600-00 Nut |
95337-10600-00 |
from US $1.94 |
||
|
32
|
32
3GM-23141-A0-00
Spring, Front Fork
|
3GM-23141-A0-00 |
— | ||
|
33
|
33
3GM-23117-A0-00 Guide, Spring |
3GM-23117-A0-00 |
US $29 |
||
|
34
|
34
3GM-2331K-A0-00 Adjuster |
3GM-2331K-A0-00 |
US $28.15 |
||
|
35
|
35
3GM-23153-A0-00
Ring, Snap
|
3GM-23153-A0-00 |
— | ||
|
36
|
36
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
36
|
36
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $2.99 |
||
|
37
|
37
3GM-23340-A0-00
Under Bracket Comp
|
3GM-23340-A0-00 |
— | ||
|
38
|
38
95827-08035-00 Bolt, Flange |
95827-08035-00 |
from US $0.90 |
||
| replacement | |||||
|
38
|
38
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $0.90 |
||
