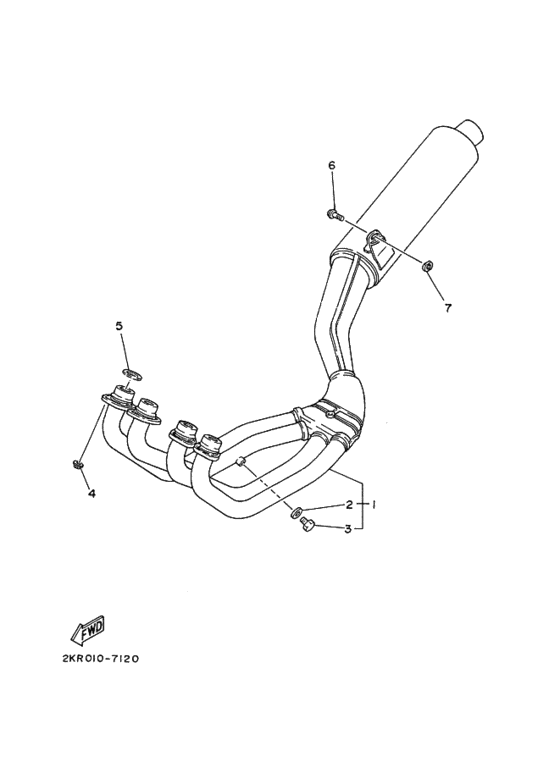

Exhaust Diagram Yamaha FZR250 FZR250 Genesis
- Year
- 1987
- Colour
- Shiny Black (SBL; 00NA)
- Model code
- 2KR0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- FZR250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2KR-14710-00-00
Muffler Assy 1
マフラーアセンブリ １; |
2KR-14710-00-00 |
— | ||
|
2
|
2
929-90066-00-00 Washer, Plain (646)．ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
3
|
3
90101-06576-00 Bolt．ボルト，ヘキサゴン; |
90101-06576-00 |
from US $1.70 |
||
|
4
|
4
90179-06500-00 Nut |
90179-06500-00 |
from US $2.13 |
||
|
5
|
5
1HX-14613-00-00 Gasket,exst Pipeガスケツト，エキゾーストパイプ; |
1HX-14613-00-00 |
from US $10.77 |
||
| replacement | |||||
|
5
|
5
3YX-14613-00-00 Gasket, Exhaust Pipeガスケツト，エキゾーストパイプ; |
3YX-14613-00-00 |
from US $10.77 |
||
|
6
|
6
90109-084E1-00 Bolt |
90109-084E1-00 |
US $2.55 |
||
| replacement | |||||
|
6
|
6
90109-087F1-00 Bolt |
90109-087F1-00 |
from US $2.55 |
||
|
7
|
7
90179-08168-00 Nut, Spec''l Shape (30) |
90179-08168-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
90179-08639-00 Nut, Spec''l Shape (30) |
90179-08639-00 |
from US $1.70 |
||
