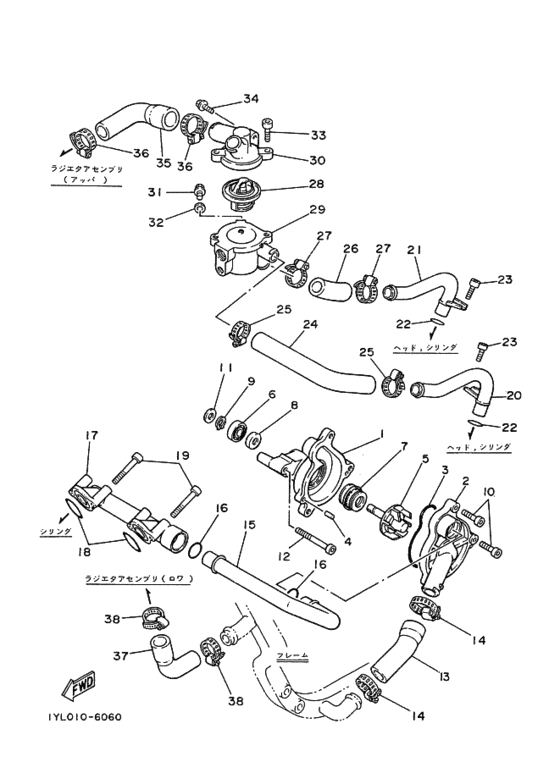

Water pump Diagram Yamaha FZR250 FZR250 Genesis
- Year
- 1987
- Colour
- Shiny Black (SBL; 00NA)
- Model code
- 2KR0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- FZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2KR-12421-00-00 Housing, Water Pumpハウジング，ウオータポンプ; |
2KR-12421-00-00 |
US $133.68 |
||
| replacement | |||||
|
1
|
1
2KR-W1247-01-00 Housing, Water Pumpハウジング，ウオータポンプ; |
2KR-W1247-01-00 |
US $133.68 |
||
|
2
|
2
2KR-12422-00-00
Cover, Housing
カバー，ハウジング; |
2KR-12422-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2KR-12422-01-00
Cover, Housing
カバー，ハウジング; |
2KR-12422-01-00 |
— | ||
|
3
|
3
1HX-12439-00-00 O-Ring |
1HX-12439-00-00 |
US $16.72 |
||
|
4
|
4
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.36 |
||
|
5
|
5
1HX-12450-00-00
Impeller Shaft Assy
インペラーシヤフトアヒンブリ; |
1HX-12450-00-00 |
— | ||
|
6
|
6
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $12.12 |
||
|
7
|
7
11H-12438-00-00
Seal, Mechanical
シール，メカニカル; |
11H-12438-00-00 |
— | ||
| replacement | |||||
|
7
|
7
11H-12438-10-00 Seal, Mechanicalシール，メカニカル; |
11H-12438-10-00 |
from US $22.22 |
||
|
8
|
8
931-01100-90-00 Oil Seal (J10)オイルシール; |
931-01100-90-00 |
from US $3.04 |
||
|
9
|
9
99009-10400-00 Circlipサークリツプ; |
99009-10400-00 |
from US $1.36 |
||
|
10
|
10
913-16060-25-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-25-00 |
— | ||
| replacement | |||||
|
10
|
10
913-17060-25-00 Boltボルト，ヘキサゴンソケツトヘツド; |
913-17060-25-00 |
from US $1.07 |
||
|
11
|
11
90201-08759-00 Washer, Plateワツシヤ，プレート; |
90201-08759-00 |
from US $1.70 |
||
|
12
|
12
913-16060-55-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-55-00 |
— | ||
| replacement | |||||
|
12
|
12
91317-06055-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91317-06055-00 |
from US $1.42 |
||
|
13
|
13
1HX-12589-00-00
Hose 6
ホース ６; |
1HX-12589-00-00 |
— | ||
|
14
|
14
90460-32284-00 Clamp, Hoseクランプ，ホース; |
90460-32284-00 |
from US $4.39 |
||
| replacement | |||||
|
14
|
14
90450-32015-00 Hose Clamp Assyクランプ，ホース; |
90450-32015-00 |
from US $4.39 |
||
|
15
|
15
1HX-12482-00-00
Pipe 2
|
1HX-12482-00-00 |
— | ||
|
16
|
16
932-10184-17-00 O-Ring |
932-10184-17-00 |
from US $1.70 |
||
|
17
|
17
2KR-12446-00-00
Joint
|
2KR-12446-00-00 |
— | ||
|
18
|
18
932-10271-94-00
O-Ring
|
932-10271-94-00 |
— | ||
| replacement | |||||
|
18
|
18
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $3.72 |
||
|
19
|
19
913-11060-40-00
Bolt, Hexagon Socket Head
|
913-11060-40-00 |
— | ||
| replacement | |||||
|
19
|
19
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.42 |
||
|
20
|
20
1HX-12483-00-00
Pipe 3
|
1HX-12483-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
1HX-12484-00-00
Pipe 4
|
1HX-12484-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
22
|
22
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
23
|
23
913-16060-16-00
Bolt
ボルト，ヘキサゴンソラツトヘツド; |
913-16060-16-00 |
— | ||
| replacement | |||||
|
23
|
23
91317-06016-00 Boltボルト，ヘキサゴンソラツトヘツド; |
91317-06016-00 |
from US $1.04 |
||
|
24
|
24
1HX-12577-00-00
Hose 2
ホース ２; |
1HX-12577-00-00 |
— | ||
|
25
|
25
90460-25288-00 Clamp, Hoseクランプ，ホース; |
90460-25288-00 |
US $7.65 |
||
|
26
|
26
1HX-12578-00-00
Hose 3
ホース ３; |
1HX-12578-00-00 |
— | ||
|
27
|
27
90460-25288-00 Clamp, Hoseクランプ，ホース; |
90460-25288-00 |
US $7.65 |
||
|
28
|
28
46X-12410-00-00 Thermostat Assemblyサーモスタツトアセンブリ; |
46X-12410-00-00 |
from US $67.49 |
||
| replacement | |||||
|
28
|
28
46X-12410-01-00 サーモスタツトアセンブリ; |
46X-12410-01-00 |
US $40.88 |
||
|
29
|
29
1HX-12417-00-00
Housing, Thermostat
ハウジング，サーモスタツト; |
1HX-12417-00-00 |
— | ||
| replacement | |||||
|
29
|
29
1HX-12417-01-00
Housing, Thermostat
ハウジング，サーモスタツト; |
1HX-12417-01-00 |
— | ||
|
30
|
30
1HX-12413-00-00
Cover, Thermostat
カバー，サーモスタツト; |
1HX-12413-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
カバー，サーモスタツト; |
999-99999-99-00 |
— | ||
|
31
|
31
90155-06045-00
Screw, Flat Fillister
スクリユ，ヘキサゴン; |
90155-06045-00 |
— | ||
|
32
|
32
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
33
|
33
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
33
|
33
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
34
|
34
95806-06016-00 Bolt Hexagon |
95806-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
34
|
34
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
35
|
35
1HX-12579-00-00
Hose 4
ホース ４; |
1HX-12579-00-00 |
— | ||
|
36
|
36
90460-32284-00 Clamp, Hoseクランプ，ホース; |
90460-32284-00 |
from US $4.39 |
||
| replacement | |||||
|
36
|
36
90450-32015-00 Hose Clamp Assyクランプ，ホース; |
90450-32015-00 |
from US $4.39 |
||
|
37
|
37
1HX-12576-00-00
Hose 1
ホース １; |
1HX-12576-00-00 |
— | ||
|
38
|
38
90460-25288-00 Clamp, Hoseクランプ，ホース; |
90460-25288-00 |
US $7.65 |
||
