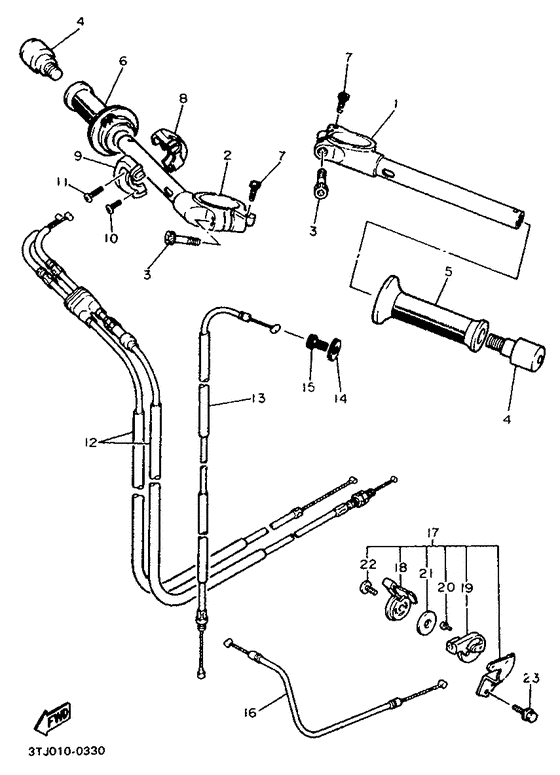

Steering handle & cable Diagram Yamaha FZR400
- Year
- 1992
- Colour
- Silky White (SW; 00GE)
- Model code
- 4DX2
- Sales region
- France (999)
- Engine Capacity
- 400
- Model
- FZR400RR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3TJ-26121-00-00
Handlebar (Left)
|
3TJ-26121-00-00 |
— | ||
|
02
|
02
3TJ-26122-00-00
Handlebar (Right)
|
3TJ-26122-00-00 |
— | ||
|
03
|
03
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $0.90 |
||
| replacement | |||||
|
03
|
03
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $0.90 |
||
|
04
|
04
3HX-26246-00-00 End, Grip |
3HX-26246-00-00 |
from US $23.64 |
||
|
05
|
05
47X-26241-00-00 Grip |
47X-26241-00-00 |
from US $13.61 |
||
|
06
|
06
3FV-26240-00-00
Grip Assy
|
3FV-26240-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $0.90 |
||
| replacement | |||||
|
07
|
07
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $0.90 |
||
|
08
|
08
34K-26281-00-00 Cap, Grip Upper |
34K-26281-00-00 |
from US $21.09 |
||
|
09
|
09
1VJ-26282-00-00 Cap, Grip Under |
1VJ-26282-00-00 |
from US $20.94 |
||
|
10
|
10
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.80 |
||
| replacement | |||||
|
10
|
10
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.80 |
||
|
11
|
11
98506-05025-00 Screw, Pan Head |
98506-05025-00 |
from US $1.28 |
||
| replacements | |||||
|
11
|
11
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.28 |
||
|
11
|
11
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.20 |
||
|
12
|
12
3TJ-26302-00-00
Throttle Cable Assy
|
3TJ-26302-00-00 |
— | ||
|
13
|
13
3TJ-26335-00-00
Cable, clutch
|
3TJ-26335-00-00 |
— | ||
|
14
|
14
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
14
|
14
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
14
|
14
901-79080-30-00 Nut |
901-79080-30-00 |
from US $5.98 |
||
|
15
|
15
90123-08083-00 Bolt |
90123-08083-00 |
from US $3.14 |
||
| replacements | |||||
|
15
|
15
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
15
|
15
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.14 |
||
|
16
|
16
3EN-26331-00-00
Cable, Starter 1
|
3EN-26331-00-00 |
— | ||
|
17
|
17
3TJ-83940-01-00
Starter Assy
|
3TJ-83940-01-00 |
— | ||
| replacement | |||||
|
17
|
17
3TJ-83940-02-00
Starter Assy
|
3TJ-83940-02-00 |
— | ||
|
18
|
18
1WG-83941-00-00 Lever, Starter |
1WG-83941-00-00 |
from US $22.79 |
||
| replacement | |||||
|
18
|
18
1WG-83941-01-00 Lever, Starter |
1WG-83941-01-00 |
from US $19.83 |
||
|
19
|
19
1WG-83942-00-00 Cover, Starter |
1WG-83942-00-00 |
from US $26.62 |
||
|
20
|
20
98906-03006-00 Screw, Bind |
98906-03006-00 |
from US $1.20 |
||
| replacement | |||||
|
20
|
20
98907-03006-00 Screw, Bind |
98907-03006-00 |
from US $1.20 |
||
|
21
|
21
90209-10131-00 Washer |
90209-10131-00 |
from US $1.80 |
||
|
22
|
22
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.05 |
||
| replacement | |||||
|
22
|
22
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.05 |
||
|
23
|
23
91006-06008-00 Bolt, Flange |
91006-06008-00 |
from US $0.95 |
||
| replacement | |||||
|
23
|
23
90105-06069-00 Bolt, Washer Based |
90105-06069-00 |
from US $1.28 |
||
