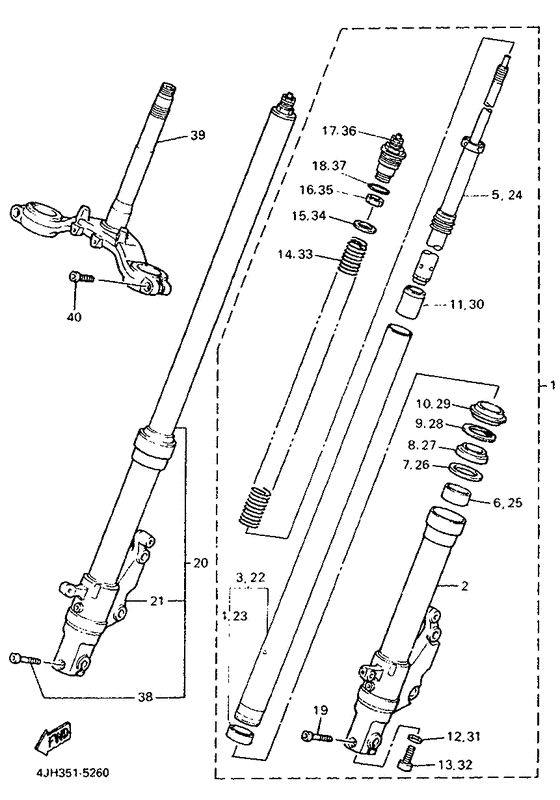

Front fork Diagram Yamaha FZR600 FZR600 Genesis
- Year
- 1995
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 4MM2
- Sales region
- Switzerland (999)
- Engine Capacity
- 600
- Model
- FZR600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4JH-23102-10-00
Front Fork Assy (L.h
|
4JH-23102-10-00 |
— | ||
| replacements | |||||
|
01
|
01
4JH-23102-12-00
Front Fork Assy (L.h)
|
4JH-23102-12-00 |
— | ||
|
01
|
01
4JH-23102-11-00
New Genuine Part
|
4JH-23102-11-00 |
— | ||
|
02
|
02
4JH-23126-10-00
Tube, Outer (Left)
|
4JH-23126-10-00 |
— | ||
|
03
|
03
4JH-23110-10-00 Inner Tube 1 |
4JH-23110-10-00 |
US $315.83 |
||
| replacement | |||||
|
03
|
03
4JH-23110-11-00
Inner Tube Comp.1
|
4JH-23110-11-00 |
— | ||
|
04
|
04
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
04
|
04
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
05
|
05
4JH-23170-10-00
Cylinder Comp., Front Fork
|
4JH-23170-10-00 |
— | ||
|
06
|
06
3GM-23125-50-00 Metal, Slide 1 |
3GM-23125-50-00 |
from US $27.77 |
||
|
07
|
07
36Y-23146-01-00
Washer, Oil Seal
|
36Y-23146-01-00 |
— | ||
|
08
|
08
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
09
|
09
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
10
|
10
3XV-23144-50-00 Seal, Dust |
3XV-23144-50-00 |
from US $28.28 |
||
|
11
|
11
3LC-23173-00-00
Spindle, Taper
|
3LC-23173-00-00 |
— | ||
|
12
|
12
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
13
|
13
3LC-23181-00-00 Bolt, Hexagon Socket Head |
3LC-23181-00-00 |
from US $11.76 |
||
|
14
|
14
4JH-23141-10-00
Spring, Front Fork
|
4JH-23141-10-00 |
— | ||
|
15
|
15
3LC-23149-00-00 Washer, Spring Upper |
3LC-23149-00-00 |
from US $6.23 |
||
|
16
|
16
3LC-23357-00-00 Nut |
3LC-23357-00-00 |
from US $4.39 |
||
|
17
|
17
4JH-23111-10-00 Bolt, Cap |
4JH-23111-10-00 |
from US $163.50 |
||
|
18
|
18
43F-23188-10-00 O-Ring |
43F-23188-10-00 |
from US $3.89 |
||
|
19
|
19
91314-10045-00 Bolt, Hexagon Socket Head |
91314-10045-00 |
from US $3.24 |
||
|
20
|
20
4JH-23103-10-00
Front Fork Asy R
|
4JH-23103-10-00 |
— | ||
| replacement | |||||
|
20
|
20
4JH-23103-12-00
Front Fork Assy (R.h)
|
4JH-23103-12-00 |
— | ||
|
21
|
21
4JH-23136-10-00
Tube, Outer (Right)
|
4JH-23136-10-00 |
— | ||
|
22
|
22
4JK-23110-10-00
Inner Tube Comp.1
|
4JK-23110-10-00 |
— | ||
|
23
|
23
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
23
|
23
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
24
|
24
4JH-23170-10-00
Cylinder Comp., Front Fork
|
4JH-23170-10-00 |
— | ||
|
25
|
25
3GM-23125-50-00 Metal, Slide 1 |
3GM-23125-50-00 |
from US $27.77 |
||
|
26
|
26
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
27
|
27
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
28
|
28
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
29
|
29
3XV-23144-50-00 Seal, Dust |
3XV-23144-50-00 |
from US $28.28 |
||
|
30
|
30
3LC-23173-00-00
Spindle, Taper
|
3LC-23173-00-00 |
— | ||
|
31
|
31
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
32
|
32
3LC-23181-00-00 Bolt, Hexagon Socket Head |
3LC-23181-00-00 |
from US $11.76 |
||
|
33
|
33
4JH-23141-10-00
Spring, Front Fork
|
4JH-23141-10-00 |
— | ||
|
34
|
34
3LC-23357-00-00 Nut |
3LC-23357-00-00 |
from US $4.39 |
||
|
35
|
35
4JH-23111-10-00 Bolt, Cap |
4JH-23111-10-00 |
from US $163.50 |
||
|
36
|
36
43F-23188-00-00
O-Ring
|
43F-23188-00-00 |
— | ||
|
37
|
37
91314-10045-00 Bolt, Hexagon Socket Head |
91314-10045-00 |
from US $3.24 |
||
|
38
|
38
4JH-23340-00-00 Under Bracket Comp |
4JH-23340-00-00 |
US $415.67 |
||
|
39
|
39
91314-12030-00 Bolt |
91314-12030-00 |
US $8.93 |
||
|
40
|
40
91314-12030-00 Bolt |
91314-12030-00 |
US $8.93 |
||
