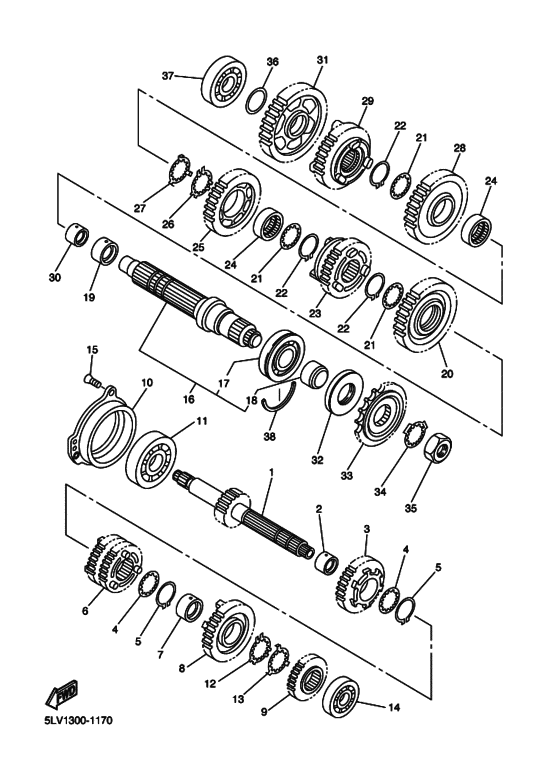

Transmission Diagram Yamaha FZS1000 FZ1
- Year
- 2005
- Colour
- Silver 3 (S3; 0791)
- Model code
- 1C2F
- Sales region
- Europe (010)
- Engine Capacity
- 1000
- Color Variant
- B
- Model
- FZS1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5LV-17411-00-00 Main Axle AssyAxle, main (14t) 14T |
5LV-17411-00-00 |
US $229.14 |
||
| replacement | |||||
|
1
|
1
5LV-17401-00-00 Main Axle Assy14T |
5LV-17401-00-00 |
US $229.14 |
||
|
2
|
2
90387-2811B-00 Collar |
90387-2811B-00 |
US $17.78 |
||
|
3
|
3
5JJ-17151-00-00 Gear, 5Th Pinion (25T)Gear, 5th pinion (25t) 5TH PINION 25T |
5JJ-17151-00-00 |
from US $97.40 |
||
|
4
|
4
90209-25342-00 Washer |
90209-25342-00 |
from US $5.53 |
||
|
5
|
5
93440-28062-00 Circlip |
93440-28062-00 |
from US $2.70 |
||
|
6
|
6
5JJ-17131-00-00 Gear, 3Rd Pinion (20/21T)Gear, 3rd pinion (20/21t) 3RD PINION 20/21T |
5JJ-17131-00-00 |
from US $210 |
||
|
7
|
7
90387-2810U-00 Collar |
90387-2810U-00 |
from US $26.35 |
||
|
8
|
8
5JJ-17161-00-00 Gear, 6Th Pinion (26T)Gear, 6th pinion (26t) 6TH PINION 26T |
5JJ-17161-00-00 |
from US $143.69 |
||
|
9
|
9
5JJ-17121-01-00
Gear, 2Nd Pinion (19T)
2ND PINION 19T |
5JJ-17121-01-00 |
— | ||
|
10
|
10
5JJ-15163-00-00 Housing, Bearing 1 |
5JJ-15163-00-00 |
US $163.98 |
||
|
11
|
11
93306-37807-00 Bearing |
93306-37807-00 |
from US $53.86 |
||
|
12
|
12
90209-25349-00 Washer |
90209-25349-00 |
from US $9.21 |
||
|
13
|
13
90209-25350-00 Washer |
90209-25350-00 |
from US $4.53 |
||
|
14
|
14
93306-27208-00 Bearing |
93306-27208-00 |
from US $39.31 |
||
| replacement | |||||
|
14
|
14
93306-27209-00 Bearing |
93306-27209-00 |
from US $40.23 |
||
|
15
|
15
90149-06286-00 Screw |
90149-06286-00 |
from US $1.98 |
||
| replacement | |||||
|
15
|
15
90149-06126-00 Screw, Flathead (2H7) |
90149-06126-00 |
from US $2.50 |
||
|
16
|
16
5LV-17402-00-00 Drive Axle Assy |
5LV-17402-00-00 |
from US $180.36 |
||
|
17
|
17
93306-20705-00 BearingBearing (b6207n) |
93306-20705-00 |
US $25.53 |
||
|
18
|
18
90387-30001-00 Collar |
90387-30001-00 |
from US $31.54 |
||
|
19
|
19
90387-3311C-00 Collar |
90387-3311C-00 |
from US $17.28 |
||
|
20
|
20
5JJ-17221-00-00 Gear, 2Nd Wheel (35T)2ND WHEEL 35T |
5JJ-17221-00-00 |
from US $192.73 |
||
|
21
|
21
90209-30344-00 Washer |
90209-30344-00 |
from US $7.51 |
||
|
22
|
22
93440-32063-00 Circlip |
93440-32063-00 |
from US $3.60 |
||
|
23
|
23
5PW-17261-00-00 Gear, 6Th Wheel (29T)Gear, 6th wheel (29t) 6TH WHEEL 29T |
5PW-17261-00-00 |
from US $242.47 |
||
|
24
|
24
90387-3310V-00 Collar |
90387-3310V-00 |
from US $23.80 |
||
|
25
|
25
5JJ-17241-00-00 Gear, 4Th Wheel (28T)Gear, 4th wheel (28t) 4TH WHEEL 28T |
5JJ-17241-00-00 |
from US $132.91 |
||
|
26
|
26
90209-30345-00 Washer |
90209-30345-00 |
from US $10.48 |
||
|
27
|
27
90209-30343-00 Washer |
90209-30343-00 |
from US $5.24 |
||
|
28
|
28
5JJ-17231-00-00 Gear, 3Rd Wheel (30T)Gear, 3rd wheel (30t) 3RD WHEEL 30T |
5JJ-17231-00-00 |
from US $134.02 |
||
|
29
|
29
5JJ-17251-00-00
Gear, 5Th Wheel (30T)
5TH WHEEL 30T |
5JJ-17251-00-00 |
— | ||
|
30
|
30
90387-2511A-00 Collar |
90387-2511A-00 |
from US $15.30 |
||
|
31
|
31
5JJ-17211-00-00
Gear, 1St Wheel (35T)
35T |
5JJ-17211-00-00 |
— | ||
|
32
|
32
93102-45465-00 Oil Seal |
93102-45465-00 |
from US $19.15 |
||
|
33
|
33
4XV-17460-00-00 Sprocket, Drive (16T)16T |
4XV-17460-00-00 |
from US $38.21 |
||
|
34
|
34
902-15302-33-00
Washer, Lock
|
902-15302-33-00 |
— | ||
| replacement | |||||
|
34
|
34
902-15262-41-00 Washer, Lock |
902-15262-41-00 |
from US $10.54 |
||
|
35
|
35
90179-22063-00 Nut |
90179-22063-00 |
from US $15.82 |
||
|
36
|
36
90201-224L4-00 Washer, Plate |
90201-224L4-00 |
from US $1.66 |
||
|
37
|
37
93306-37209-00 Bearing |
93306-37209-00 |
from US $52.70 |
||
|
38
|
38
93440-72049-00 Circlip |
93440-72049-00 |
from US $7.21 |
||
