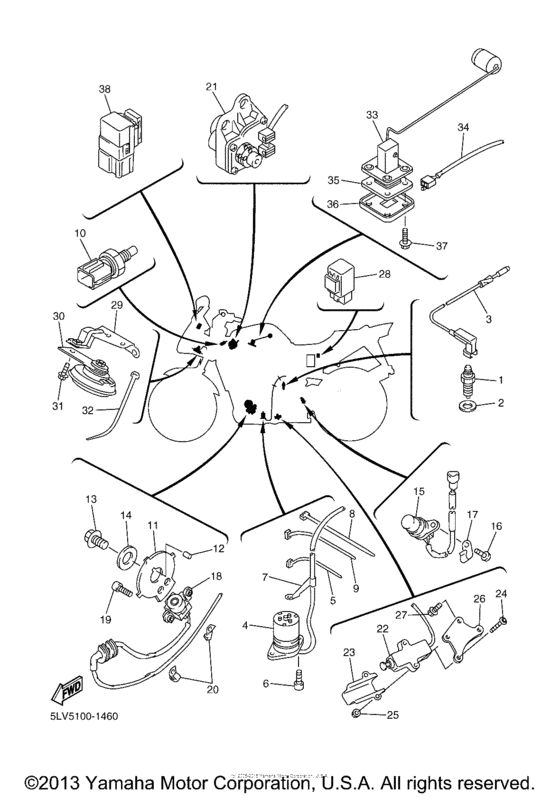

Electrical (2) Diagram Yamaha FZS1000 FZ1
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- FZS1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $20.25 |
||
|
2
|
2
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
3
|
3
5LV-82541-00-00 Wire, Lead |
5LV-82541-00-00 |
from US $16.85 |
||
|
4
|
4
5LV-85720-00-00 Oil Level Gauge Assy |
5LV-85720-00-00 |
from US $144.86 |
||
| replacement | |||||
|
4
|
4
5LV-85720-01-00 Oil Level Gauge Assy |
5LV-85720-01-00 |
from US $144.86 |
||
|
5
|
5
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
6
|
6
913-17060-14-00 Bolt |
913-17060-14-00 |
from US $1.39 |
||
|
7
|
7
90465-08013-00 Clamp |
90465-08013-00 |
from US $3.24 |
||
|
8
|
8
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
9
|
9
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
10
|
10
5JJ-83591-00-00 Thermo Unit |
5JJ-83591-00-00 |
from US $69.08 |
||
|
11
|
11
4XV-81673-00-00
Rotor
|
4XV-81673-00-00 |
— | ||
|
12
|
12
93604-29151-00 Pin, Dowel |
93604-29151-00 |
from US $1.84 |
||
|
13
|
13
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.91 |
||
|
14
|
14
902-01107-K6-00 Washer, Plate |
902-01107-K6-00 |
from US $9.42 |
||
|
15
|
15
5LV-83755-00-00
Sensor, Speed
|
5LV-83755-00-00 |
— | ||
| replacement | |||||
|
15
|
15
1C2-83755-00-00
Sensor, Speed
|
1C2-83755-00-00 |
— | ||
|
16
|
16
913-17060-14-00 Bolt |
913-17060-14-00 |
from US $1.39 |
||
|
17
|
17
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
18
|
18
5LV-81670-01-00
Pick-Up Assy
|
5LV-81670-01-00 |
— | ||
|
19
|
19
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
20
|
20
90465-08191-00 Clamp |
90465-08191-00 |
from US $4.25 |
||
| replacement | |||||
|
20
|
20
90465-08054-00 Clamp |
90465-08054-00 |
from US $4.25 |
||
|
21
|
21
5LV-85820-00-00
Servo Motor Assy
|
5LV-85820-00-00 |
— | ||
| replacement | |||||
|
21
|
21
5LV-Y8585-01-00
Servo Motor Assy
|
5LV-Y8585-01-00 |
— | ||
|
22
|
22
5EB-82566-00-00 Switch, Side Stand |
5EB-82566-00-00 |
from US $85.63 |
||
| replacement | |||||
|
22
|
22
5EB-82566-01-00 Switch, Side Stand |
5EB-82566-01-00 |
from US $85.63 |
||
|
23
|
23
5JJ-82388-00-00 Plate |
5JJ-82388-00-00 |
from US $7.37 |
||
|
24
|
24
92017-05025-00 Bolt, Button Head |
92017-05025-00 |
from US $1.66 |
||
|
25
|
25
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
26
|
26
5LV-8252H-00-00 Plate |
5LV-8252H-00-00 |
US $4.90 |
||
|
27
|
27
90105-06020-00 Bolt, Flange |
90105-06020-00 |
from US $1.07 |
||
| replacements | |||||
|
27
|
27
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
27
|
27
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
28
|
28
3GM-83350-01-00
Flasher Relay Assy
|
3GM-83350-01-00 |
— | ||
| replacements | |||||
|
28
|
28
3GM-83350-02-00 Flasher Relay Assy |
3GM-83350-02-00 |
from US $51.67 |
||
|
28
|
28
3GM-83350-03-00 Flasher Relay Assy |
3GM-83350-03-00 |
US $93.53 |
||
|
29
|
29
5LV-23377-00-00 Bracket, Horn |
5LV-23377-00-00 |
from US $9.40 |
||
|
30
|
30
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
31
|
31
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
32
|
32
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
33
|
33
5LV-85752-00-00 Sender Unit Assy, Fuel Meter |
5LV-85752-00-00 |
from US $65.76 |
||
|
34
|
34
5LV-82509-00-00 Wire, Sub Lead |
5LV-82509-00-00 |
US $10.43 |
||
|
35
|
35
4US-85753-00-00 Gasket, Sender Unit |
4US-85753-00-00 |
from US $3.40 |
||
|
36
|
36
2JG-85757-00-00 Retainer |
2JG-85757-00-00 |
from US $4.53 |
||
|
37
|
37
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
38
|
38
5JJ-81950-10-00 Relay Assy (G8Hn-1C4T-Dj-Y51) |
5JJ-81950-10-00 |
from US $21.82 |
||
| replacement | |||||
|
38
|
38
5JJ-81950-11-00 Relay Assy |
5JJ-81950-11-00 |
from US $21.82 |
||
