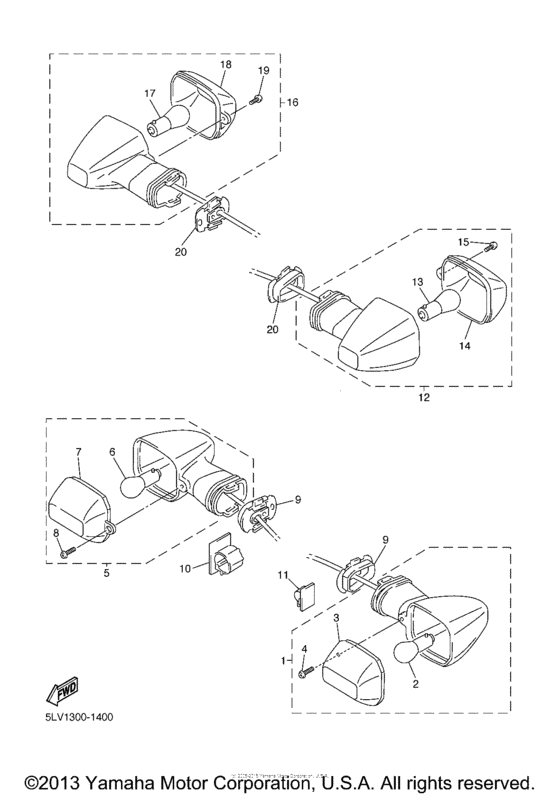

Flasher light Diagram Yamaha FZS1000 FZ1
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- FZS1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5LV-83310-00-00 Front Flasher Light Assy 1 |
5LV-83310-00-00 |
from US $90.22 |
||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
3
|
3
4JH-83332-10-00 Lens, Flasher |
4JH-83332-10-00 |
from US $22.45 |
||
|
4
|
4
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
5
|
5
5LV-83320-00-00
Front Flasher Light Assy 2
|
5LV-83320-00-00 |
— | ||
|
6
|
6
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
6
|
6
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
6
|
6
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
7
|
7
4JH-83342-10-00 Lens, Flasher 2 |
4JH-83342-10-00 |
from US $19.69 |
||
|
8
|
8
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
9
|
9
5DM-8331L-00-00 Plate, Stopper |
5DM-8331L-00-00 |
from US $5.67 |
||
|
10
|
10
90464-20003-00 Clamp |
90464-20003-00 |
from US $3.04 |
||
| replacement | |||||
|
10
|
10
904-64200-21-00 Clamp |
904-64200-21-00 |
from US $3.54 |
||
|
11
|
11
90464-62085-00 Clamp |
90464-62085-00 |
from US $1.94 |
||
|
12
|
12
5LV-83330-10-00 Rear Flasher Light Assy 1 |
5LV-83330-10-00 |
from US $71.43 |
||
|
13
|
13
256-83311-70-XX
Bulb (12V-27W)
12V-32CP |
256-83311-70-XX |
— | ||
|
14
|
14
4JH-83342-10-00 Lens, Flasher 2 |
4JH-83342-10-00 |
from US $19.69 |
||
|
15
|
15
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
16
|
16
5LV-83340-10-00 Rear Flasher Light Assy 2 |
5LV-83340-10-00 |
from US $52.06 |
||
|
17
|
17
256-83311-70-XX
Bulb (12V-27W)
12V-32CP |
256-83311-70-XX |
— | ||
|
18
|
18
4JH-83332-10-00 Lens, Flasher |
4JH-83332-10-00 |
from US $22.45 |
||
|
19
|
19
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
20
|
20
5DM-8331L-00-00 Plate, Stopper |
5DM-8331L-00-00 |
from US $5.67 |
||
