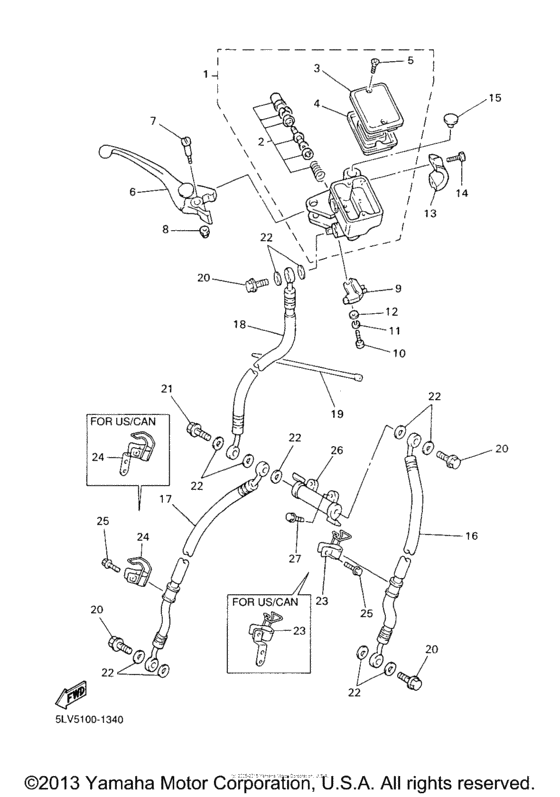

Front master cylinder Diagram Yamaha FZS1000 FZ1
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- FZS1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5DM-W2587-00-00 Master Cylinder Sub Assy |
5DM-W2587-00-00 |
from US $280.39 |
||
| replacement | |||||
|
1
|
1
5DM-W2587-01-00 Master Cylinder Sub Assy |
5DM-W2587-01-00 |
from US $280.39 |
||
|
2
|
2
5DM-W0041-50-00 Cylinder Kit, Master |
5DM-W0041-50-00 |
from US $44.57 |
||
|
3
|
3
4HM-W2585-00-00 Reservoir Cap Set |
4HM-W2585-00-00 |
from US $28.62 |
||
| replacement | |||||
|
3
|
3
4HM-W2585-01-00 Reservoir Cap Set |
4HM-W2585-01-00 |
from US $28.62 |
||
|
4
|
4
4HM-25854-00-00 Diaphragm, Reservoir |
4HM-25854-00-00 |
from US $17.48 |
||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
5EB-83922-01-00 Lever 2 |
5EB-83922-01-00 |
from US $44.57 |
||
|
7
|
7
3FV-2589F-00-00 Bolt, Lever |
3FV-2589F-00-00 |
from US $7.21 |
||
|
8
|
8
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
9
|
9
3FV-83980-00-00 Front Stop Switch Assy |
3FV-83980-00-00 |
from US $22.39 |
||
| replacement | |||||
|
9
|
9
4HM-83980-00-00 Front Stop Switch Assy |
4HM-83980-00-00 |
from US $27.19 |
||
|
10
|
10
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
13
|
13
4HM-25867-00-00 Bracket, Master Cylinder |
4HM-25867-00-00 |
from US $21.37 |
||
|
14
|
14
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
15
|
15
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
16
|
16
5LV-25872-00-00 Hose, Brake 1 |
5LV-25872-00-00 |
from US $52.16 |
||
| replacement | |||||
|
16
|
16
5LV-25872-01-00 Hose, Brake 1 |
5LV-25872-01-00 |
from US $73.92 |
||
|
17
|
17
5LV-25873-00-00 Hose, Brake 2 |
5LV-25873-00-00 |
from US $52.54 |
||
| replacement | |||||
|
17
|
17
5LV-25873-01-00 Hose, Brake 2 |
5LV-25873-01-00 |
from US $73.92 |
||
|
18
|
18
5LV-25874-00-00 Hose, Brake |
5LV-25874-00-00 |
from US $48.19 |
||
| replacement | |||||
|
18
|
18
5LV-25874-01-00 Hose, Brake |
5LV-25874-01-00 |
from US $43.60 |
||
|
19
|
19
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
20
|
20
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
21
|
21
90401-10160-00 Bolt, Union(3Gm) |
90401-10160-00 |
from US $9.49 |
||
| replacement | |||||
|
21
|
21
90401-10038-00 Bolt, Union |
90401-10038-00 |
from US $9.49 |
||
|
22
|
22
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
22
|
22
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
23
|
23
5LV-25875-10-00 Holder, Brake Hose 1 |
5LV-25875-10-00 |
from US $24.98 |
||
|
24
|
24
5LV-25876-10-00 Holder, Brake Hose 2 |
5LV-25876-10-00 |
US $19.82 |
||
|
25
|
25
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
| replacement | |||||
|
25
|
25
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
26
|
26
42H-25885-01-00
Joint
|
42H-25885-01-00 |
— | ||
|
27
|
27
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
