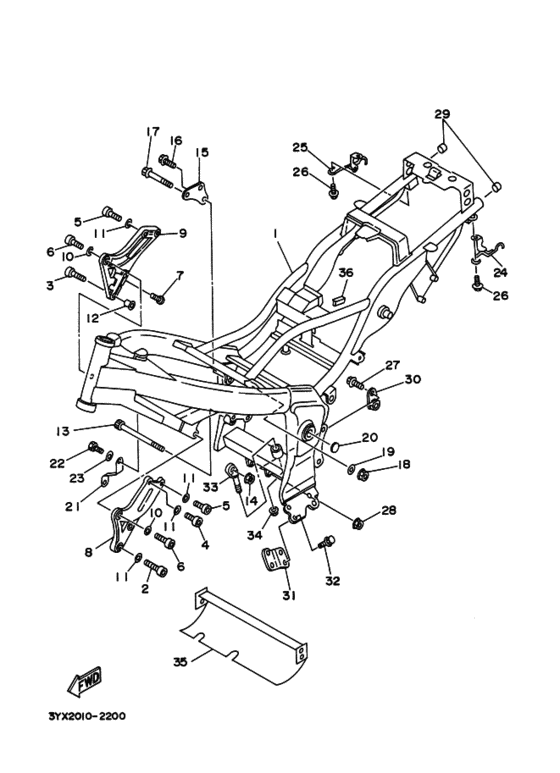

Frame Diagram Yamaha FZX250 ZEAL
- Year
- 1992
- Colour
- Frost Silver (FRS; 009G)
- Model code
- 3YX2
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- C
- Model
- FZX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3YX-21110-00-7B
Frame Comp
フレームコンプリート; ＵＲ ブルーイツシユブラツク ２ シルバー ヨウ |
3YX-21110-00-7B |
— | ||
|
1
|
1
3YX-21110-00-P0
Frame Comp
フレームコンプリート; ＵＲ グレーメタリツク １ ブルー，レツド ヨウ |
3YX-21110-00-P0 |
— | ||
|
2
|
2
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
3
|
3
91311-08035-00 Bolt, Hexagon Socket Head |
91311-08035-00 |
from US $3.26 |
||
| replacement | |||||
|
3
|
3
91314-08035-00 Bolt, Hexagon Socket Head |
91314-08035-00 |
from US $3.60 |
||
|
4
|
4
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
4
|
4
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
5
|
5
913-11080-20-00
Bolt, Hexagon Socket Head
|
913-11080-20-00 |
— | ||
| replacement | |||||
|
5
|
5
91314-08020-00 Bolt, Hexagon Socket Head |
91314-08020-00 |
from US $1.52 |
||
|
6
|
6
91311-10020-00 Bolt, Hexagon Socket Head |
91311-10020-00 |
from US $3.68 |
||
| replacement | |||||
|
6
|
6
91314-10020-00 Bolt, Hexagon Socket Head |
91314-10020-00 |
from US $3.68 |
||
|
7
|
7
92011-08020-00 Bolt, Button Headボルト，ボタンヘツド; |
92011-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
92017-08020-00 Bolt, Buttonボルト，ボタンヘツド; |
92017-08020-00 |
from US $1.18 |
||
|
8
|
8
3YX-21315-00-00
Stay, Engine 1
ステー，エンジン ２; ＵＲ ブルー，レツド ヨウ |
3YX-21315-00-00 |
— | ||
|
8
|
8
3YX-21315-10-00
Stay, Engine 1
ステー，エンジン ２; ＵＲ シルバー ヨウ |
3YX-21315-10-00 |
— | ||
|
9
|
9
3YX-21316-00-00
Stay, Engine 2
ステー，エンジン ３; ＵＲ ブルー，レツド ヨウ |
3YX-21316-00-00 |
— | ||
|
9
|
9
3YX-21316-10-00
Stay, Engine 2
ステー，エンジン ３; ＵＲ シルバー ヨウ |
3YX-21316-10-00 |
— | ||
|
10
|
10
90201-08759-00 Washer, Plateワツシヤ，プレート; |
90201-08759-00 |
from US $1.81 |
||
|
11
|
11
929-01086-00-00
Washer
ワツシヤ，プレート; |
929-01086-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.66 |
||
|
12
|
12
90387-092Y4-00
Collar
カラー; |
90387-092Y4-00 |
— | ||
|
13
|
13
90110-10109-00
Bolt, Hexagon Socket Head
ボルト，ヘキサコンソケツトヘツド; |
90110-10109-00 |
— | ||
|
14
|
14
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
14
|
14
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
14
|
14
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
15
|
15
1HX-21318-00-00 Stay, Engine 4ステー，エンジン ５; シルバー |
1HX-21318-00-00 |
US $6.61 |
||
|
16
|
16
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
16
|
16
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
16
|
16
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
17
|
17
901-05100-50-00
Bolt, Flange
ボルト，ワツシヤベースドヘツド; |
901-05100-50-00 |
— | ||
| replacements | |||||
|
17
|
17
95817-10110-00 Bolt, Flange(6Ta)ボルト，ワツシヤベースドヘツド; |
95817-10110-00 |
from US $3.54 |
||
|
17
|
17
901-05101-05-00 Bolt, Washer Based (2H7)ボルト，ワツシヤベースドヘツド; |
901-05101-05-00 |
from US $5.81 |
||
|
18
|
18
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
18
|
18
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
18
|
18
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
19
|
19
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.18 |
||
|
20
|
20
3SX-2135F-00-00 Coverカバー; |
3SX-2135F-00-00 |
from US $11.05 |
||
|
21
|
21
3YX-2142M-00-00
Bracket, Radiator 3
ブラケツト，ラヂエター ３; |
3YX-2142M-00-00 |
— | ||
|
22
|
22
97003-06012-00 Bolt,kt100S/j Recoil Starter |
97003-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
22
|
22
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
22
|
22
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
23
|
23
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.39 |
||
|
24
|
24
3YX-21271-00-00
Stay, Carrier
ステー，キヤリヤー; |
3YX-21271-00-00 |
— | ||
|
25
|
25
3YX-21272-00-00
Stay, Carrier
ステー，キヤリヤー; |
3YX-21272-00-00 |
— | ||
|
26
|
26
95806-06014-00 Bolt Hexagon |
95806-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
27
|
27
95826-10020-00 Bolt, Flange |
95826-10020-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.18 |
||
|
28
|
28
95706-10500-00 Nut, Flange (1Kg) |
95706-10500-00 |
from US $1.21 |
||
| replacements | |||||
|
28
|
28
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
28
|
28
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
|
29
|
29
3YX-2143A-00-00 Cap |
3YX-2143A-00-00 |
from US $2.13 |
||
|
30
|
30
3YX-21446-01-00
Stay, Muffler 2
ステー，マフラ ２; |
3YX-21446-01-00 |
— | ||
|
31
|
31
3LN-21453-50-00
Bracket, Switch
|
3LN-21453-50-00 |
— | ||
|
32
|
32
90105-06564-00 Bolt, Flange (Small Head)ボルト，ワツシヤベースドヘツド; |
90105-06564-00 |
from US $1.56 |
||
| replacement | |||||
|
32
|
32
95024-06016-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
95024-06016-00 |
from US $1.56 |
||
|
33
|
33
1WG-21427-00-00
Bracket, Rear Lwr 1
|
1WG-21427-00-00 |
— | ||
|
34
|
34
95701-12500-00 P66 Nut, Flange (1Uv) |
95701-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
34
|
34
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
34
|
34
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
35
|
35
3YX-21266-00-00
Sheet 1
シート １; |
3YX-21266-00-00 |
— | ||
|
36
|
36
21V-21717-00-00 Damperダンパ，サイドカバー; |
21V-21717-00-00 |
US $2.20 |
||
