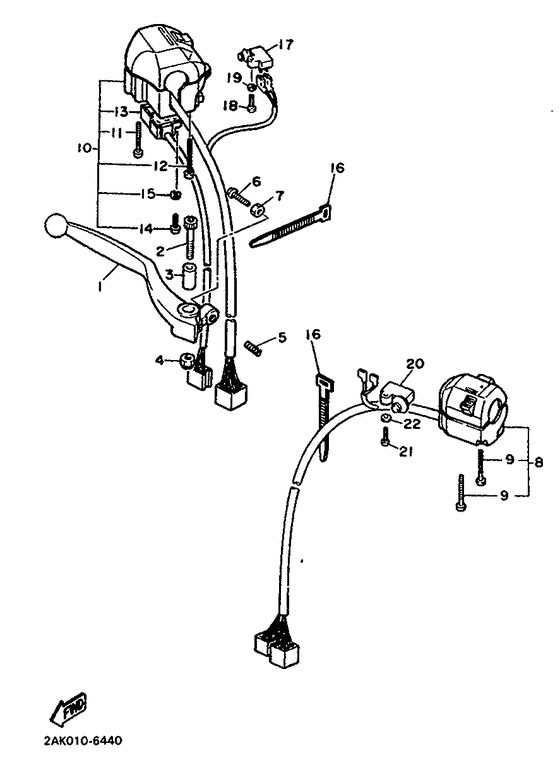

Handle switch & lever Diagram Yamaha FZX750
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2MU
- Sales region
- Austria (999)
- Engine Capacity
- 750
- Model
- FZX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
36Y-83922-00-00 Lever 2 |
36Y-83922-00-00 |
from US $24.37 |
||
|
02
|
02
90110-06074-00 Bolt, Hexagon Socket Head |
90110-06074-00 |
from US $1.84 |
||
|
03
|
03
36Y-83913-00-00 Collar, Lever 1 |
36Y-83913-00-00 |
from US $6.09 |
||
| replacement | |||||
|
03
|
03
36Y-83913-01-00 Collar, Lever 1 |
36Y-83913-01-00 |
from US $6.09 |
||
|
04
|
04
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
04
|
04
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
05
|
05
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
06
|
06
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
06
|
06
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
07
|
07
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
08
|
08
2JE-83972-00-00
Switch, Handle 4
|
2JE-83972-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
10
|
10
2AK-83972-10-00
Switch, Handle 4
|
2AK-83972-10-00 |
— | ||
|
11
|
11
98506-05040-00 Screw, Pan Head |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
12
|
12
98506-05045-00 Screw, Pan Head |
98506-05045-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
|
13
|
13
42H-83964-00-00
Switch
|
42H-83964-00-00 |
— | ||
|
14
|
14
985-01030-16-00
Screw, Pan Head
|
985-01030-16-00 |
— | ||
| replacement | |||||
|
14
|
14
98507-03016-00 Screw, Pan Head |
98507-03016-00 |
from US $1.21 |
||
|
15
|
15
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
16
|
16
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
36Y-83980-01-00 Front Stop Switch Assy |
36Y-83980-01-00 |
from US $26.19 |
||
| replacement | |||||
|
17
|
17
J45-82503-01-00 Front Stop Switch Assy |
J45-82503-01-00 |
from US $32.18 |
||
|
18
|
18
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
18
|
18
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
19
|
19
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
20
|
20
36Y-82917-00-00 Stop Switch Assy |
36Y-82917-00-00 |
from US $19.84 |
||
|
21
|
21
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
21
|
21
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
22
|
22
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
