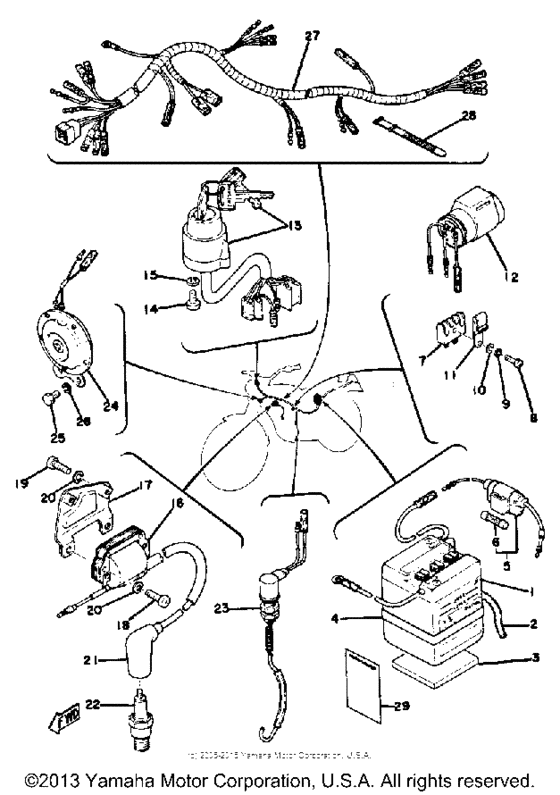

Electrical Diagram Yamaha GTMX
- Year
- 1976
- Sales region
- USA
- Model
- GTMX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
6N4-2A-2 6N4-2A-2 308-821 GS |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
1
|
1
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
6N4-2A-2 6N4-2A-2 308-821 GS |
6N4-2A200-00-00 |
— | ||
|
2
|
2
90445-08172-00 Hose (L450) |
90445-08172-00 |
US $10.91 |
||
| replacement | |||||
|
2
|
2
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
3
|
3
583-24182-00-00 Damper, Locating 2 |
583-24182-00-00 |
from US $5.95 |
||
|
4
|
4
308-82124-00-00
Band, Battery
|
308-82124-00-00 |
— | ||
|
5
|
5
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
5
|
5
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
6
|
6
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
6
|
6
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
7
|
7
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
7
|
7
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
7
|
7
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
8
|
8
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
11
|
11
90465-06038-00 Clamp |
90465-06038-00 |
from US $2.41 |
||
| replacement | |||||
|
11
|
11
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
12
|
12
368-83350-61-00
Flasher Relay Assembly
|
368-83350-61-00 |
— | ||
|
13
|
13
393-82508-22-00
Main Switch Assembly
|
393-82508-22-00 |
— | ||
|
14
|
14
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
206-82310-41-00
Ignition Coil Assembly
|
206-82310-41-00 |
— | ||
|
16
|
16
367-82310-30-00 Ignition Coil Assembly |
367-82310-30-00 |
from US $163.03 |
||
| replacement | |||||
|
16
|
16
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
17
|
17
375-82316-01-00
Bracket, Ign Coil
|
375-82316-01-00 |
— | ||
|
18
|
18
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
19
|
19
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
19
|
19
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
22
|
22
NGK-B7HS0-00-00
Ngk Spark Plug B7Hs
B7HS |
NGK-B7HS0-00-00 |
— | ||
| replacement | |||||
|
22
|
22
B7H-S0000-00-00 Ngk Spark Plug B7HsB7HS |
B7H-S0000-00-00 |
US $26.28 |
||
|
23
|
23
353-82530-03-00
Stop Switch Assembly
|
353-82530-03-00 |
— | ||
|
24
|
24
2A7-83371-10-00
Horn
|
2A7-83371-10-00 |
— | ||
|
25
|
25
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
25
|
25
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
368-82590-21-00
Wire Harness Assembly
|
368-82590-21-00 |
— | ||
|
28
|
28
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
29
|
29
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
29
|
29
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
