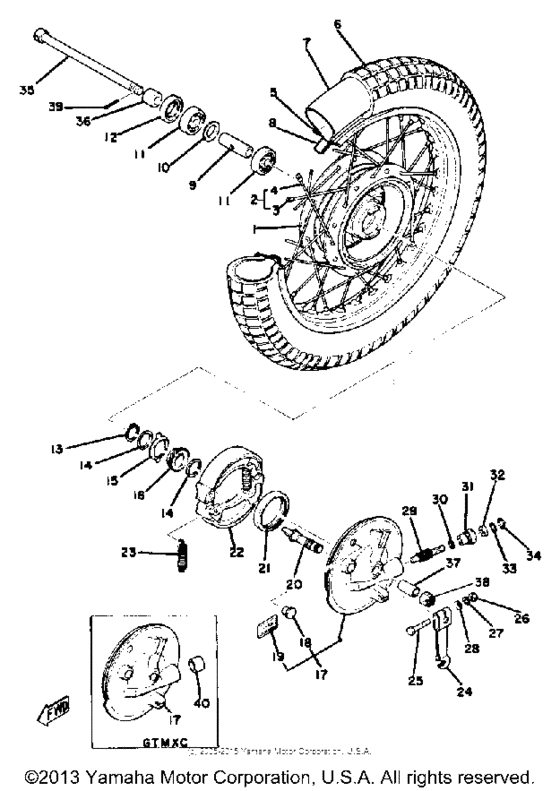

Front wheel Diagram Yamaha GTMX
- Year
- 1976
- Sales region
- USA
- Model
- GTMX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
367-25111-00-Y8
Hub, Front
|
367-25111-00-Y8 |
— | ||
|
2
|
2
288-25104-01-00
Spoke Set, Front
|
288-25104-01-00 |
— | ||
|
3
|
3
288-25196-90-00
Spoke Set, Inner 1
|
288-25196-90-00 |
— | ||
|
4
|
4
288-25197-90-00
Spoke Set, Outer 1
|
288-25197-90-00 |
— | ||
|
5
|
5
94414-15058-00
Rim 1.40X15
1.40X15 |
94414-15058-00 |
— | ||
|
6
|
6
941-25154-78-00
250-15 Irc Trials
|
941-25154-78-00 |
— | ||
|
7
|
7
94225-15103-00 Tube 250X15250X15 |
94225-15103-00 |
US $31.93 |
||
|
8
|
8
94313-15154-00 Band, Rim (130/90-15)130/90-15 |
94313-15154-00 |
from US $4.39 |
||
|
9
|
9
905-60103-03-00
Spacer, Bearing
|
905-60103-03-00 |
— | ||
|
10
|
10
195-25115-00-00 New Genuine PartIN PRICE BOOK |
195-25115-00-00 |
from US $2.43 |
||
| replacement | |||||
|
10
|
10
2E9-25116-00-00 Flange, Spacer 2IN PRICE BOOK |
2E9-25116-00-00 |
from US $3.47 |
||
|
11
|
11
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $10.10 |
||
|
12
|
12
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
13
|
13
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
15
|
15
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
16
|
16
368-25135-00-00
Gear, Drive
|
368-25135-00-00 |
— | ||
|
17
|
17
393-25016-10-35
Brake Shoe Plt Assembly
|
393-25016-10-35 |
— | ||
|
18
|
18
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
19
|
19
437-25134-00-00
Label, Indicator
|
437-25134-00-00 |
— | ||
|
20
|
20
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
21
|
21
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
22
|
22
296-W2536-00-00 Brake Shoe Kit |
296-W2536-00-00 |
from US $23.89 |
||
| replacement | |||||
|
22
|
22
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
22
|
22
10X-W2536-00-00 Brake Shoe Kit |
10X-W2536-00-00 |
from US $21.24 |
||
| replacement | |||||
|
22
|
22
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
23
|
23
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
24
|
24
109-25155-00-00 Lever, Camshaft 1 |
109-25155-00-00 |
US $49.32 |
||
|
25
|
25
90101-06278-00 BoltM5-079 |
90101-06278-00 |
from US $1.54 |
||
|
26
|
26
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
28
|
28
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
28
|
28
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
29
|
29
368-25138-00-00
Gear, Meter
|
368-25138-00-00 |
— | ||
|
30
|
30
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
31
|
31
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
32
|
32
93104-07003-00 Oil Seal, So-TypeM5-079 |
93104-07003-00 |
from US $1.84 |
||
|
33
|
33
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
33
|
33
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
34
|
34
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
35
|
35
999-99021-88-00
Axle, Wheel (353-25181-03-00)
353-25181-03-00 |
999-99021-88-00 |
— | ||
|
36
|
36
90387-10077-00
Collar
|
90387-10077-00 |
— | ||
| replacement | |||||
|
36
|
36
90387-12095-00 Collar |
90387-12095-00 |
from US $5.95 |
||
|
37
|
37
90387-10264-00
Collar
|
90387-10264-00 |
— | ||
|
38
|
38
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.45 |
||
| replacement | |||||
|
38
|
38
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
39
|
39
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
39
|
39
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
40
|
40
90338-18014-00 Plug |
90338-18014-00 |
from US $2.13 |
||
