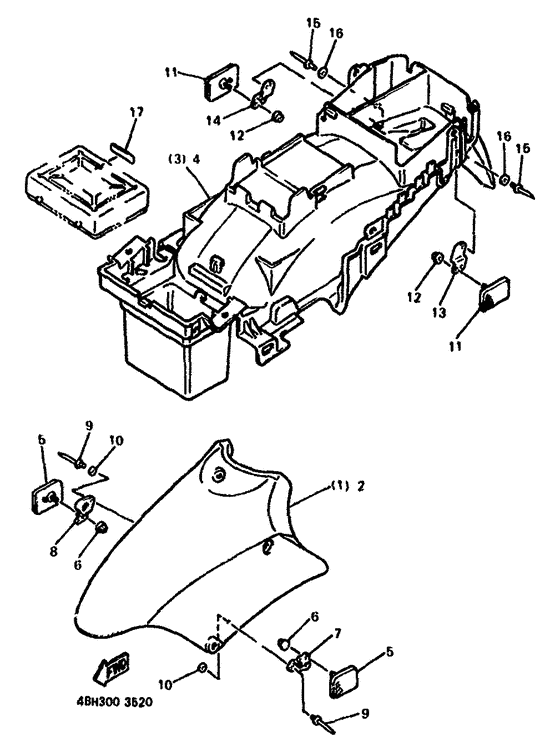

Alternate (CHASSIS; FOR AUSTRIA) Diagram Yamaha GTS1000
- Year
- 1994
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4FV4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
4FV-21511-00-P0
Fender, Front
Ur |
4FV-21511-00-P0 |
— | ||
|
2
|
2
4FV-21511-00-P2
Fender, Front
Ur |
4FV-21511-00-P2 |
— | ||
|
4
|
4
4FV-21629-00-00
Guard, Mud
|
4FV-21629-00-00 |
— | ||
|
5
|
5
23V-85110-00-00 Reflector Assy |
23V-85110-00-00 |
from US $15.30 |
||
|
6
|
6
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
7
|
7
4FV-21587-00-00 Stay 1 |
4FV-21587-00-00 |
US $63.25 |
||
|
8
|
8
4FV-21588-00-00
Stay 2
|
4FV-21588-00-00 |
— | ||
|
9
|
9
90267-40073-00 Rivet, Blind |
90267-40073-00 |
from US $3.26 |
||
| replacement | |||||
|
9
|
9
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
10
|
10
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
10
|
10
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
11
|
11
23V-85110-00-00 Reflector Assy |
23V-85110-00-00 |
from US $15.30 |
||
|
12
|
12
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
13
|
13
2LJ-21689-00-00
Bracket, Rear Stay 2
|
2LJ-21689-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
2LJ-21688-00-00
Bracket, Rear Stay
|
2LJ-21688-00-00 |
— | ||
|
15
|
15
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
16
|
16
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
16
|
16
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
17
|
17
4FV-13843-00-00
Plate1
|
4FV-13843-00-00 |
— | ||
