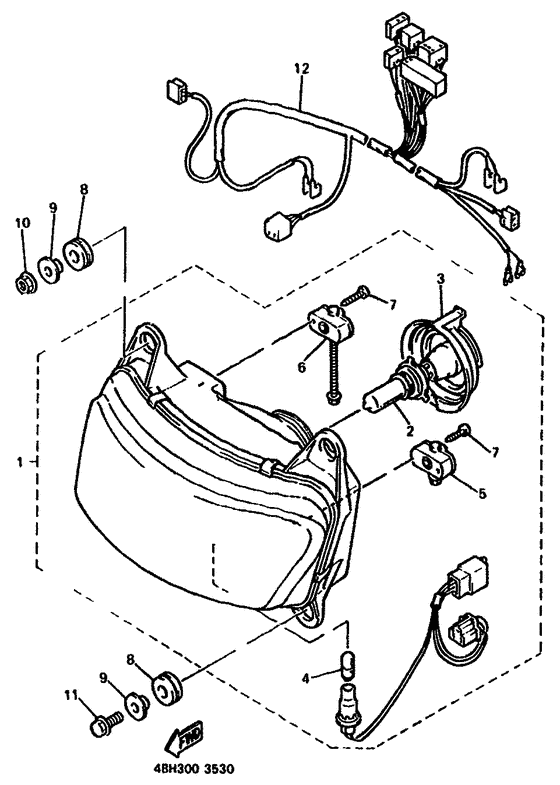

Alternate (HEADLIGHT; FOR SWITZERLAND) Diagram Yamaha GTS1000
- Year
- 1994
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4FV4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-84300-40-00
Headlight Assy
|
4BH-84300-40-00 |
— | ||
|
2
|
2
2F9-84314-00-00 Bulb (12V 60/55W Halogen) |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
2
|
2
5V2-84314-00-XX
Bulb (12V-60/55W)
|
5V2-84314-00-XX |
— | ||
|
2
|
2
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
|
YMC-00903-00-00 |
— | ||
|
2
|
2
5VK-H4314-00-00 Bulb, Headlight |
5VK-H4314-00-00 |
US $45.92 |
||
|
2
|
2
8V0-84314-10-00 Bulb, Headlight |
8V0-84314-10-00 |
from US $45.92 |
||
|
3
|
3
36Y-84397-00-00 Cover, Socket |
36Y-84397-00-00 |
from US $21.82 |
||
|
4
|
4
2JE-84744-00-00 Bulb (12V-5W) |
2JE-84744-00-00 |
from US $2.83 |
||
| replacements | |||||
|
4
|
4
4SV-84347-00-00 Bulb (12V-5W) |
4SV-84347-00-00 |
from US $3.05 |
||
|
4
|
4
1WD-H4744-00-00 Bulb (12V-5W) |
1WD-H4744-00-00 |
from US $6.23 |
||
|
4
|
4
1RC-84347-00-00 Bulb (12V-5W) |
1RC-84347-00-00 |
from US $5.41 |
||
|
4
|
4
1JD-H4347-00-00 Bulb (W3W-12V) |
1JD-H4347-00-00 |
US $4.68 |
||
|
4
|
4
3WW-H4347-00-00
Bulb
|
3WW-H4347-00-00 |
— | ||
|
5
|
5
3LD-8430M-00-00 Gear Unit Assembly |
3LD-8430M-00-00 |
US $30.13 |
||
|
6
|
6
4BH-8430M-00-00
Gear Unit Assembly
|
4BH-8430M-00-00 |
— | ||
|
7
|
7
97706-40616-00 Screw, Tapping |
97706-40616-00 |
from US $1.26 |
||
| replacement | |||||
|
7
|
7
97707-40616-00 Screw, Tapping |
97707-40616-00 |
from US $1.42 |
||
|
8
|
8
90480-20564-00 Grommet |
90480-20564-00 |
from US $3.94 |
||
|
9
|
9
90387-084Y3-00 Collar |
90387-084Y3-00 |
from US $8.10 |
||
|
10
|
10
95706-08500-00 Nut, With Washer |
95706-08500-00 |
from US $0.85 |
||
| replacements | |||||
|
10
|
10
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
10
|
10
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
11
|
11
95816-08025-00 Bolt, Flange |
95816-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
12
|
12
4BH-84359-00-00
Cord, Headlight
|
4BH-84359-00-00 |
— | ||
